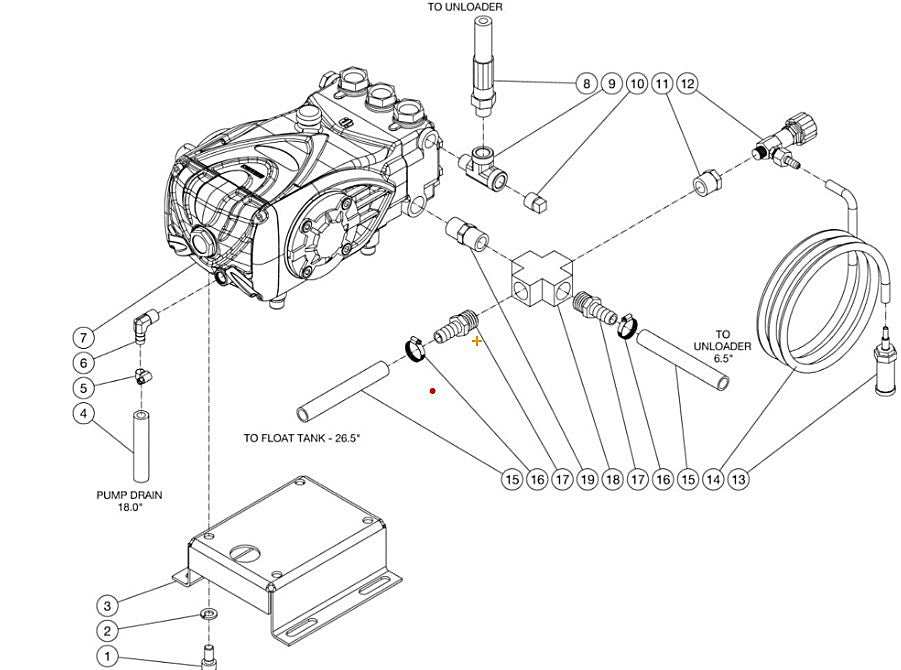

HSE-2504-0M10/0M30, HSE-3004-0M10/0M30, HSE-3504-0M10/0M30 Pump Assembly Parts by Mi-T-M

HSE-2504-0M10/0M30, HSE-3004-0M10/0M30, HSE-3504-0M10/0M30 Pump Assembly Parts by Mi-T-M

  • HSE-2504-0M10/0M30, HSE-3004-0M10/0M30, HSE-3504-0M10/0M30 Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
2
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
3
5-0101A18 Pump Bracket for MiTM Pressure Washers 50101A18
$120.93
4
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
5
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
6
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
7
3-0202 BELTGUARD-PUMP (3-0202 PUMP ONLY) BY MITM
$80.00
8
15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194
$30.64
9
23-0058 Tee 3/8" Street Steel for AC1-HE15-05M Air Compressor by Mi-T-M 230058
$26.21
10
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240034
$4.85
11
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
12
22-0226 Valve/Detergent for AC1-HE02-05M by Mi-T-M 220226
$63.26
13
19-0056 Strainer-Detergent W/Ck Valve for AC1-HE02-05M by Mi-T-M 190056
$19.80
14
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
15
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
16
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
17
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
18
23-0071 Cross 1/2" All F Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230071
$43.47
19
*23-0012 Nipple 1/2M X 1/2M Hex Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230012
$11.07
