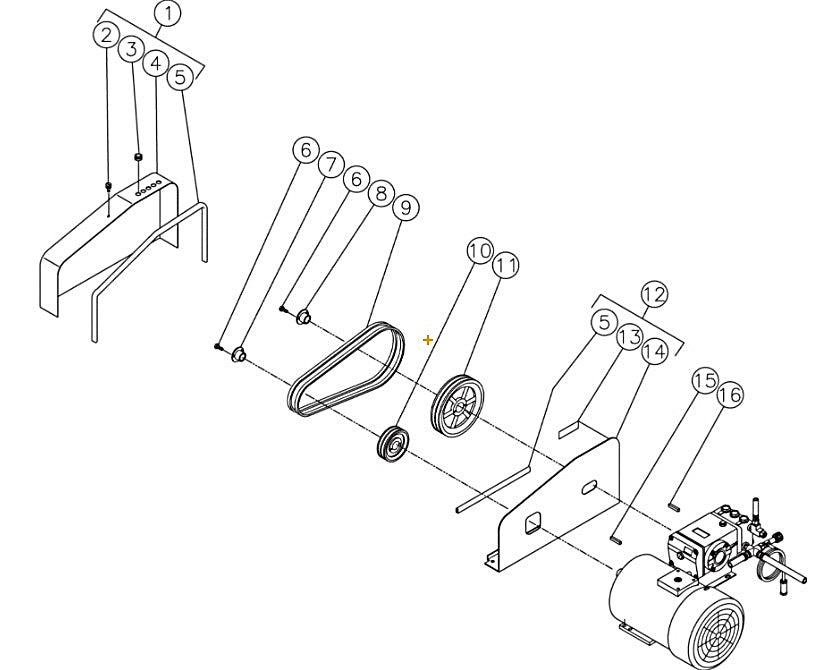

HSE-2504-0M10/0M30, HSE-3004-0M30, HSE-3504-0M10/0M30 Beltguard/Sheave Assembly

HSE-2504-0M10/0M30, HSE-3004-0M30, HSE-3504-0M10/0M30 Beltguard/Sheave Assembly

  • HSE-2504-0M10/0M30, HSE-3004-0M30, HSE-3504-0M10/0M30 Beltguard/Sheave Assembly
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
850-0242 Beltguard Cover Assy for AC1-PH65-08M Air Compressor by Mi-T-M 8500242
$107.97
2
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
3
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
4
6-0064A01 Beltguard Cover for MiTM Pressure Washers 60064A01
$187.11
5
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
6
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
7
*9-0010 Bushing H X 1-1/8 Motor for Mi-T-M CA-2403-0MHB by MiTM 90010
$18.08
7
*9-0008 Bushing H X 1 3/8 Motor for MI-T-M 3004-0ME1 CW Series by MiTM 90008
$18.08
8
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
9
11-0001 Cog Belt Ax43 for AC1-PH65-08M Air Compressor by Mi-T-M 110001
$24.95
9
11-0017 Cog Belt Ax44 for AC1-PH65-20M Air Compressor by Mi-T-M 110017
$37.79
10
10-0065 Sheave 2Ak49H (4.5 Pitch Dia) for AC1-PH65-08M Air Compressor by Mi-T-M 100065
$52.10
10
10-0036 Sheave 2Ak56H for AC1-PH65-20M Air Compressor by Mi-T-M 100036
$94.67
10
10-0041 Sheave 2Ak54H for MI-T-M 3004-0ME1 CW Series by MiTM 100041
$64.45
11
10-0038 Sheave 2Ak94H for AC1-PH65-08M Air Compressor by Mi-T-M 100038
$86.29
12
850-0241 Backplate Assy for AC1-PH65-08M Air Compressor by Mi-T-M 8500241
Call for Price call for price call for price
15
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
16
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Pressure Washers 430078
$36.81
-
34-9012 SAFETY DECAL KIT (INCLUDES 8, 25, 31, 41-42) BY MITM
Call for Price call for price call for price
