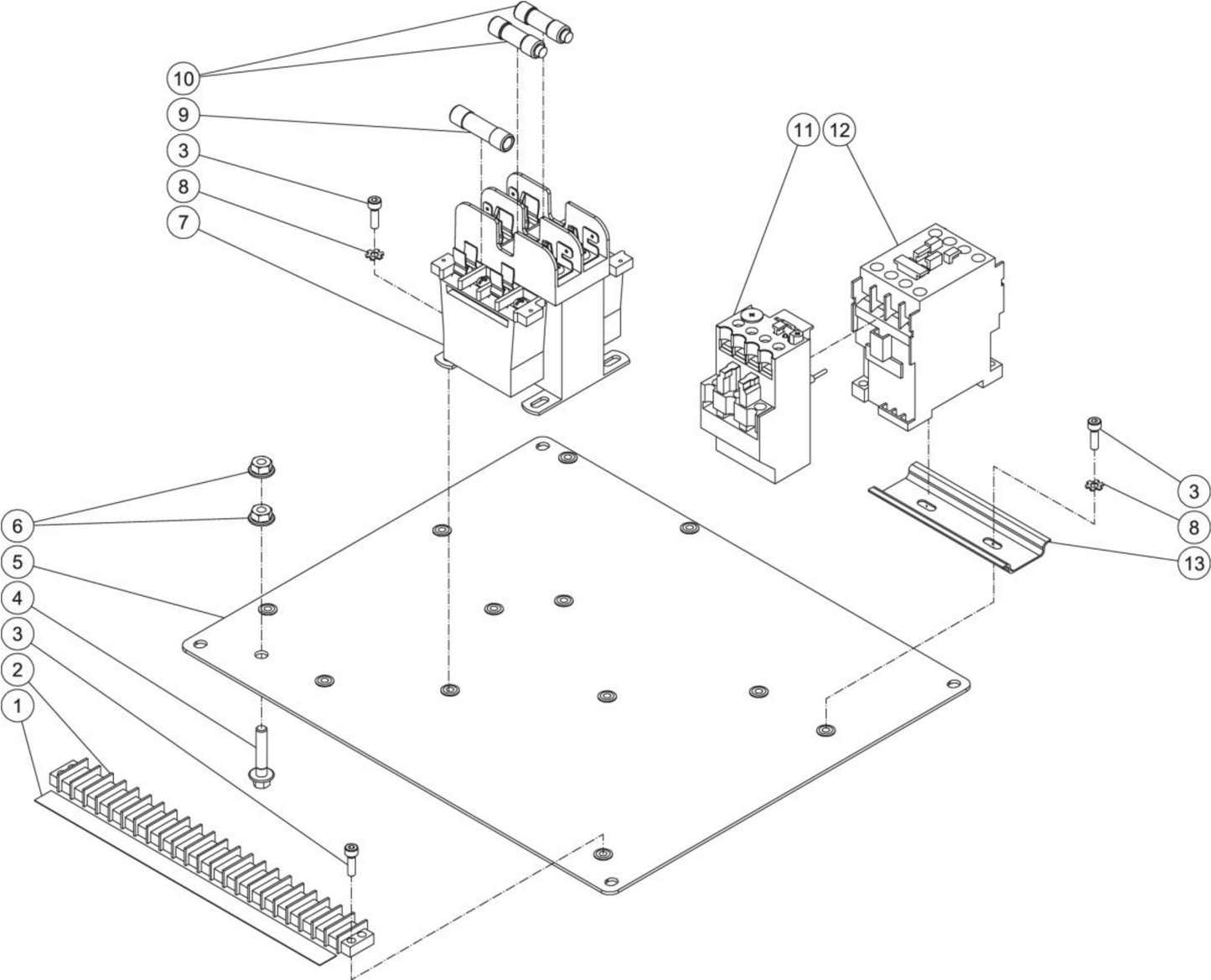

HSE-2504-0M30, HSE-3004-0M30, HSE-3504-0M30 Electric Panel Assembly Parts by Mi-T-M

HSE-2504-0M30, HSE-3004-0M30, HSE-3504-0M30 Electric Panel Assembly Parts by Mi-T-M

  • HSE-2504-0M30, HSE-3004-0M30, HSE-3504-0M30 Electric Panel Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
32-0463 Terminal Strip 20 Amp 22 Pole for AC1-PH65-08M Air Compressor by Mi-T-M 320463
$26.77
3
27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
4
27-8898 Bolt for MiTM Air Compressors by MiTM 278898
$4.43
6
30-3022 Hex Nut for MiTM Pressure Washers 303022
$7.65
7
32-0313 Transformer-200-480V To 24Volt for AC1-PH65-08M Air Compressor by Mi-T-M 320313
Call for Price call for price call for price
8
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
9
32-0471 Fuse 0.6A for AC1-PH65-08M Air Compressor by Mi-T-M 320471
$33.74
10
32-0467 Fuse 0.5A for AC1-PH65-08M Air Compressor by Mi-T-M 320467
$29.14
11
32-0483 Overload Relay (230V) for MiTM Pressure Washers 320483
Call for Price call for price call for price
11
32-0484 Overload Relay (HHS-2004-0E2G/A) BY MITM
Call for Price call for price call for price
12
32-0477 Contactor 23A 4 Pole for AC1-PH65-08M Air Compressor by Mi-T-M 320477
Call for Price call for price call for price
12
32-0478 Contactor 30A 3 Pole W/Aux for AC1-PR06-08M Air Compressor by Mi-T-M 320478
$175.82
13
32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316
$22.49
13
32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316
$22.49
5
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
