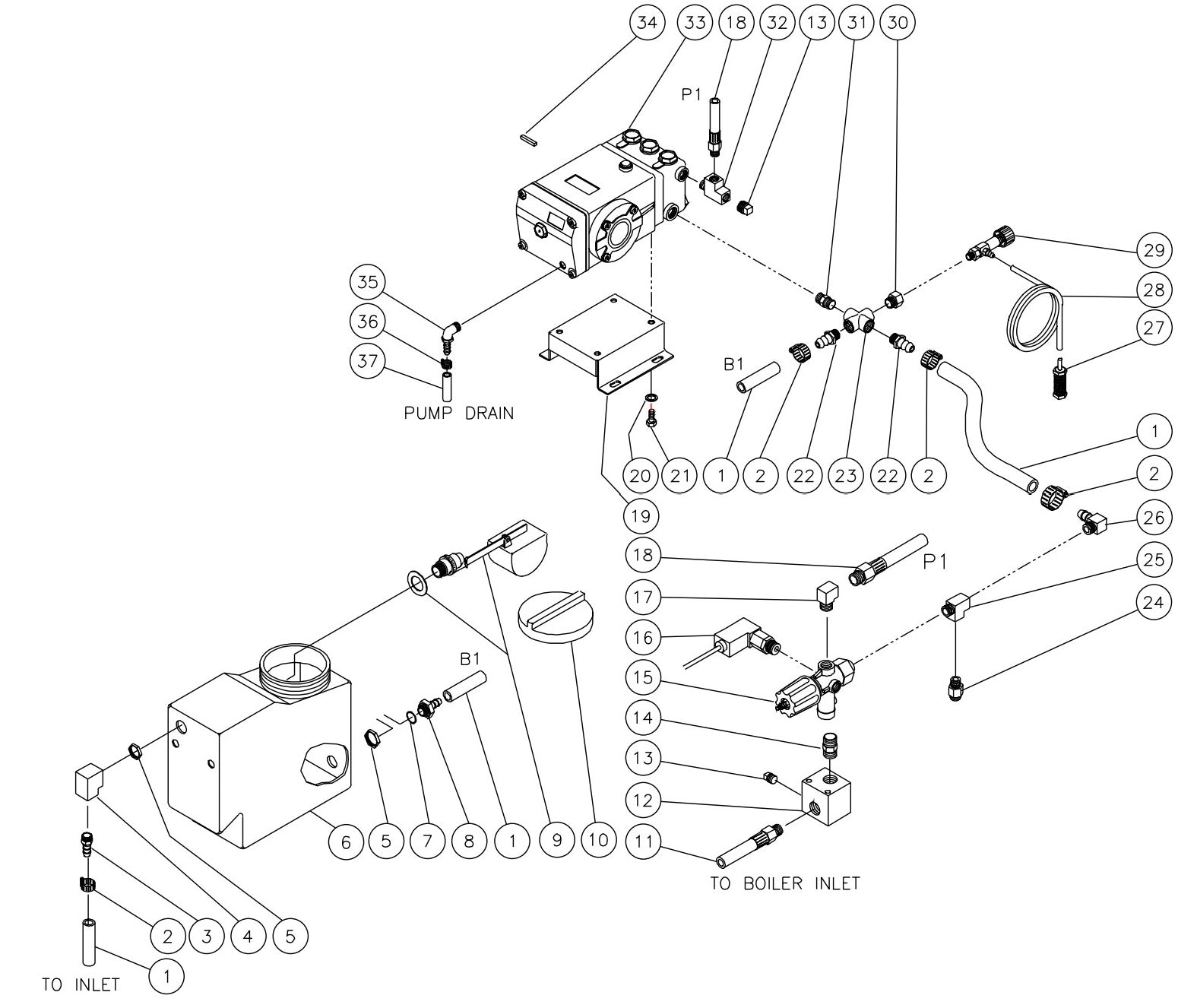

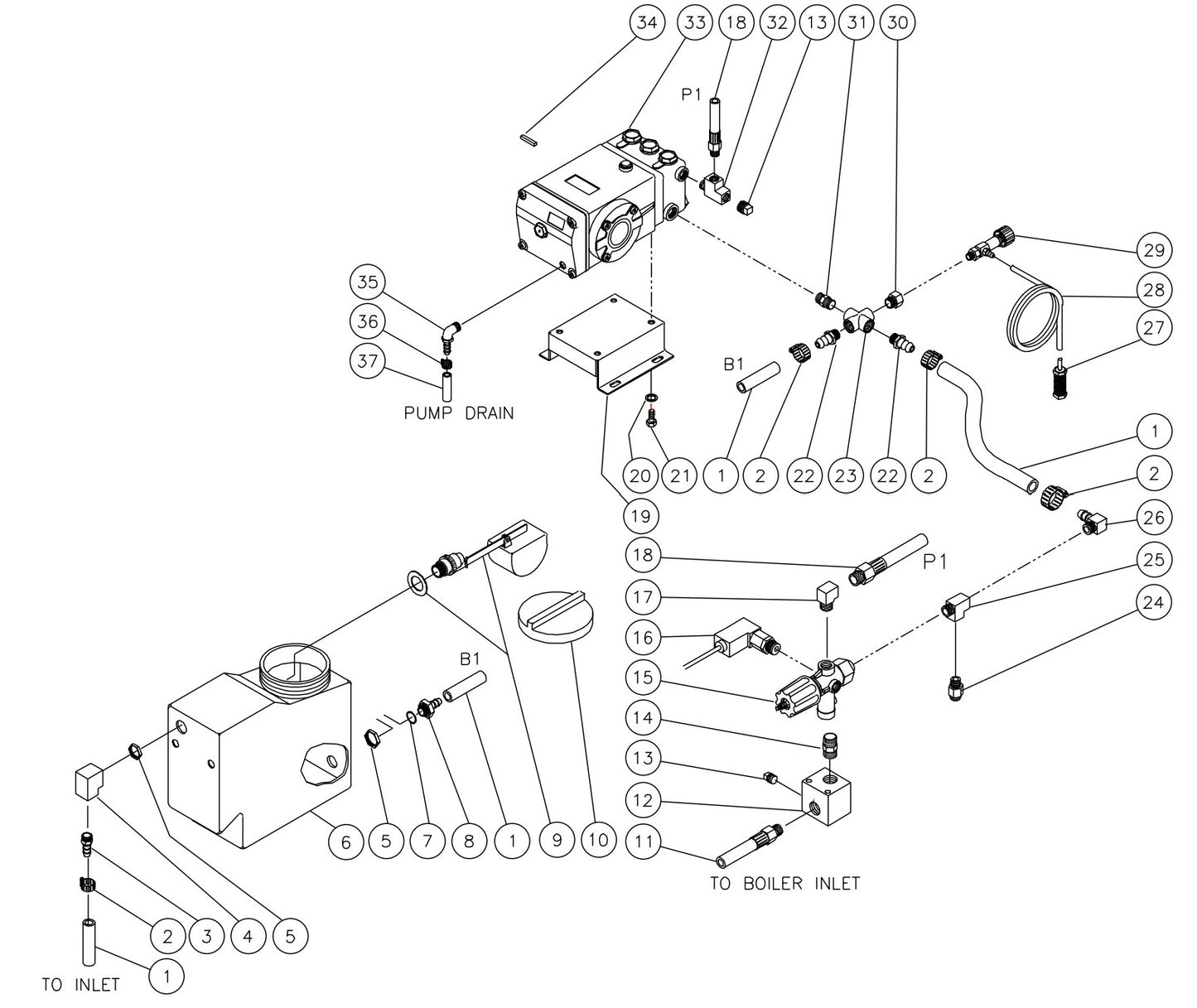

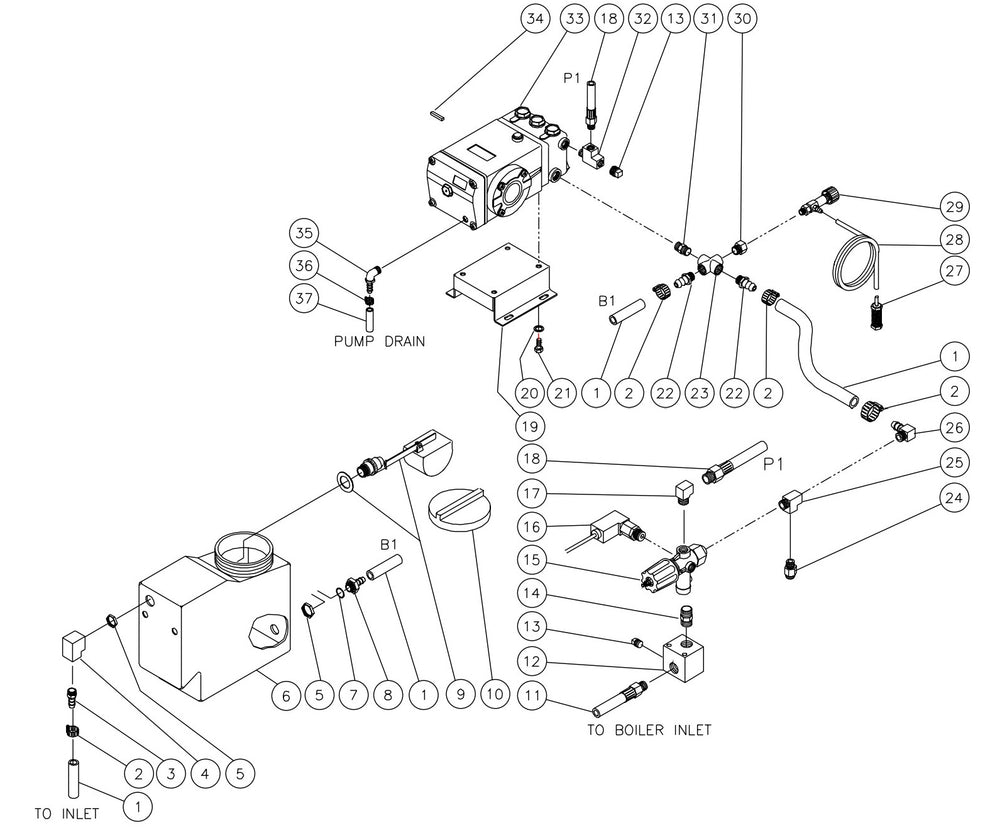

HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504 Float Tank//Pump/Unloader Assembly Parts by Mi-T-M

HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504 Float Tank//Pump/Unloader Assembly Parts by Mi-T-M

  • HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504 Float Tank//Pump/Unloader Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
4
23-0307 Elbow 3/8Fnpt for AC1-PE15-08M1 Air Compressor by Mi-T-M 230307
$21.24
6
12-0066 FLOAT TANK BY MITM
$120.29
8
23-0351 Hose Barb W/23-0318 & 23-0322 for AC1-PH65-08M Air Compressor by Mi-T-M 230351
$27.36
10
39-0100 Lid Plastic for AC1-PE02-20M Air Compressor by Mi-T-M 390100
$29.42
11
15-0192 Hose 3/8X36.5" 4000Psi R2 Blac for AC1-PH65-08M Air Compressor by Mi-T-M 150192
$38.95
12
51-0022 Manifold Block for AC1-PE15-08M Air Compressor by Mi-T-M 510022
$59.92
13
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240034
$4.85
14
24-0024 Nipple 1/2Mpx3/8Mp Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240024
$12.52
19
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
21
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
23
22-0071 CROSS BY MITM
Call for Price call for price call for price
24
22-0208 Heat Dump Valve for MiTM Pressure Washers 220208
$45.96
25
23-0127 Tee 1/4M X 1/4F X 1/4F Street for AC1-HE15-05M Air Compressor by Mi-T-M 230127
$16.37
30
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
31
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
32
23-0058 Tee 3/8" Street Steel for AC1-HE15-05M Air Compressor by Mi-T-M 230058
$26.21
33
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
34
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
35
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
36
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
