HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504 (sn:0-22664), (sn:22665-14999999), (sn:15045001-15047915), (sn:15006772-15045000), (sn:15006098-15045000) Frame Assembly Parts by Mi-T-M

HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504 (sn:0-22664), (sn:22665-14999999), (sn:15045001-15047915), (sn:15006772-15045000), (sn:15006098-15045000) Frame Assembly Parts by Mi-T-M

  • HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504 (sn:0-22664), (sn:22665-14999999), (sn:15045001-15047915), (sn:15006772-15045000), (sn:15006098-15045000) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
23-0005 Barb 1/2Mp X 1/2 Lock Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230005
$12.39
3
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
5
23-0344 Elbow 45 Deg 1/2Mnpt X 1/2Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 230344
Call for Price call for price call for price
6
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
7
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
8
19-0003 WATER FILTER ASSEMBLY (INCLUDES 9-12) BY MITM
$35.37
9
19-0021 STRAINER BODY BY MITM
$35.37
11
19-0023 Filter 304Ss Mesh Screen for AC1-PH65-08M Air Compressor by Mi-T-M 190023
$9.43
12
19-0022 Filter Cap for AC1-PH65-08M Air Compressor by Mi-T-M 190022
$10.35
13
5-0138A01 FRAME ASSEMBLY BY MITM
$1,173.63
14
14-0072 PNEUMATIC TIRE BY MITM
Call for Price call for price call for price
15
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
16
27-8040 Bolt BY MITM
$1.16
17
15-0190 Fuel Hose 18.75" 3000Psi Black for AC1-PH65-08M Air Compressor by Mi-T-M 150190
Call for Price call for price call for price
19
850-0243 FUEL TANK ASSEMBLY BY MITM
Call for Price call for price call for price
21
27-8922 Screw W/Electrical Box for MiTM Pressure Washers 278922
$7.65
26
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
28
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-PE02-08M1 Air Compressor by Mi-T-M 240034
$4.85
29
32-0465 Bushing/Cord for Mi-T-M CA-4004-0MHB by MiTM 320465
$2.85
30
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
31
23-0073 Barb 3/8Mp X 3/8 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230073
$7.97
32
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
34
30-0161 Locknut for MiTM Pressure Washers by MiTM 300161
$4.49
35
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
36
27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
37
2-0090 BOLT BY MITM
$1,383.42
38
2-0091 Motor 6Hp 208-230/460V 3 Phase for AC1-PH65-08M Air Compressor by Mi-T-M 20091
$1,256.97
38
2-0092 Motor 8 Hp 208-230V 1 Phase for AC1-PH65-20M Air Compressor by Mi-T-M 20092
$2,102.76
38
2-0093 Motor 8Hp 208-230/460V 3 Phase for AC1-PR06-08M Air Compressor by Mi-T-M 20093
$318.95
38
2-0094 Motor 10Hp 230V 1Ph Tefc for MiTM Pressure Washers 20094
$3,738.81
38
2-0095 Motor 10Hp 208-230/460V 3Phase for MiTM Pressure Washers 20095
$4,248.95
38
27-8923 Bolt for MiTM Pressure Washers 278923
$7.49
41
30-3023 Locknut BY MITM
$0.68
42
32-0486 Conduit 3/4" Black for AC1-PH65-08M Air Compressor by Mi-T-M 320486
$8.14
42
32-0488 Conduit Straight End 3/4" for AC1-PH65-08M Air Compressor by Mi-T-M 320488
$9.24
42
30-3030 Nut for MiTM Pressure Washers 303030
$5.93
44
62-0057 Knob W/Stud M6-1.00P X 16Mm for AC1-PH65-08M Air Compressor by Mi-T-M 620057
$4.85
46
28-0001 Washer for MiTM Pressure Washers 280001
$5.93
47
850-0244 HOOD ASSEMBLY- BLUE BY MITM
$189.81
48
850-0181 Gun/Wand Assy for AC1-HE15-05M Air Compressor by Mi-T-M 8500181
$82.85
49
15-0166 Hose 3/8X50' 4500Psi R2 Black for AC1-PE03-20M Air Compressor by Mi-T-M 150166
$183.86
50
17-0035 Screw Connect M22 X 3/8Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 170035
$25.87
51
850-0185 Dual Lance Assembly (Includes 22-42) 36" BY MITM
$101.79
52
850-0180 Dual Lance Assembly (Includes 22-42) 48" BY MITM
Call for Price call for price call for price
52
18-0054 Nozzle 1504 1/4 Meg for AC1-PE15-20M1 Air Compressor by Mi-T-M 180054
$13.23
53
18-0254 Nozzle 15035 1/4 Meg for AC1-PH55-20M Air Compressor by Mi-T-M 180254
$13.23
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

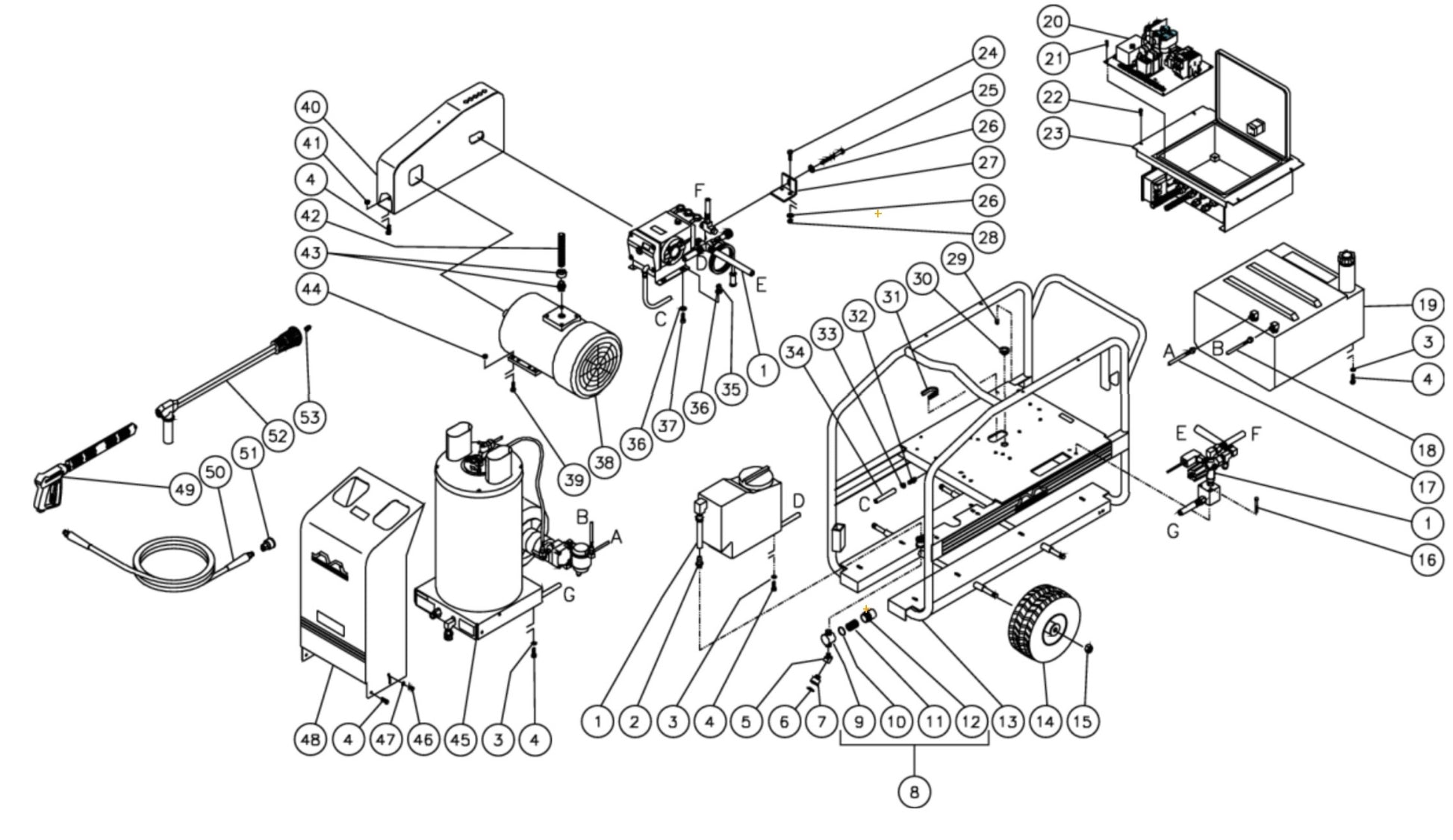

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
