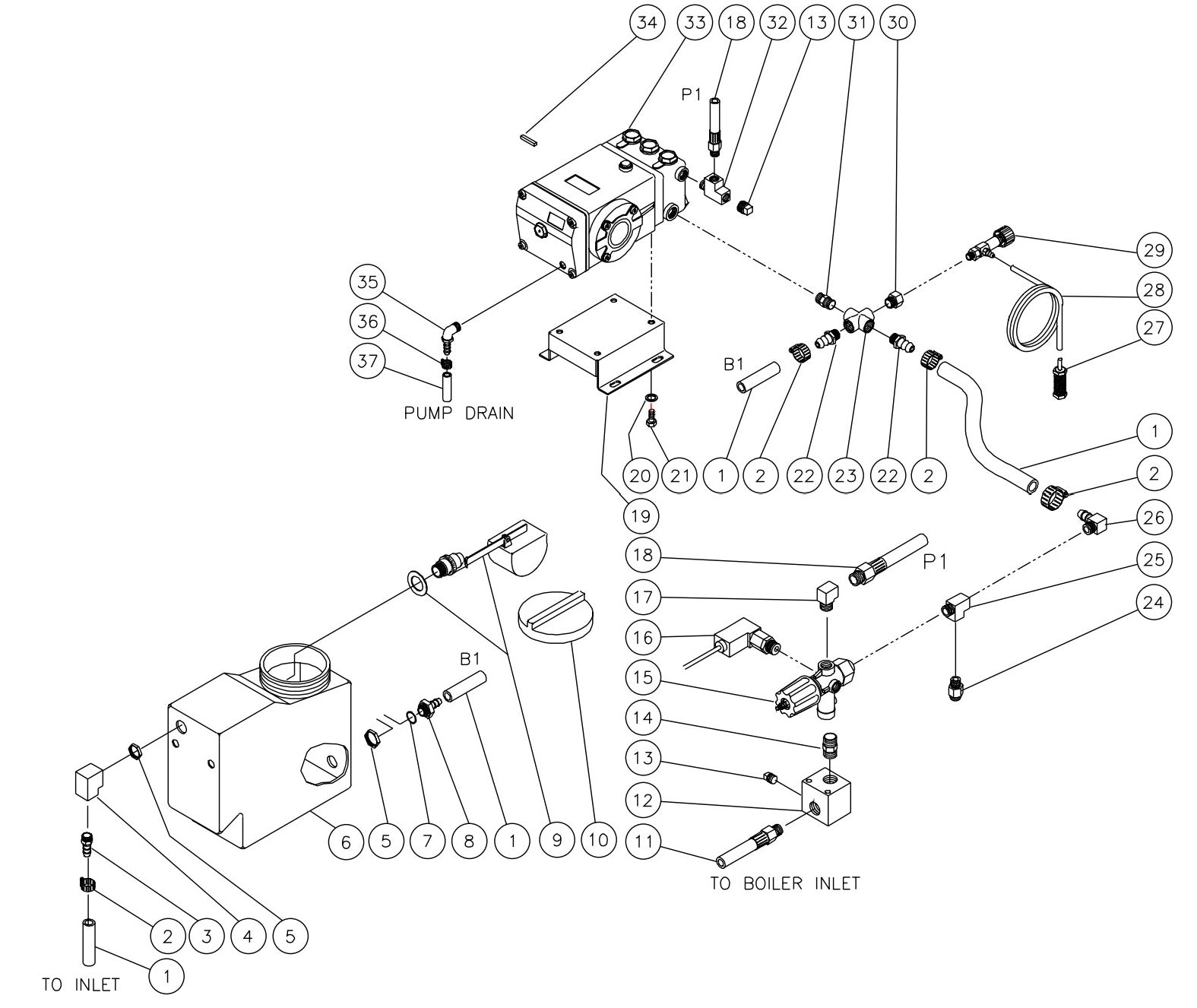

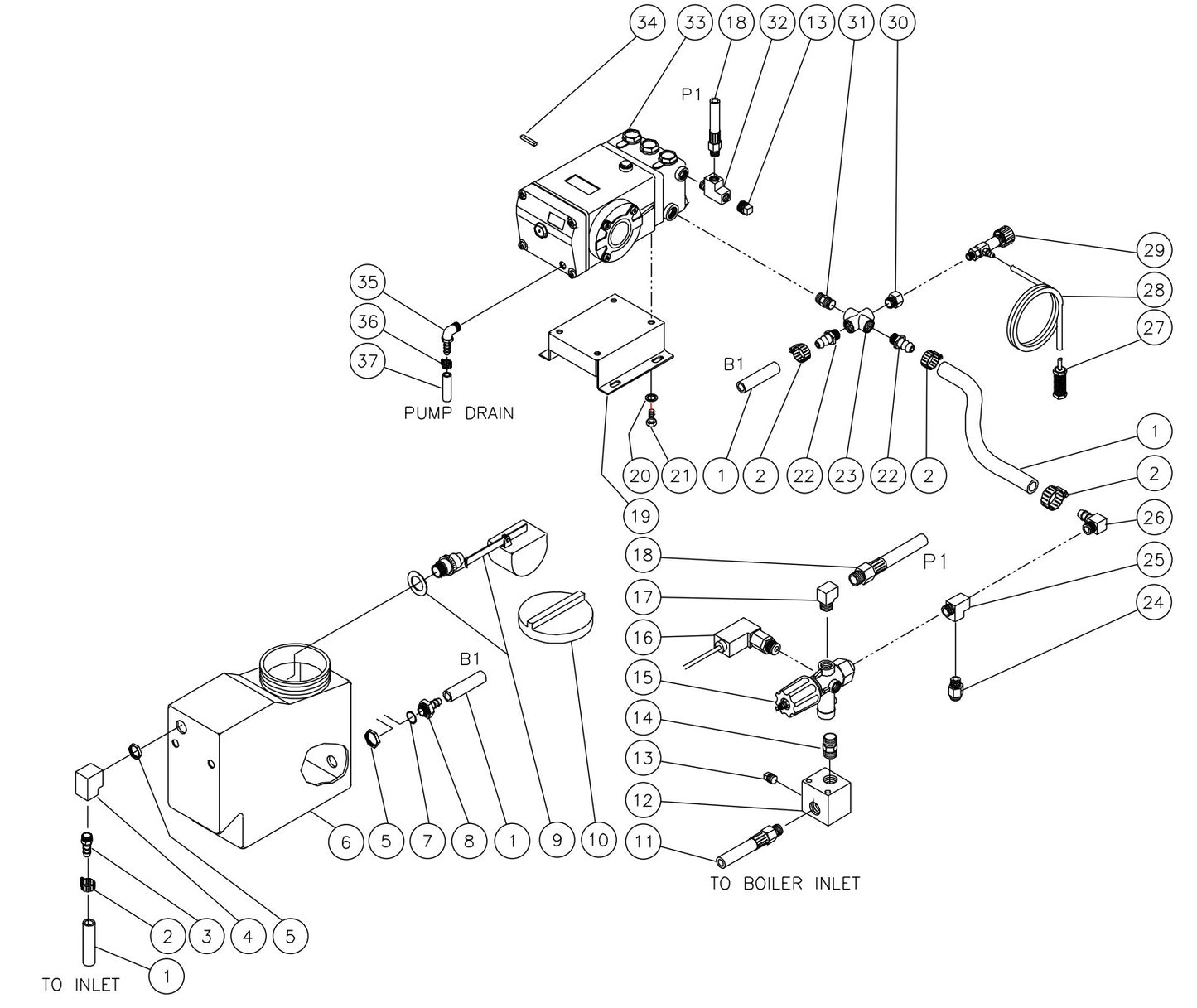

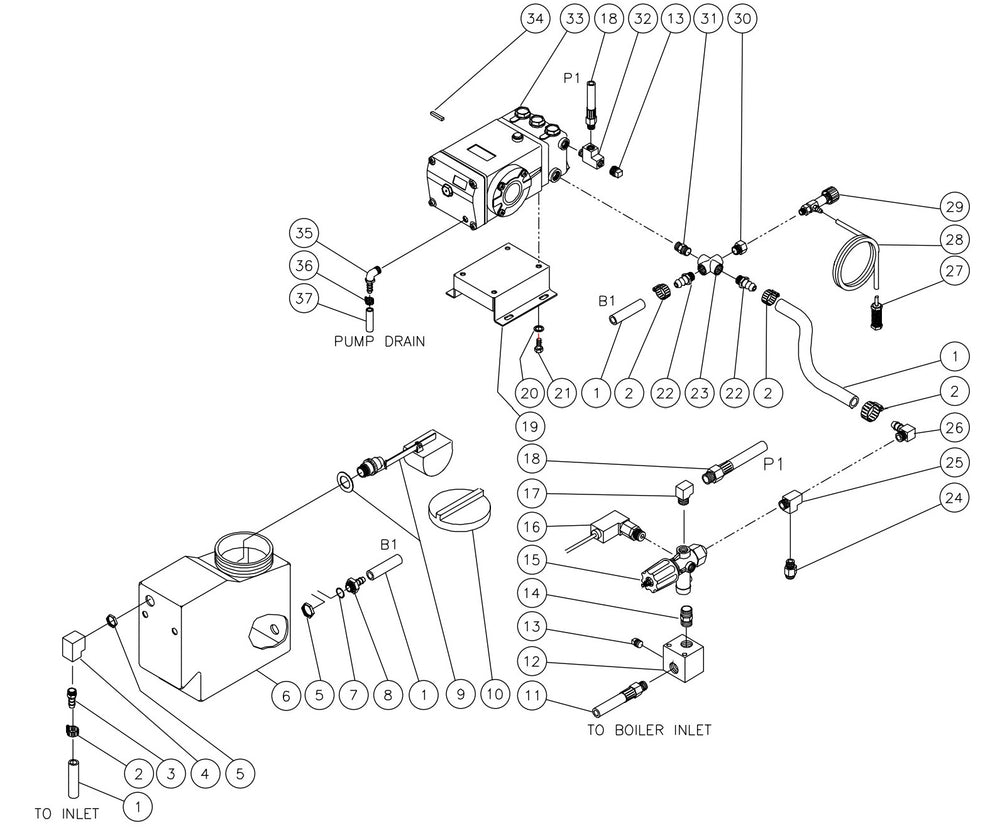

HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504 (sn:15045001-15047915) Float Tank/Pump/Unloader Assembly Parts by Mi-T-M

HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504 (sn:15045001-15047915) Float Tank/Pump/Unloader Assembly Parts by Mi-T-M

  • HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504 (sn:15045001-15047915) Float Tank//Pump/Unloader Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
4
23-0307 Elbow 3/8Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 230307
$21.24
8
23-0351 Hose Barb W/23-0318 & 23-0322 for AC1-PH65-08M Air Compressor by Mi-T-M 230351
$27.36
10
39-0100 Lid Plastic for AC1-PE02-20M Air Compressor by Mi-T-M 390100
$29.42
11
15-0192 Hose 3/8X36.5" 4000Psi R2 Blac for AC1-PH65-08M Air Compressor by Mi-T-M 150192
$38.95
12
51-0022 Manifold Block for AC1-PE15-08M Air Compressor by Mi-T-M 510022
$59.92
13
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240034
$4.85
14
24-0024 Nipple 1/2Mpx3/8Mp Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240024
$12.52
19
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
21
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
24
22-0408 Thermal Relief Valve-1/4" 140F for AC1-PE03-20M Air Compressor by Mi-T-M 220408
Call for Price call for price call for price
25
23-0127 Tee 1/4M X 1/4F X 1/4F Street for AC1-HE15-05M Air Compressor by Mi-T-M 230127
$16.37
30
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
31
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
32
23-0058 Tee 3/8" Street Steel for AC1-HE15-05M Air Compressor by Mi-T-M 230058
$26.21
33
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
34
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
35
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
36
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
1
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
2
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
3
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
5
23-0138 Locknut- 3/8"Jam, Brass for AC1-HE02-05M by Mi-T-M 230138
$11.95
6
12-0066 FLOAT TANK BY MITM
$120.29
7
25-0427 O-Ring 1/8 X .734 for AC1-HE02-05M by Mi-T-M 250427
$1.99
9
850-0238 Float Valve Modified for AC1-HE02-05M by Mi-T-M 8500238
$96.53
15
850-0252 Unloader Assy for AC1-HE02-05M by Mi-T-M 8500252
$131.04
16
22-0171 Pressure Switch 1/4Bsp 15 Bar for AC1-HE02-05M by Mi-T-M 220171
$77.70
17
23-0034 Elbow 3/8M X 3/8F 90 Str Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230034
$19.33
18
15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194
$30.64
20
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
22
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
23
22-0071 CROSS BY MITM
Call for Price call for price call for price
26
23-0119 Elbow 1/4M 1/2 Barb for AC1-HE02-05M by Mi-T-M 230119
$20.10
27
19-0056 Strainer-Detergent W/Ck Valve for AC1-HE02-05M by Mi-T-M 190056
$19.80
28
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
29
22-0226 Valve/Detergent for AC1-HE02-05M by Mi-T-M 220226
$63.26
37
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
