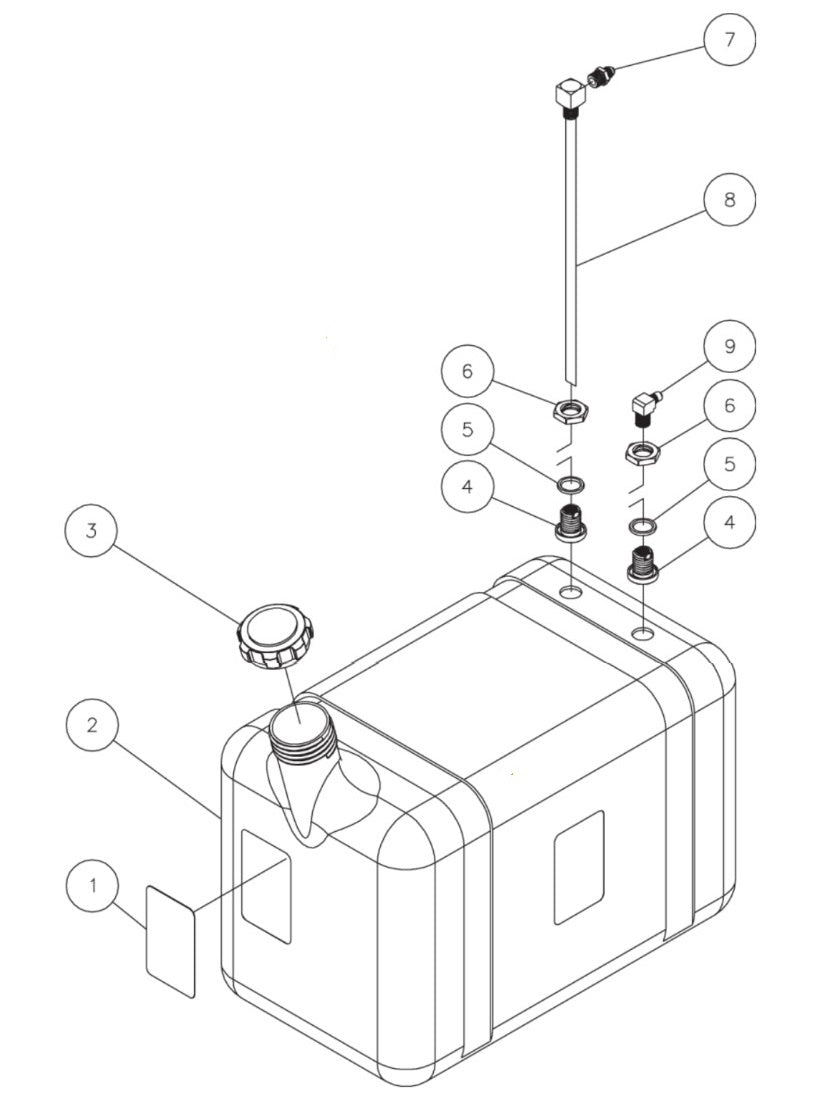

HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504, DH-4004 Fuel Tank Assembly Parts by Mi-T-M

HSE-2504, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504, DH-4004 Fuel Tank Assembly Parts by Mi-T-M

  • HSE-25040, HSE-3004, HSE-3504, DH-2504, DH-3004, DH-3504, DH-4004 Fuel Tank Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
12-0126 Fuel Tank BY MITM
$81.41
3
12-0033 Vented Fuel Cap BY MITM
$14.40
-
850-0290 Fuel Tank Assembly for AC1-PH65-08M Air Compressor by Mi-T-M 8500290
$273.25
-
34-9012 SAFETY DECAL KIT (INCLUDES 8, 25, 31, 41-42) BY MITM
Call for Price call for price call for price
4
23-0408 Bulkhead Fitting/Aluminum for AC1-HE02-05M by Mi-T-M 230408
$18.80
5
25-0427 O-Ring 1/8 X .734 for AC1-HE02-05M by Mi-T-M 250427
$1.99
6
23-0409 Nut/Aluminum for AC1-HE02-05M by Mi-T-M 230409
$9.06
7
23-0247 Union 1/4Mnpt X 1/4 Flare for AC1-HE02-05M by Mi-T-M 230247
$5.99
8
33-0352 Fuel Pick-Up for AC1-HE02-05M by Mi-T-M 330352
$36.04
9
23-0237 Elbow 1/4M X 1/4 45Deg Flare for AC1-HE02-05M by Mi-T-M 230237
$12.39
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
