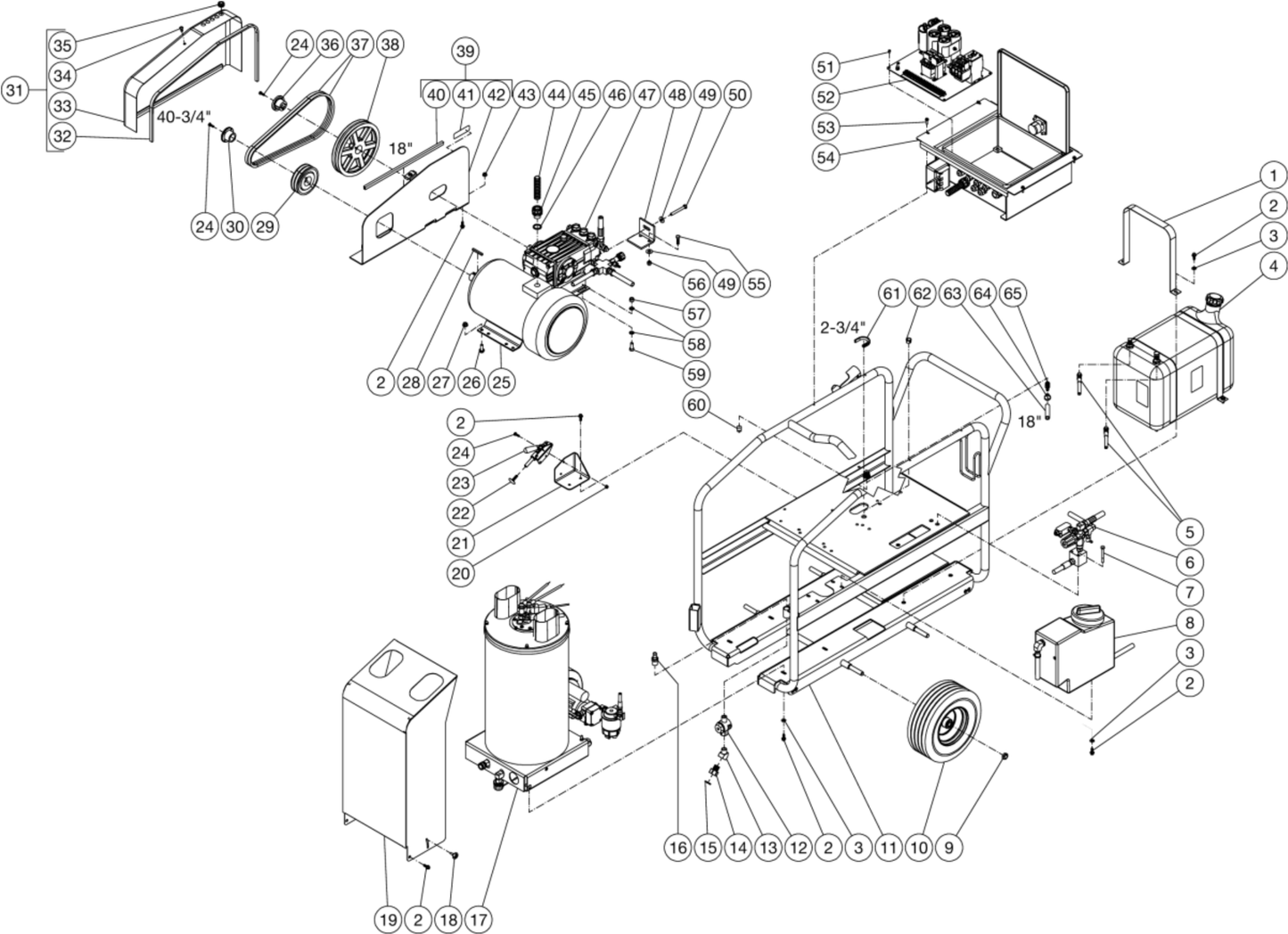

HSE-3004-0M10 (sn:15047916-15143763) Frame Assembly Parts by Mi-T-M

HSE-3004-0M10 (sn:15047916-15143763) Frame Assembly Parts by Mi-T-M

  • HSE-3004-0M10 (sn:15047916-15143763) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
20-0579A18 FUEL TANK STRAP BY MITM
$15.53
2
27-9524 Bolt for ABS Air Compressor by Mi-T-M 279524
$1.99
3
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
4
850-0303 Fuel Tank Assy Hhs for AC1-HE02-05M by Mi-T-M 8500303
$219.30
5
15-0190 Fuel Hose 18.75" 3000Psi Black for AC1-PH65-08M Air Compressor by Mi-T-M 150190
Call for Price call for price call for price
7
27-8040 Bolt BY MITM
$1.16
9
30-0117 Nut for MiTM Air Compressors by MiTM 300117
$4.43
10
14-0150 Wheel-13" White-Super Duty for AC1-HE02-05M by Mi-T-M 140150
Call for Price call for price call for price
11
5-0138A18 FRAME BY MITM
$1,173.63
12
19-0096 Filter/Water for AC1-PH65-20M Air Compressor by Mi-T-M 190096
$63.75
13
23-0344 Elbow 45 Deg 1/2Mnpt X 1/2Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 230344
Call for Price call for price call for price
14
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
15
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
16
23-0005 Barb 1/2Mp X 1/2 Lock Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230005
$12.39
18
62-0057 Knob W/Stud M6-1.00P X 16Mm for AC1-PH65-08M Air Compressor by Mi-T-M 620057
$4.85
19
20-0379A18 HOOD BY MITM
$155.12
20
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
21
20-1357A18 BRAKE BRACKET BY MITM
$16.28
22
27-9550 BOLT BY MITM
$2.55
23
33-0400 NUT BY MITM
$60.02
24
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
25
2-0090 BOLT BY MITM
$1,383.42
25
2-0091 Motor 6Hp 208-230/460V 3 Phase for AC1-PH65-08M Air Compressor by Mi-T-M 20091
$1,256.97
25
2-0092 Motor 8 Hp 208-230V 1 Phase for AC1-PH65-20M Air Compressor by Mi-T-M 20092
$2,102.76
25
2-0093 Motor 8Hp 208-230/460V 3 Phase for AC1-PR06-08M Air Compressor by Mi-T-M 20093
$318.95
25
2-0094 Motor 10Hp 230V 1Ph Tefc for MiTM Pressure Washers 20094
$3,738.81
25
2-0095 Motor 10Hp 208-230/460V 3Phase for MiTM Pressure Washers 20095
$4,248.95
26
27-8923 Bolt for MiTM Pressure Washers 278923
$7.49
27
30-3030 Nut for MiTM Pressure Washers 303030
$5.93
28
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
28
43-0174 Key for MiTM Pressure Washers 430174
$78.33
29
10-0065 Sheave 2Ak49H (4.5 Pitch Dia) for AC1-PH65-08M Air Compressor by Mi-T-M 100065
$52.10
29
10-0036 Sheave 2Ak56H for AC1-PH65-20M Air Compressor by Mi-T-M 100036
$94.67
29
10-0041 Sheave 2Ak54H for MI-T-M 3004-0ME1 CW Series by MiTM 100041
$64.45
30
*9-0010 Bushing H X 1-1/8 Motor for Mi-T-M CA-2403-0MHB by MiTM 90010
$18.08
30
*9-0008 Bushing H X 1 3/8 Motor for MI-T-M 3004-0ME1 CW Series by MiTM 90008
$18.08
31
850-0447 BELTGUARD COVER ASSEMBLY (33-36) BY MITM
$84.11
32
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
40
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
61
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
34
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
35
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
36
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
37
11-0001 Cog Belt Ax43 for AC1-PH65-08M Air Compressor by Mi-T-M 110001
$24.95
37
11-0017 Cog Belt Ax44 for AC1-PH65-20M Air Compressor by Mi-T-M 110017
$37.79
38
10-0038 Sheave 2Ak94H for AC1-PH65-08M Air Compressor by Mi-T-M 100038
$86.29
39
850-0241 Backplate Assy for AC1-PH65-08M Air Compressor by Mi-T-M 8500241
Call for Price call for price call for price
43
30-3023 Locknut BY MITM
$0.68
44
32-0486 Conduit 3/4" Black for AC1-PH65-08M Air Compressor by Mi-T-M 320486
$8.14
44
32-0486 Conduit 3/4" Black for AC1-PH65-08M Air Compressor by Mi-T-M 320486
$8.14
45
32-0488 Conduit Straight End 3/4" for AC1-PH65-08M Air Compressor by Mi-T-M 320488
$9.24
46
26-0314 Gasket-3/4 Npt Conduit Fitting for AC1-PH65-08M Air Compressor by Mi-T-M 260314
$4.85
48
13-0003A18 Bracket for MiTM Pressure Washers 130003A18
$60.57
49
28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
50
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
51
27-8922 Screw W/Electrical Box for MiTM Pressure Washers 278922
$7.65
55
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
56
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
57
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
58
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
59
27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
60
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240034
$4.85
62
32-0465 Bushing/Cord for AC1-PH65-08M Air Compressor by Mi-T-M 320465
$2.85
63
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
64
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
65
23-0073 Barb 3/8Mp X 3/8 Hose Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230073
$7.97
53
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
