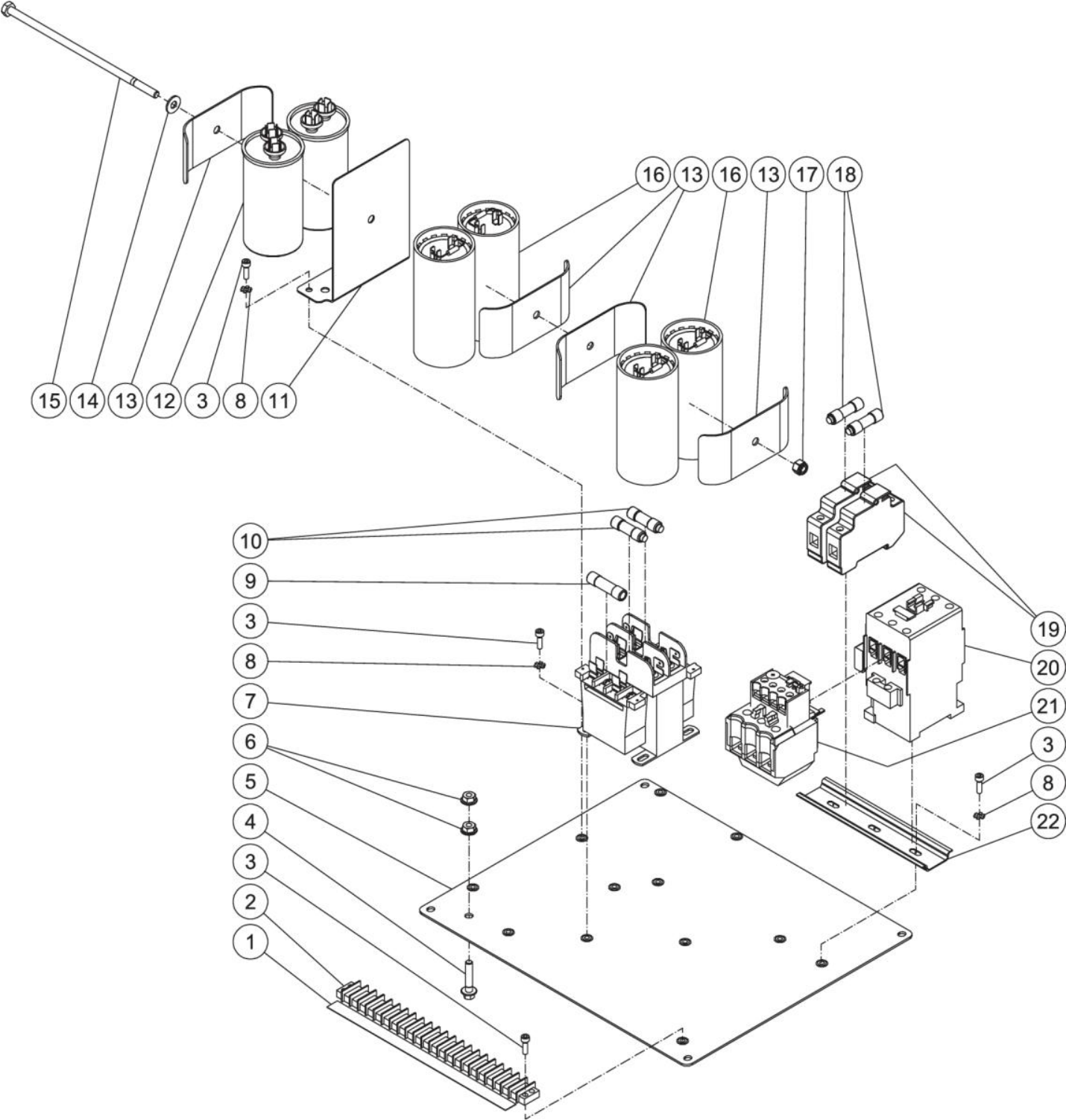

HSE-3504-0M10 (sn:22665-14999999), (sn:15045001-15047915), (sn:15001409-15006097), (sn:15000000-15001408), (sn:0-22664), (sn:15006098-15045000) Electric Panel Assembly Parts by Mi-T-M

HSE-3504-0M10 (sn:22665-14999999), (sn:15045001-15047915), (sn:15001409-15006097), (sn:15000000-15001408), (sn:0-22664), (sn:15006098-15045000) Electric Panel Assembly Parts by Mi-T-M

  • HSE-3504-0M10 (sn:22665-14999999), (sn:15045001-15047915), (sn:15001409-15006097), (sn:15000000-15001408), (sn:0-22664), (sn:15006098-15045000) Electric Panel Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
32-0463 Terminal Strip 20 Amp 22 Pole for AC1-PH65-08M Air Compressor by Mi-T-M 320463
$26.77
3
27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
4
27-8898 Bolt for MiTM Air Compressors by MiTM 278898
$4.43
6
30-3022 Hex Nut for MiTM Pressure Washers 303022
$7.65
7
32-0313 Transformer-200-480V To 24Volt for AC1-PH65-08M Air Compressor by Mi-T-M 320313
Call for Price call for price call for price
8
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
9
32-0471 Fuse 0.6A for AC1-PH65-08M Air Compressor by Mi-T-M 320471
$33.74
10
32-0467 Fuse 0.5A for AC1-PH65-08M Air Compressor by Mi-T-M 320467
$29.14
12
32-0520 Capacitor Run 8Hp for AC1-PH65-20M Air Compressor by Mi-T-M 320520
$234.36
12
32-0518 Capacitor Run 6Hp for AC1-PH65-08M Air Compressor by Mi-T-M 320518
$136.97
12
32-0519 Capacitor for MiTM Pressure Washers 320519
$342.63
13
20-0467 Capacitor Clamp for MiTM Pressure Washers 200467
$122.84
13
20-0467 Capacitor Clamp for MiTM Pressure Washers 200467
$122.84
14
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
14
28-0001 Washer for MiTM Pressure Washers 280001
$5.93
15
27-0759 Bolt for MiTM Pressure Washers 270759
$55.38
16
32-0517 Capacitor Start 8Hp for AC1-PH65-20M Air Compressor by Mi-T-M 320517
$234.36
16
32-0516 Capacitor-Start 6 To 10 Hp for AC1-PH65-08M Air Compressor by Mi-T-M 320516
$219.18
17
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
17
30-0154 Locknut for MiTM Pressure Washers 300154
$5.93
18
32-0470 Fuse 5A for AC1-PH65-20M Air Compressor by Mi-T-M 320470
$43.71
19
32-0473 Fuse Holder Enclosed for AC1-PH65-20M Air Compressor by Mi-T-M 320473
$52.25
20
32-0479 Contactor 43A 3 Pole W/Aux for AC1-PH65-08M Air Compressor by Mi-T-M 320479
$140.80
20
32-0480 CONTACTOR (3005-0E8G) BY MITM
$255.09
21
32-0485 Overload Relay 35-47 for AC1-PH65-20M Air Compressor by Mi-T-M 320485
$150.05
21
32-0484 Overload Relay (HHS-2004-0E2G/A) BY MITM
Call for Price call for price call for price
21
32-0490 Overload Relay 45-60A for MiTM Pressure Washers 320490
$372.38
22
32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316
$22.49
22
32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316
$22.49
5
Call for Price call for price call for price
11
Call for Price call for price call for price
15
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
