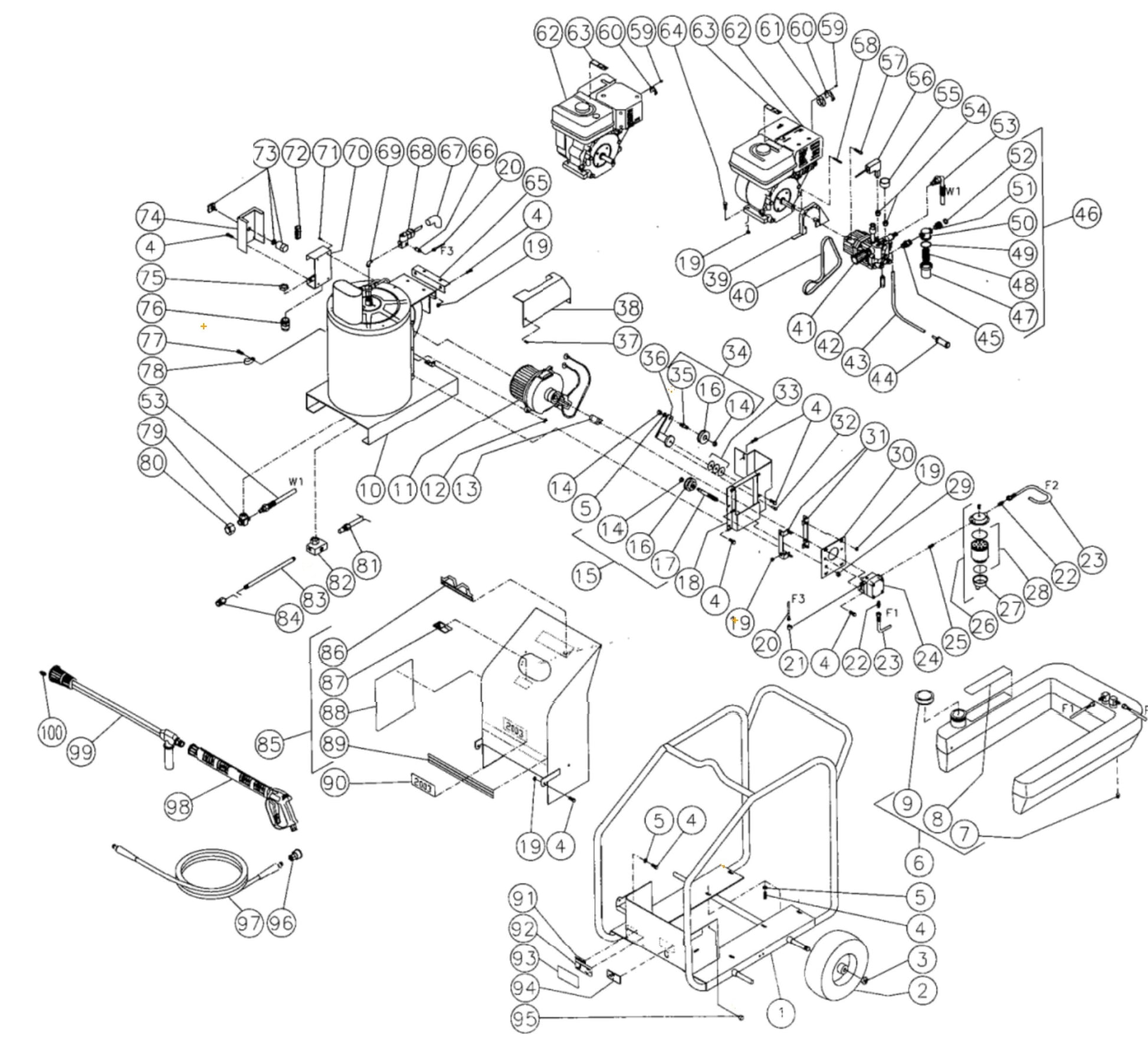

HSP-2003-0MGH/0MGV (sn:0-26203) Frame assembly Assembly Parts by Mi-T-M

HSP-2003-0MGH/0MGV (sn:0-26203) Frame assembly Assembly Parts by Mi-T-M

  • HSP-2003-0MGH/0MGV (sn:0-26203) Frame assembly Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-9002A01 FRAME ASSEMBLY BY MITM
Call for Price call for price call for price
2
14-0017 Isolator 2" Od X 1.84 for AM2-PR09-30M Air Compressor by Mi-T-M 140017
$11.64
3
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
5
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
6
850-0163 FUEL TANK ASSEMBLY BY MITM
$273.38
7
23-0238 Plug-Square Head 1/4 Brass for AC1-PR07-20M Air Compressor by Mi-T-M 230238
$10.73
8
34-0539 DECAL-RISK OF FIRE BY MITM
Call for Price call for price call for price
9
12-0033 Vented Fuel Cap BY MITM
$14.40
10
33-0204 BOILER ASSEMBLY COMPLETE BY MITM
$1,109.70
11
850-0159 EMF ASSEMBLY BY MITM
Call for Price call for price call for price
12
30-3022 Hex Nut for MiTM Pressure Washers 303022
$7.65
13
33-0225 Coupling-Flexiable 2.31 Long for AC1-PE15-08M Air Compressor by Mi-T-M 330225
$18.15
15
850-0167 Adjustable Sheave Shaft Assy for AC1-PR06-20M Air Compressor by Mi-T-M 8500167
$165.99
16
850-0177 Sheave Assembly/Idler for AC1-PR06-20M Air Compressor by Mi-T-M 8500177
$84.66
17
33-0221 Shaft-Pulley 1/2X5.32 for AC1-PR06-20M Air Compressor by Mi-T-M 330221
$20.67
18
20-0353A01 BRACKET BY MITM
Call for Price call for price call for price
19
30-3023 Locknut BY MITM
$0.68
19
30-3023 Locknut BY MITM
$0.68
20
33-0217 FUEL LINE BY MITM
Call for Price call for price call for price
21
23-0248 Elbow 1/8M X 3/16 45Deg Flare for AC1-PR06-20M Air Compressor by Mi-T-M 230248
$22.28
24
3-0129 Pump Fuel Left Hand for AC1-PR06-20M Air Compressor by Mi-T-M 30129
$280.98
25
23-0250 HEX NIPPLE BY MITM
$3.65
26
19-0070 Filter Fuel/Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190070
$134.38
27
19-0071 Bowl For Fuel Water Separator for AC1-PE02-20M Air Compressor by Mi-T-M 190071
$124.62
28
19-0053 Filter Element for AC1-PE02-08M Air Compressor by Mi-T-M 190053
$67.87
29
30-0010 HEX NUT BY MITM
$0.68
30
20-0363A01 FUEL PUMP MOUNTING PLATE BY MITM
$12.36
31
20-0360A01 BRACKET- BLACK BY MITM
$12.36
32
33-0211 Pin Idler for AC1-PR06-20M Air Compressor by Mi-T-M 330211
$7.28
33
28-0057 WASHER BY MITM
$0.68
34
850-0166 Tensioner Sheave Shaft Assy for AC1-PE15-08M Air Compressor by Mi-T-M 8500166
$119.88
35
33-0212 Shaft Idler for AC1-PR06-20M Air Compressor by Mi-T-M 330212
$16.08
36
10-0071 Tensioner, Base Self Adj for AC1-PR06-20M Air Compressor by Mi-T-M 100071
$179.82
37
27-9526 Bolt BY MITM
$1.35
38
20-0362A01 BELTGUARD FOR HONDA BY MITM
Call for Price call for price call for price
38
20-0355A01 BELTGUARD FOR VANGUARD BY MITM
Call for Price call for price call for price
39
38-0039 FLANGE GUARD BY MITM
Call for Price call for price call for price
40
11-0037 Belt 4J Section 34" for AC1-PR06-20M Air Compressor by Mi-T-M 110037
Call for Price call for price call for price
41
3-0105 HIGH PRESSURE PUMP BY MITM
$674.27
42
22-0208 Heat Dump Valve for MiTM Pressure Washers 220208
$45.96
44
19-0050 Strainer Chemical Wo/Ck for AC1-HE15-05M Air Compressor by Mi-T-M 190050
$5.99
45
23-0241 Hex Adapter for AC1-PR06-20M Air Compressor by Mi-T-M 230241
$20.81
46
19-0057 Strainer-W/Garden Hose Fitting for AC1-PR07-08M Air Compressor by Mi-T-M 190057
$81.56
47
19-0060 Bowl-Strainer, Clear for AC1-PE15-08M Air Compressor by Mi-T-M 190060
$26.34
48
19-0059 Screen-Strainer 304Ss 80 Mesh for AC1-PE15-08M Air Compressor by Mi-T-M 190059
$21.79
49
26-0160 Gasket Strainer Epdm Rubber for AC1-PE15-08M Air Compressor by Mi-T-M 260160
$14.81
50
19-0058 Head-Strainer Polyp Reinforced for AC1-PE15-08M Air Compressor by Mi-T-M 190058
$22.96
51
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
52
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
53
15-0144 HIGH PRESSURE HOSE ASSEMBLY BY MITM
Call for Price call for price call for price
54
39-0081 Valve Plug-Tapped 1/4Bsp for AC1-PR06-20M Air Compressor by Mi-T-M 390081
$30.87
55
22-0206 PRESSURE GAUGE BY MITM
Call for Price call for price call for price
56
850-0173 NIPPLE BY MITM
$46.71
57
27-0849 CAP SCREW BY MITM
$0.75
58
43-0073 Key 3/16" X 1-7/8" for AC1-HE15-05M Air Compressor by Mi-T-M 430073
$8.06
59
27-3093 SCREW FOR HONDA BY MITM
$0.68
59
27-3094 SCREW FOR VANGUARD BY MITM
Call for Price call for price call for price
60
45-0051 MUFFLER DEFLECTOR FOR HONDA BY MITM
$21.60
60
45-0050 MUFFLER DEFLECTOR FOR VANGUARD BY MITM
$7.43
61
45-0052 MUFFLER GUIDE FOR HONDA BY MITM
$18.90
62
1-0013 Engine- 5.5 Hp Honda for MiTM Air Compressors by MiTM 10013
$1,100.54
62
1-0069 Engine Vanguard 6.0 Hp Recoil for AC1-PR06-20M Air Compressor by Mi-T-M 10069
$936.53
63
34-0558 DECAL-WARNING: HOT SURFACE/COOL BY MITM
Call for Price call for price call for price
64
27-9525 Bolt BY MITM
$2.70
65
20-0354A01 BRACKET (3MGV) BY MITM
Call for Price call for price call for price
66
23-0291 Nipple 1/8M X 3/16 45Deg Flare for AC1-PR06-20M Air Compressor by Mi-T-M 230291
$7.28
67
33-0218 Spiral Nonmetallic Tubing for AC1-PE15-08M Air Compressor by Mi-T-M 330218
$5.99
69
23-0249 Elbow 1/8Mnpt X 1/8Mnpt 90Deg for AC1-PE15-08M Air Compressor by Mi-T-M 230249
$18.20
70
20-0356A01 BACKPLATE ELECTRIC BOX- BLACK BY MITM
Call for Price call for price call for price
71
27-9528 BOLT BY MITM
$1.35
72
32-0394 Terminal Strip /12 Position for AC1-PE15-08M Air Compressor by Mi-T-M 320394
$21.71
73
32-0399 SWITCH BY MITM
$51.30
74
20-0357A01 ELECTRIC BOX COVER BY MITM
$6.75
75
32-0292 LOCKNUT BY MITM
Call for Price call for price call for price
76
9-0046 Bushing 3/4 Elec .5-.75 Cord for AC1-PH65-08M Air Compressor by Mi-T-M 90046
$18.41
77
27-3062 Screw for MiTM Pressure Washers 273062
$5.93
78
32-0428 Cable Clamp for AC1-PR06-20M Air Compressor by Mi-T-M 320428
$4.28
79
850-0169 COIL INLET CONNECTOR ASSEMBLY BY MITM
$29.70
80
850-0182 DRAIN PLUG ASSEMBLY BY MITM
$34.43
81
32-0421 HIGH LIMIT SWITCH BY MITM
Call for Price call for price call for price
82
850-0220 OUTLET CONNECTOR WITH BURST DISK - 5000 PSI BY MITM
$200.42
83
24-0122 Pipe Nipple 3/8M X 11.12" for AC1-PR06-20M Air Compressor by Mi-T-M 240122
$39.11
84
23-0197 Screw Nipple-3/8Fpt X M22-14Mm for AC1-PE15-08M Air Compressor by Mi-T-M 230197
$14.27
85
850-0164 Hsp Hood Assy -Small for AC1-PR06-20M Air Compressor by Mi-T-M 8500164
$271.02
86
62-0087 Plastic Mi-T-M Small Logo/Gold for AC1-PE15-08M Air Compressor by Mi-T-M 620087
$10.72
87
34-0559 DECAL-HOT SURFACE/COIL EXHAUST BY MITM
Call for Price call for price call for price
88
34-0556 DECAL-WARNING/CAUTION/OPERATION BY MITM
Call for Price call for price call for price
89
34-0560 DECAL-STRIPE BY MITM
Call for Price call for price call for price
90
34-0551 DECAL- DIE CUT 2003 BY MITM
Call for Price call for price call for price
92
34-0557 DECAL-SILVER STICKER BY MITM
Call for Price call for price call for price
93
34-0210 Decal Clear Laminate for MiTM Pressure Washers 340210
Call for Price call for price call for price
94
34-0433 DECAL-WARNING: RISK OF SPRAY BY MITM
Call for Price call for price call for price
95
62-0057 Knob W/Stud M6-1.00P X 16Mm for AC1-PH65-08M Air Compressor by Mi-T-M 620057
$4.85
96
17-0035 SCREW CONNECT BY MITM
$16.20
98
850-0179 GUN/ LANCE ASSEMBLY BY MITM
$0.68
99
850-0185 Dual Lance Assembly (Includes 22-42) 36" BY MITM
$101.79
100
18-0054 Nozzle 1504 1/4 Meg for AC1-PE15-20M1 Air Compressor by Mi-T-M 180054
$13.23
4
27-9524 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 279524
$1.99
4
27-9524 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 279524
$1.99
14
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
22
23-0247 Union 1/4Mnpt X 1/4 Flare for AC1-HE02-05M by Mi-T-M 230247
$5.99
23
15-0147 Fuel Hose 13" 300Psi Black for AC1-HE02-05M by Mi-T-M 150147
$26.29
43
15-0021 Hose 1/4 Id Clear Chemi for AC1-HE02-05M by Mi-T-M 150021
$1.99
68
44-0098 Solenoid Fuel Oil for AC1-PE15-08M Air Compressor by Mi-T-M 440098
$85.62
97
15-0146 Hose 3/8X50' 3000Psi R1 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150146
$151.47
