HSP-2003-1MGH, HSP-2003-1MGV High Pressure Pump Parts by Mi-T-M

HSP-2003-1MGH, HSP-2003-1MGV High Pressure Pump Parts by Mi-T-M

  • HSP-2003-1MGH, HSP-2003-1MGV High Pressure Pump Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
4
46-0318 BOLT BY MITM
$0.75
5
26-0159 Seal Washer for AC1-PR07-20M Air Compressor by Mi-T-M 260159
$19.58
6
46-0297 COVER-REAR BY MITM
$43.20
7
25-0308 O-Ring Bearing Case for AC1-PR07-20M Air Compressor by Mi-T-M 250308
$34.04
8
26-0155 Oil Seal for AC1-PR07-20M Air Compressor by Mi-T-M 260155
$33.74
9
48-0027 Bearing-Inner for MiTM Pressure Washers 480027
$146.73
10
46-0298 Connecting Rod for MiTM Pressure Washers 460298
$175.13
11
46-0654 CRANKSHAFT BY MITM
$424.85
12
46-0300 Snap Ring for AC1-PR07-20M Air Compressor by Mi-T-M 460300
$10.44
13
48-0028 Bearing-Outer for MiTM Pressure Washers 480028
$139.37
17
39-0057 Plug Drain for AC1-PR07-20M Air Compressor by Mi-T-M 390057
$14.97
18
25-0199 O-Ring Cap for AC1-PR07-20M Air Compressor by Mi-T-M 250199
$8.76
19
46-0301 CRANKCASE BY MITM
Call for Price call for price call for price
20
22-0123 Gauge Bubble Oil W/Gasket for AC1-PR07-20M Air Compressor by Mi-T-M 220123
$42.87
21
26-0139 Gasket Flat Flexible for AC1-PR07-20M Air Compressor by Mi-T-M 260139
$14.15
22
43-0063 Piston Rod Pin for AC1-PR07-20M Air Compressor by Mi-T-M 430063
$29.33
23
46-0302 Piston Rod for AC1-PR07-20M Air Compressor by Mi-T-M 460302
$133.02
24
46-0314 Washer for AC1-PR07-20M Air Compressor by Mi-T-M 460314
$7.28
25
26-0156 Oil Seal for AC1-PR07-20M Air Compressor by Mi-T-M 260156
$30.38
26
46-0303 Seal Retainer for AC1-PR07-20M Air Compressor by Mi-T-M 460303
$16.92
28
46-0304 Manifold Inlet for MiTM Pressure Washers 460304
Call for Price call for price call for price
29
46-0305 Ceramic Plunger for AC1-PR07-20M Air Compressor by Mi-T-M 460305
$135.77
30
46-0306 Inlet Valve for AC1-PR07-20M Air Compressor by Mi-T-M 460306
$67.40
31
46-0307 Spacer for AC1-PR07-20M Air Compressor by Mi-T-M 460307
$40.08
32
49-0064 Spring Inlet Valve for AC1-PR07-20M Air Compressor by Mi-T-M 490064
$19.58
33
46-0316 Conical Washer for AC1-PR07-20M Air Compressor by Mi-T-M 460316
$10.82
34
46-0317 Slotted Nut for AC1-PR07-20M Air Compressor by Mi-T-M 460317
$30.56
37
46-0309 DISCHARGE VALVE SEAT BY MITM
$29.03
42
46-0311 Manifold/Outlet for AC1-PR07-20M Air Compressor by Mi-T-M 460311
$496.82
43
46-0315 Bolt for MiTM Pressure Washers 460315
$38.70
44
46-0683 DISCHARGE VALVE ADAPTER BY MITM
$37.74
45
46-0682 Valve Seat for MiTM Pressure Washers 460682
$92.12
-
70-0096 Bolt Mount Kit (Inc. 4 Each 10-12) for MiTM Pressure Washers 700096
$76.02
-
70-0129 Kit Seal for AC1-PR07-20M Air Compressor by Mi-T-M 700129
$344.69
-
70-0130 Kit Valve for AC1-PR07-20M Air Compressor by Mi-T-M 700130
$297.20
-
70-0160 Kit Inlet Valve for AC1-PR07-20M Air Compressor by Mi-T-M 700160
$212.49
-
70-0167 Kit-Discharge Valve/S.S. Seat for AC1-PR07-20M Air Compressor by Mi-T-M 700167
$258.57
-
70-0139 Kit Seal for AC1-PR07-20M Air Compressor by Mi-T-M 700139
$605.64
View full details

Frequently asked questions

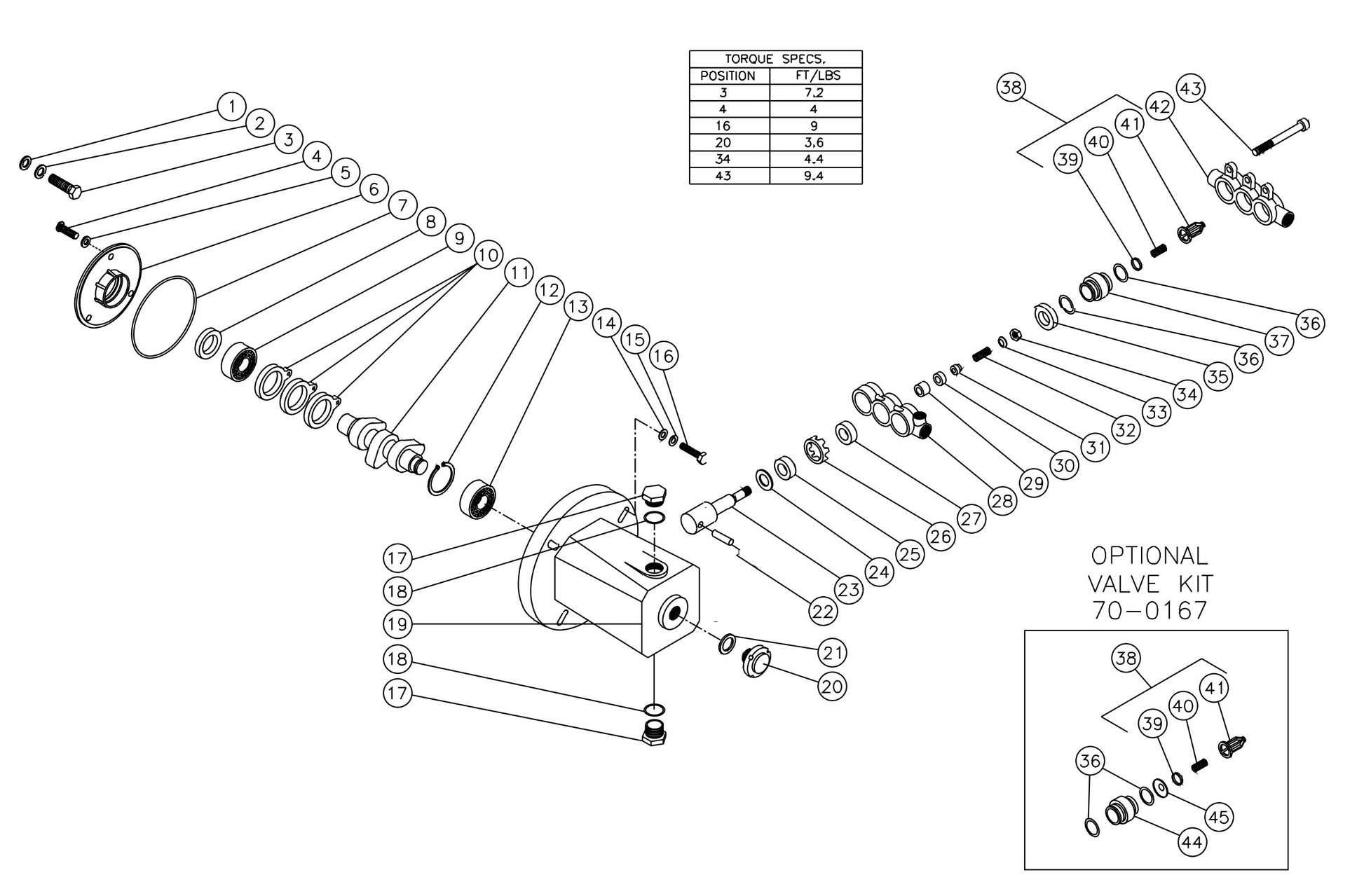

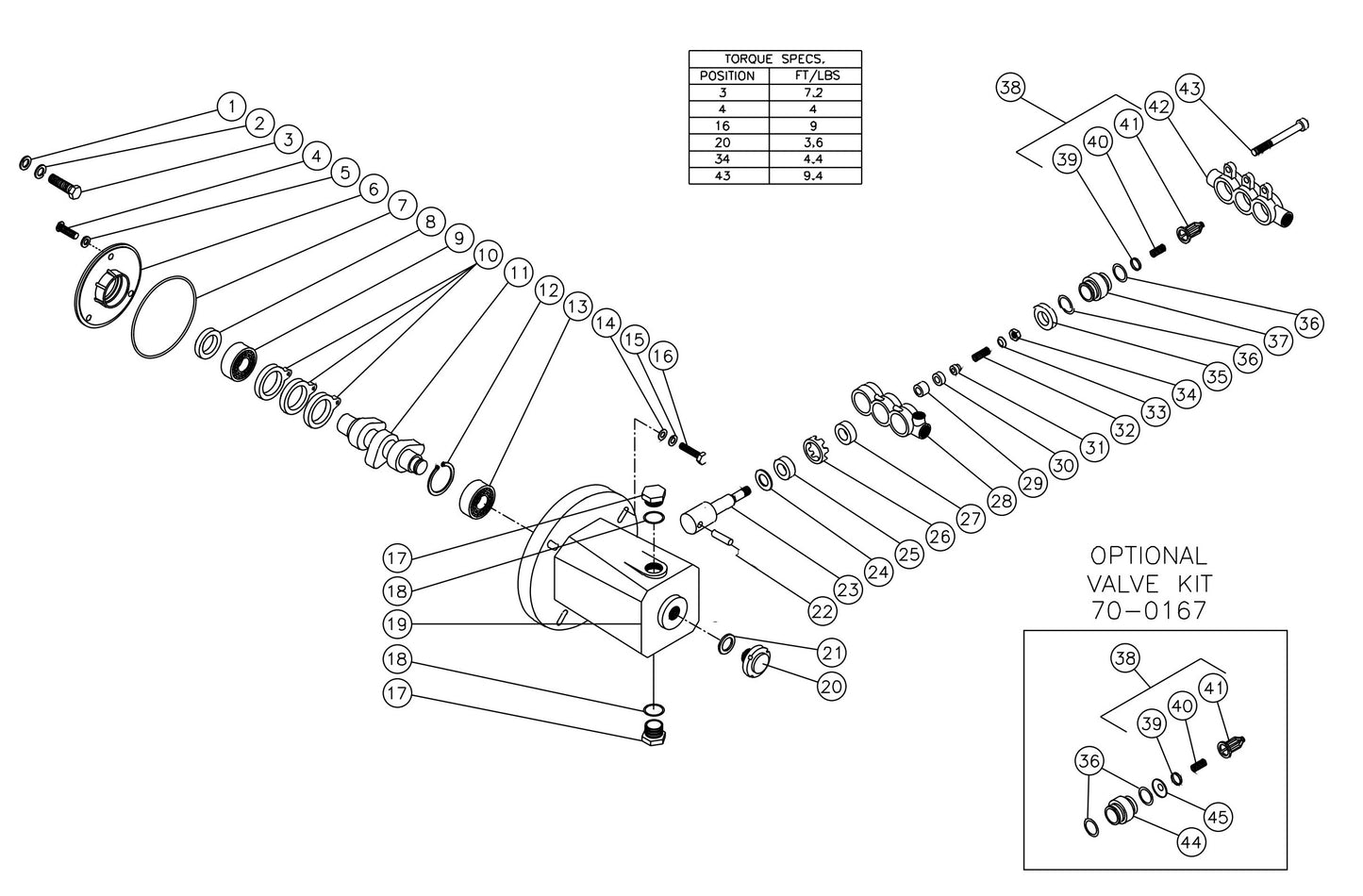

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
