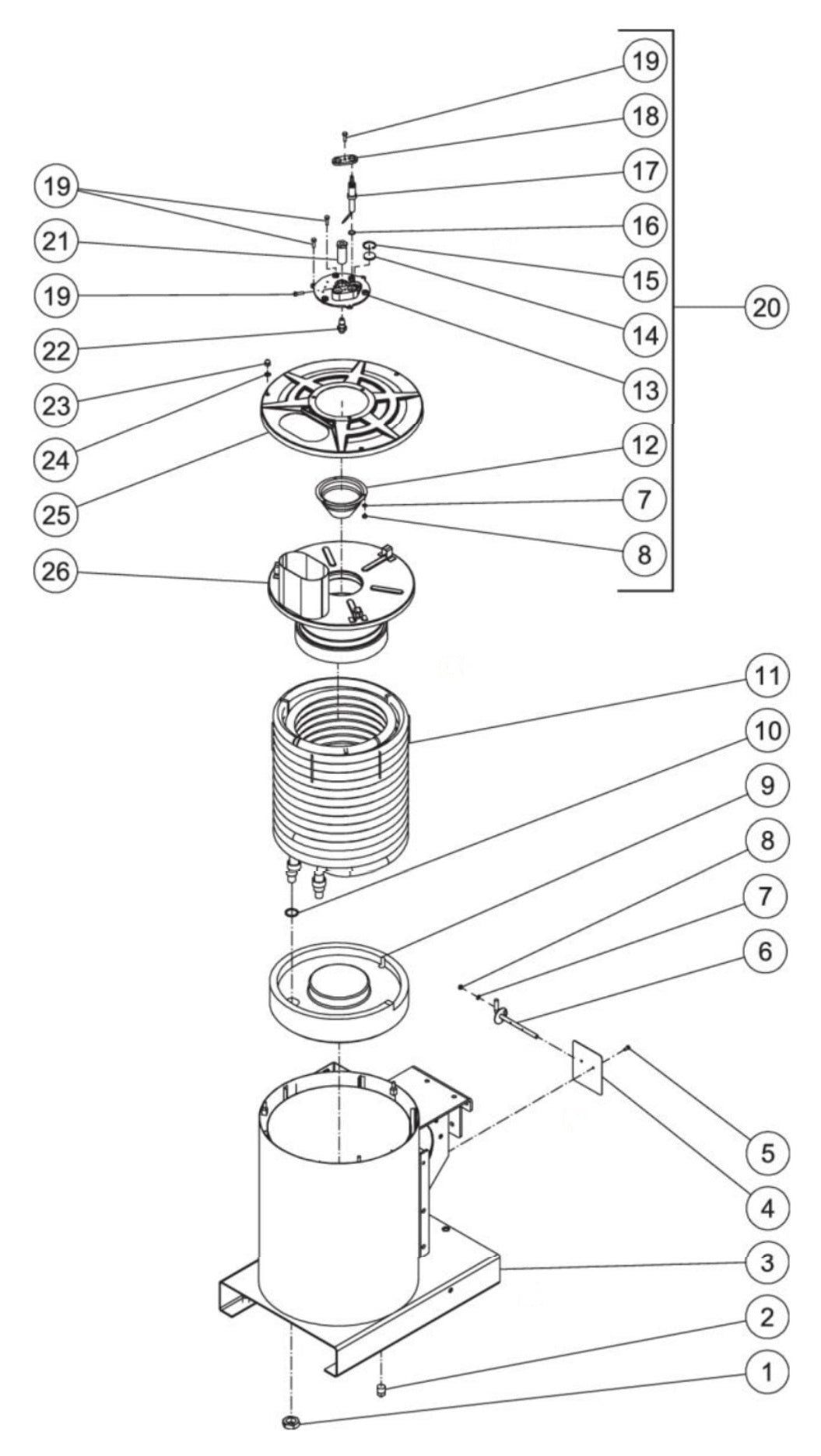

HSP-2003-3MGH/3MGV, HSP-2403-3MGH/3MGR (sn:15071603-15074024) (sn:15074025-99999999) Boiler Assembly Parts by Mi-T-M

HSP-2003-3MGH/3MGV, HSP-2403-3MGH/3MGR (sn:15071603-15074024) (sn:15074025-99999999) Boiler Assembly Parts by Mi-T-M

  • HSP-2003-3MGH/3MGV, HSP-2403-3MGH/3MGR (sn:15071603-15074024) (sn:15074025-99999999) Boiler Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
30-0121 Nut BY MITM
$2.03
2
24-0034 Plug 3/8"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240034
$4.85
3
20-0348A01 HEAT EXCHANGER ASSEMBLY BY MITM
$0.68
4
20-0454A01 AIR DIVERTER PLATE BY MITM
Call for Price call for price call for price
5
27-8879 Bolt BY MITM
$0.68
6
20-0377A01 Air Diverter Stem-Black BY MITM
$5.48
7
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
8
30-6001 Nut for MiTM Pressure Washers by MiTM 306001
$4.49
10
28-0521 Washer BY MITM
$2.70
11
66-0012 Heat Exchanger Coil for AC1-PV06-08M (AFTER S/N 20000951) Air Compressor by Mi-T-M 660012
$716.72
12
20-0373 Cone BY MITM
$5.21
13
38-0065 Electrode Plate for AC1-PH65-08M Air Compressor by Mi-T-M 380065
$25.23
14
33-0252 Sight Glass for AC1-PE15-08M Air Compressor by Mi-T-M 330252
$9.90
15
33-0254 Snap Ring for AC1-PE15-08M Air Compressor by Mi-T-M 330254
$4.85
16
28-0523 WASHER BY MITM
Call for Price call for price call for price
18
20-1094A01 ELECTRODE BRACKET BY MITM
$3.24
19
27-8878 Screw BY MITM
$0.68
20
850-0351 Electrode Assy Kit for AC1-SE05-60M Air Compressor by Mi-T-M 8500351
$233.07
21
23-0292 Nozzle Holder for AC1-PE15-08M Air Compressor by Mi-T-M 230292
$22.52
22
18-0310 Nozzle-Fuel 1.25 60 Deg B for AC1-PH55-20M Air Compressor by Mi-T-M 180310
$20.32
23
30-6002 Nut BY MITM
$0.68
24
28-1028 Lockwasher for MiTM Pressure Washers 281028
$7.65
25
20-1263 TOP PAN BY MITM
$20.93
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
