HSP-2503, HSP-2503, DH-2503 High Pressure Pump Parts by Mi-T-M

HSP-2503, HSP-2503, DH-2503 High Pressure Pump Parts by Mi-T-M

  • HSP-2503, HSP-2503, DH-2503 High Pressure Pump Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
27-0898 Bolt for MiTM Air Compressors by MiTM 270898
$2.99
2
39-0231 Valve Plug M22-1.5P for AM2-VE75-80M Air Compressor by Mi-T-M 390231
$11.82
3
25-0622 O-Ring 18.38 X 2.62Mm for MiTM Air Compressors by MiTM 250622
$4.43
4
70-0502 Kit Valves W/O-Rings for AM2-VE75-80M Air Compressor by Mi-T-M 700502
$36.36
5
46-1503 Manifold Head Brass for MiTM Air Compressors by MiTM 461503
$218.36
6
22-0414 HEAT DUMP VALVE BY MITM
$14.45
7
39-0203 Outlet Plug for MiTM Air Compressors by MiTM 390203
$11.42
9
46-1311 Intermediate Seal Retainer for AM2-VE75-80M Air Compressor by Mi-T-M 461311
$12.21
12
46-1312 Lp Retainer Ring for AM2-VE75-80M Air Compressor by Mi-T-M 461312
$8.99
13
25-0663 O-Ring 15 X 2.5 Mm for MiTM Air Compressors by MiTM 250663
$4.43
14
46-1313 Oil Seal 24Mm X 15Mm X 6Mm for AM2-VE75-80M Air Compressor by Mi-T-M 461313
$14.70
16
48-0096 Bearing-Needle 52Mmx43Mmx20Mm for MiTM Air Compressors by MiTM 480096
$40.47
17
38-0067 FLANGE (INCLUDES 19-21) BY MITM
$17.55
18
25-0603 O-Ring 50.47 X 2.62Mm for AM2-VE75-80M Air Compressor by Mi-T-M 250603
$2.99
20
26-0320 Oil Seal 50Mm X 36Mm X 7Mm for AM2-VE75-80M Air Compressor by Mi-T-M 260320
$8.99
21
27-8431 Bolt for MiTM Air Compressors by MiTM 278431
$8.93
22
46-1504 Piston Ceramic Coated for MiTM Air Compressors by MiTM 461504
$29.94
24
46-1505 Piston- Wrist - Pin for MiTM Air Compressors by MiTM 461505
$11.03
25
25-0604 O-Ring 130Mm X 2.65Mm for AM2-VE75-80M Air Compressor by Mi-T-M 250604
$5.99
26
46-1317 1506 Backplate W/Sight Glass for AM2-VE75-80M Air Compressor by Mi-T-M 461317
$32.57
27
26-0322 Gasket 17.5Mm X 12Mm X 2Mm for AM2-VE75-80M Air Compressor by Mi-T-M 260322
$2.99
28
39-0232 Drain Plug M13-1.3P X 10Mm for AM2-VE75-80M Air Compressor by Mi-T-M 390232
$5.99
29
27-8401 Bolt for MiTM Air Compressors by MiTM 278401
$7.49
30
70-0503 Kit Dipstick Complete for AM2-VE75-80M Air Compressor by Mi-T-M 700503
$7.28
31
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
34
46-1506 Snap Ring for MiTM Pressure Washers by MiTM 461506
$2.99
18
46-1507 Crankshaft Cover for MiTM Pressure Washers by MiTM 461507
$18.60
36
70-0501 Kit High Pressure Seal Kit for AM2-VE75-80M Air Compressor by Mi-T-M 700501
$53.04
View full details

Frequently asked questions

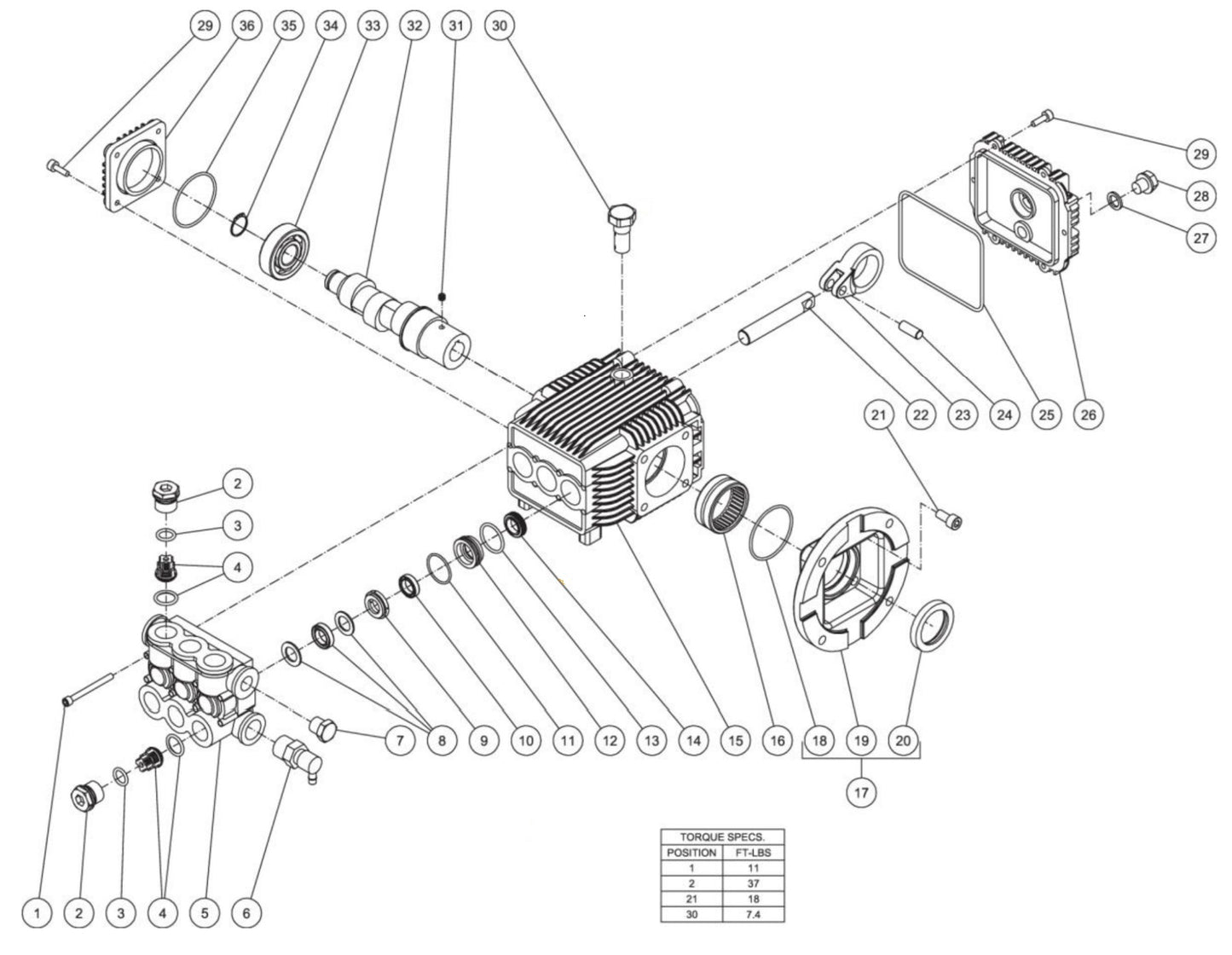

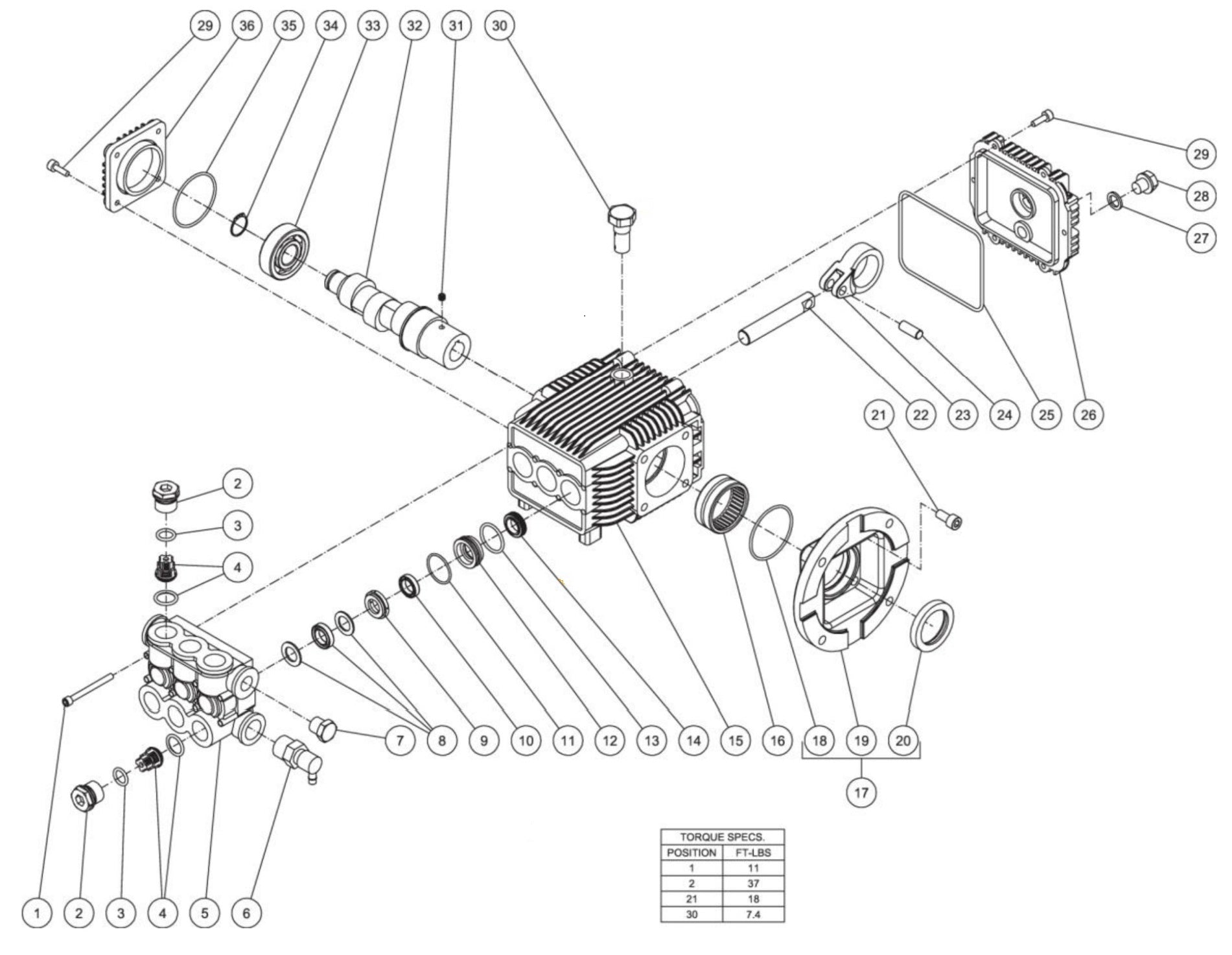

How do I use this diagram?
