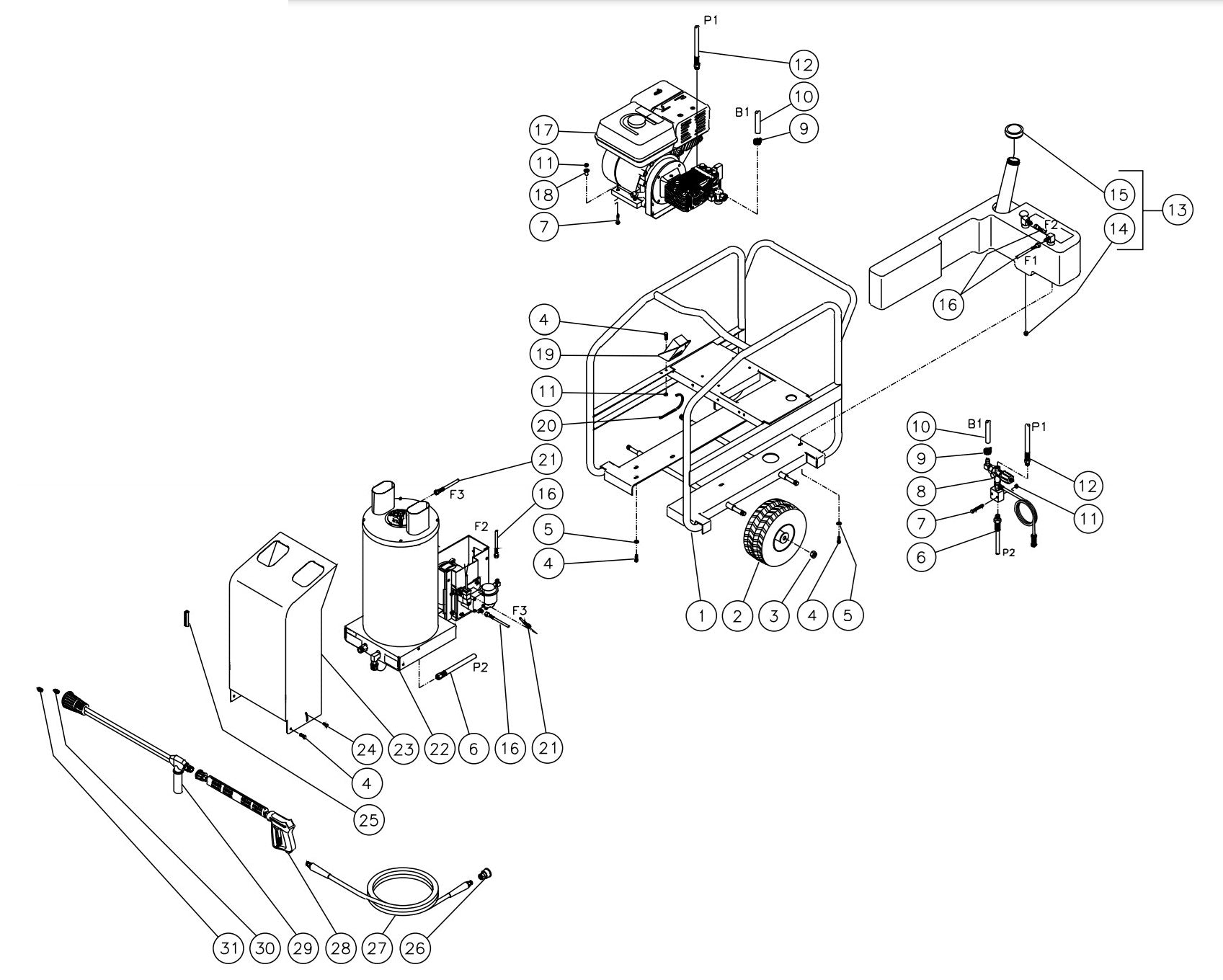

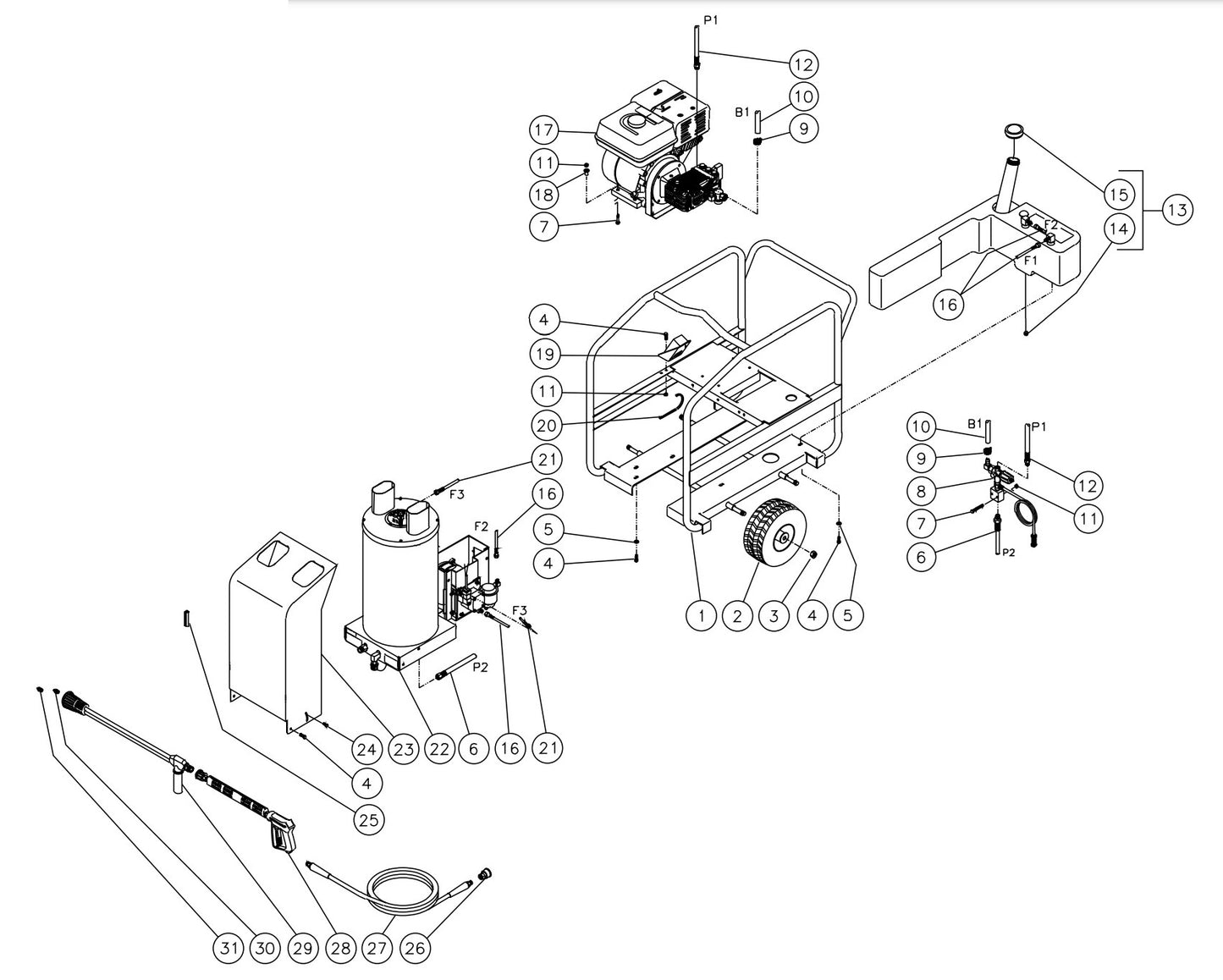

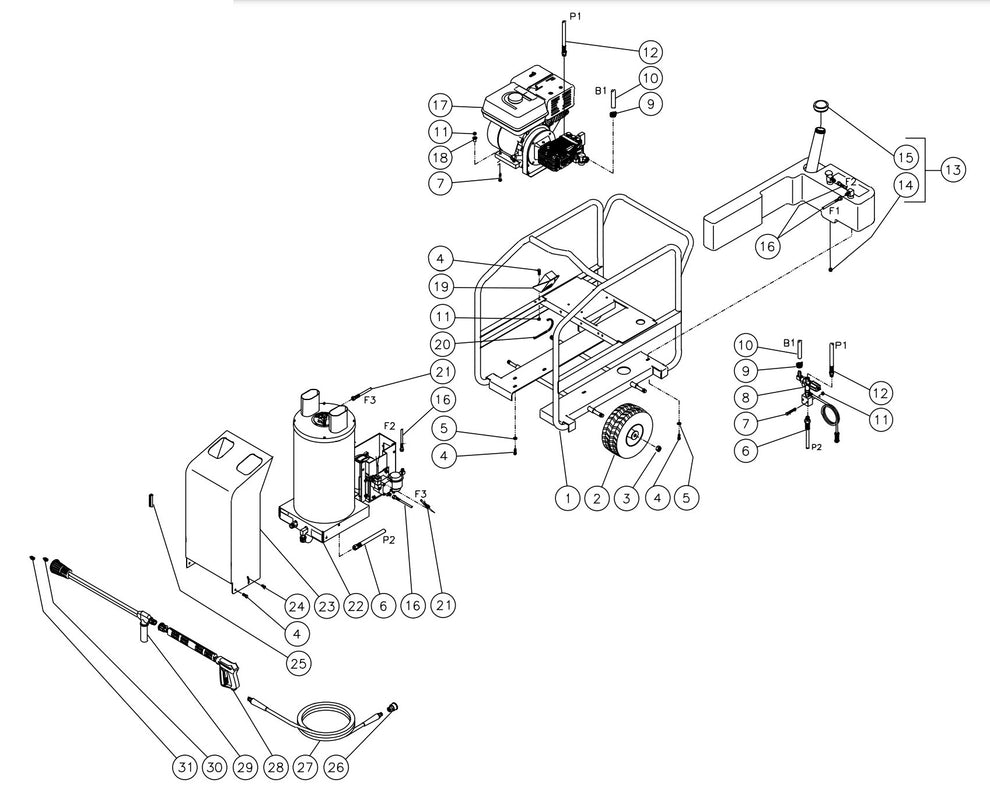

HSP-3003-3MGR/3MGV/HSP-3004-3MGV/HSP-3504-3MGR (sn:0-15010743) Frame Assembly Parts by Mi-T-M

HSP-3003-3MGR/3MGV/HSP-3004-3MGV/HSP-3504-3MGR (sn:0-15010743) Frame Assembly Parts by Mi-T-M

  • HSP-3003-3MGR/3MGV (sn:0-15010743) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0120A01 FRAME BY MITM
$963.98
2
14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006
$128.67
3
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
5
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
6
15-0202 Hp Hose 3/8X22.5" 5800Psi R2 for AC1-SE05-60M Air Compressor by Mi-T-M 150202
$48.68
11
30-3023 Locknut BY MITM
$0.68
13
850-0248 Fuel Tank Assy for AC1-SE05-60M Air Compressor by Mi-T-M 8500248
$375.95
14
23-0296 Plug for AC1-PE02-20M Air Compressor by Mi-T-M 230296
$10.28
15
12-0033 Vented Fuel Cap BY MITM
$14.40
18
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
20
33-0022 Cable Tie for MiTM Pressure Washers 330022
$4.41
21
15-0165 Fuel Hose 29.38" 3000Psi Black for AC1-PH65-08M Air Compressor by Mi-T-M 150165
$29.19
23
850-0194 Hood Assembly for AC1-SE05-60M Air Compressor by Mi-T-M 8500194
$277.80
24
62-0057 Knob W/Stud M6-1.00P X 16Mm for AC1-PH65-08M Air Compressor by Mi-T-M 620057
$4.85
25
33-0129 Edging-3 X 1/16 Locking for AC1-SE05-60M Air Compressor by Mi-T-M 330129
$12.36
26
17-0035 Screw Connect M22 X 3/8Fnpt for AC1-PE15-08M Air Compressor by Mi-T-M 170035
$25.87
27
15-0166 Hose 3/8X50' 4500Psi R2 Black for AC1-PE03-20M Air Compressor by Mi-T-M 150166
$183.86
28
850-0181 Gun/Wand Assy for AC1-HE15-05M Air Compressor by Mi-T-M 8500181
$82.85
29
850-0185 Dual Lance Assembly (Includes 22-42) 36" BY MITM
$101.79
30
18-0054 Nozzle 1504 1/4 Meg for AC1-PE15-20M1 Air Compressor by Mi-T-M 180054
$13.23
31
18-0110 Nozzle 4040 1/4 M for AC1-HE15-05M Air Compressor by Mi-T-M 180110
$12.68
4
27-9524 Bolt for MiTM Pressure Washers 279524
$5.93
7
27-9529 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 279529
$1.99
9
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
10
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
12
15-0194 Hose 3/8X24" 4500Psi R2 Black for AC1-HE02-05M1 Air Compressor by Mi-T-M 150194
$30.64
16
15-0147 Fuel Hose 13" 300Psi Black for AC1-HE02-05M by Mi-T-M 150147
$26.29
