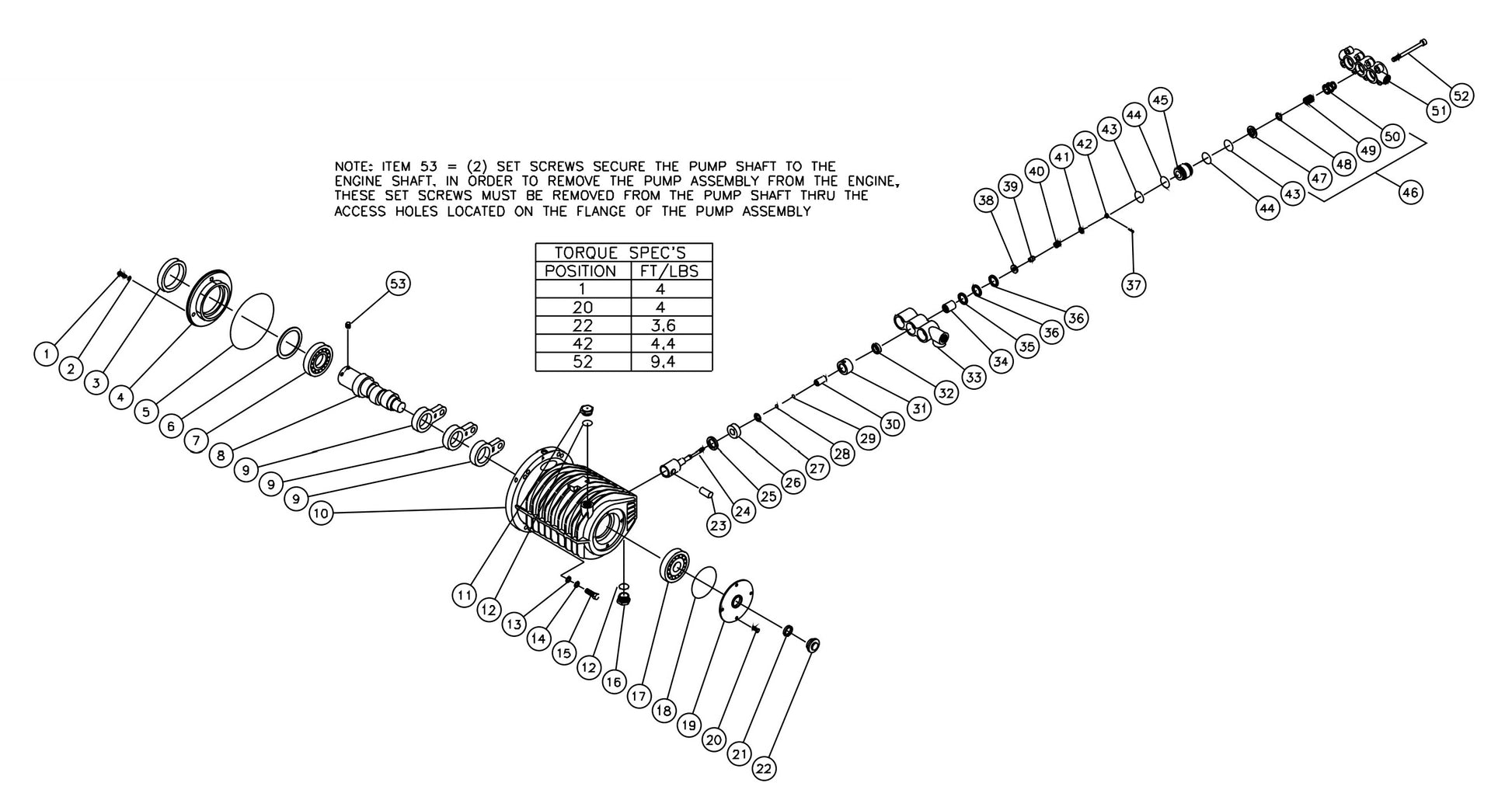

HSP-3004-1MGH/1MGV, HSP-3504-1MGH/1MGV High Pressure Pump Assembly Parts by Mi-T-M

HSP-3004-1MGH/1MGV, HSP-3504-1MGH/1MGV High Pressure Pump Assembly Parts by Mi-T-M

  • HSP-3004-1MGH/1MGV, HSP-3504-1MGH/1MGV High Pressure Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
27-8380 BOLT BY MITM
$1.35
2
26-0159 Seal Washer for AC1-PR07-20M Air Compressor by Mi-T-M 260159
$19.58
3
46-0538 Oil Seal for AC2-PE05-08M Air Compressor by Mi-T-M 460538
$59.58
4
46-0498 WASHER BY MITM
$119.75
5
25-0298 O-Ring for AC2-PE05-08M Air Compressor by Mi-T-M 250298
$37.53
6
46-0499 WASHER BY MITM
$8.10
7
46-0500 BEARING BY MITM
Call for Price call for price call for price
8
46-0687 CRANKSHAFT BY MITM
Call for Price call for price call for price
9
46-0521 CONNECTING ROD BY MITM
$35.78
10
46-0497 CRANKCASE BY MITM
$560.93
11
46-0523 Oil Filler Cap for AC2-PE05-08M Air Compressor by Mi-T-M 460523
$46.43
12
25-0199 O-Ring Cap for AC1-PR07-20M Air Compressor by Mi-T-M 250199
$8.76
16
39-0057 Plug Drain for AC1-PR07-20M Air Compressor by Mi-T-M 390057
$14.97
17
46-0501 BEARING BY MITM
Call for Price call for price call for price
18
25-0293 O-Ring , Oil Gauge for AC2-PE05-08M Air Compressor by Mi-T-M 250293
$16.53
19
46-0525 COVER BY MITM
$96.80
20
27-8381 BOLT BY MITM
$1.62
21
26-0139 Gasket Flat Flexible for AC1-PR07-20M Air Compressor by Mi-T-M 260139
$14.15
22
22-0123 Gauge Bubble Oil W/Gasket for AC1-PR07-20M Air Compressor by Mi-T-M 220123
$42.87
23
46-0502 Piston Pin for AC2-PE05-08M Air Compressor by Mi-T-M 460502
$33.41
24
46-0688 Pump Piston Rod for AC2-PE05-08M Air Compressor by Mi-T-M 460688
$285.26
25
46-0484 Seal Washer for AC2-PE05-08M Air Compressor by Mi-T-M 460484
$9.42
26
46-0485 Oil Seal for AC2-PE05-08M Air Compressor by Mi-T-M 460485
$35.51
27
46-0689 Pump Slinger Washer for AC2-PE05-08M Air Compressor by Mi-T-M 460689
$20.96
28
25-0378 O-Ring Back-Up for AC2-PE05-08M Air Compressor by Mi-T-M 250378
$26.88
29
25-0377 O-Ring for AC2-PE05-20M Air Compressor by Mi-T-M 250377
$7.28
30
46-0690 Pump Sleeve for AC2-PE05-08M Air Compressor by Mi-T-M 460690
$125.67
31
46-0504 Seal Retainer for AC2-PE05-20M Air Compressor by Mi-T-M 460504
$26.64
33
46-0506 Inlet Manifold for AC2-PE05-08M Air Compressor by Mi-T-M 460506
$600.09
34
46-0528 Ceramic Plunger for AC2-PE05-08M Air Compressor by Mi-T-M 460528
$153.30
35
46-0508 Female Adapter for AC2-PE05-08M Air Compressor by Mi-T-M 460508
$39.86
37
43-0064 Cotter Pin for AC2-PE05-08M Air Compressor by Mi-T-M 430064
$7.28
42
46-0317 Slotted Nut for AC1-PR07-20M Air Compressor by Mi-T-M 460317
$30.56
43
25-0297 O-Ring, Adapter for AC2-PE05-08M Air Compressor by Mi-T-M 250297
$11.10
44
25-0294 Back-Up Ring for AC2-PE05-08M Air Compressor by Mi-T-M 250294
$38.43
45
46-0510 Male Adapter, Spacer for AC2-PE05-08M Air Compressor by Mi-T-M 460510
$91.23
51
46-0511 OUTLET MANIFOLD BY MITM
$369.23
52
46-0533 Hex Socket Head Screw for AC2-PE05-08M Air Compressor by Mi-T-M 460533
$31.02
53
27-8895 Set Screw BY MITM
$0.68
-
70-0170 Kit Bolts For 4Sf Pump for AC2-PE05-08M Air Compressor by Mi-T-M 700170
$108.17
-
70-0172 Kit Seals for AC2-PE05-08M Air Compressor by Mi-T-M 700172
$531.72
-
70-0173 Kit Inlet Valve for AC2-PE05-08M Air Compressor by Mi-T-M 700173
$225.87
-
70-0174 Kit Valve for AC2-PE05-08M Air Compressor by Mi-T-M 700174
$418.65
