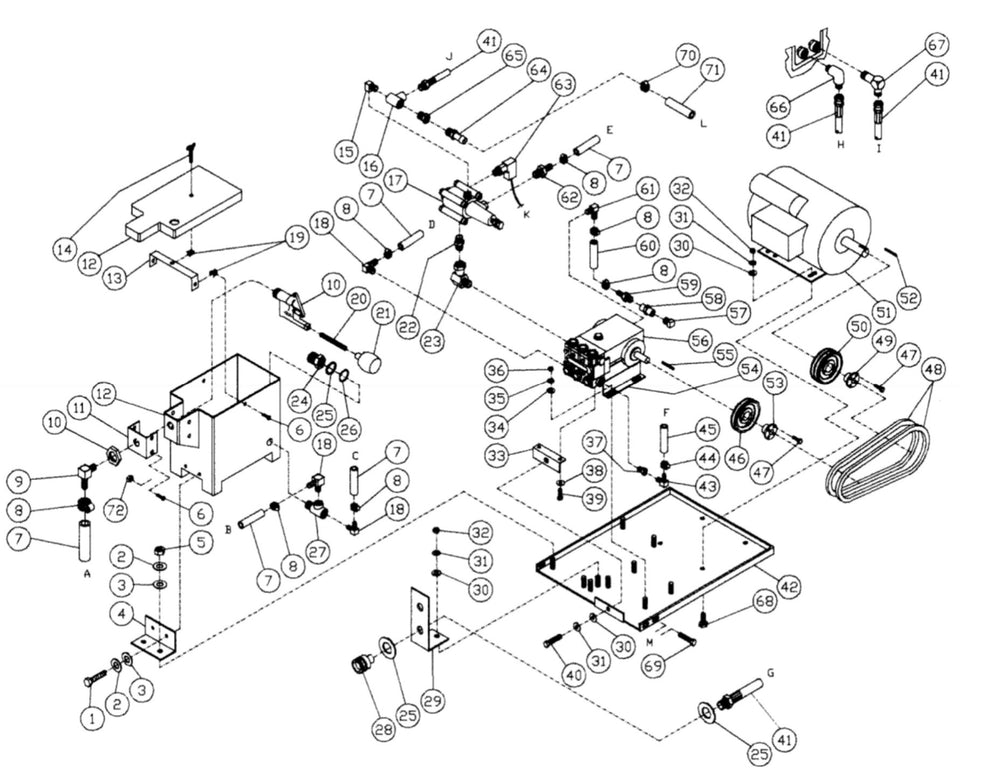

HU-2004-0M11, HU-3004-0M11, HU-3004-0M31 Motor/Pump Assembly Parts by Mi-T-M

HU-2004-0M11, HU-3004-0M11, HU-3004-0M31 Motor/Pump Assembly Parts by Mi-T-M

  • HU-2004-0M11, HU-3004-0M11, HU-3004-0M31 Motor//Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-0014 BOLT BY MITM
$0.68
47
27-0014 BOLT BY MITM
$0.68
2
29-0006 Lockwasher for MiTM Pressure Washers by MiTM 290006
$4.49
3
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
5
30-0002 Nut for MiTM Pressure Washers 300002
$7.65
6
27-2930 Screw for MiTM Pressure Washers 272930
$7.65
9
23-0053 Elbow 1/2Mx1/2 Barb Nspm 90 Br for AC1-HE15-05M Air Compressor by Mi-T-M 230053
$46.93
10
22-0058 FLOAT VALVE BY MITM
Call for Price call for price call for price
12
12-0035 FLOAT TANK AND LID ASSEMBLY BY MITM
Call for Price call for price call for price
13
56-0020 LID BRACKET BY MITM
$0.68
14
27-2953 SCREW BY MITM
$1.35
15
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
16
24-0026 Tee 3/8" All Female Steel for AC1-PE03-20M Air Compressor by Mi-T-M 240026
$25.92
17
8-0012 Unloader K 7.0 Regulating for AC1-HE15-05M Air Compressor by Mi-T-M 80012
$245.19
18
23-0050 Elbow 3/8Mx1/2"Hose Barb-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230050
$15.94
19
30-2104 U-CLIP NUT BY MITM
Call for Price call for price call for price
20
31-3318 STUD BY MITM
Call for Price call for price call for price
21
22-0059 Float 1/4-20 Polyethyne for AC1-HE15-05M Air Compressor by Mi-T-M 220059
$7.70
23
24-0046 Elbow 3/8Mx1/2Jic Fs 90 Steel for AC2-PH11-20M Air Compressor by Mi-T-M 240046
$33.30
25
28-0050 WASHER BY MITM
$0.68
26
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
27
23-0058 Tee 3/8" Street Steel for AC1-HE15-05M Air Compressor by Mi-T-M 230058
$26.21
28
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
29
20-0145 BRACKET BY MITM
Call for Price call for price call for price
30
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
30
28-0022 Flatwasher for MiTM Air Compressors by MiTM 280022
$5.18
32
30-0004 Nut BY MITM
$0.68
32
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
36
30-0006 Hex Nut for MiTM Pressure Washers 300006
$7.65
34
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
37
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
39
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
41
15-0070 HOSE BY MITM
Call for Price call for price call for price
44
42-0004 Hose Clamp for MiTM Pressure Washers 420004
$17.46
45
15-0079 Hose 1/4"Id Vinyl Reinf.-Clear for AC1-HR45-05M Air Compressor by Mi-T-M 150079
$3.99
46
10-0026 PUMP SHEAVE FOR HG-2004-0M10 BY MITM
$38.48
46
10-0035 Sheave 2Ak74H for AC2-PR09-08AB Air Compressor by Mi-T-M 100035
$119.25
48
11-0030 Belt Ax41 for AC1-HE15-05M Air Compressor by Mi-T-M 110030
$35.72
49
9-0008 Bushing H X 1 3/8 Motor for AC1-PR06-08M Air Compressor by Mi-T-M 90008
$31.52
50
10-0029 Sheave 2Ak32H for AC2-PH11-30M Air Compressor by Mi-T-M 100029
$67.56
50
10-0030 Sheave 2Ak46H for AC2-PR09-08AB Air Compressor by Mi-T-M 100030
$83.22
51
2-0054 Hg Motor 5Hp Ddp 1Ph 230V 4P for AC2-PH11-30M Air Compressor by Mi-T-M 20054
$2,408.19
51
2-0055 Hg Motor 7-1/2Hp 1Ph Odp 4P for AC2-PR09-08AB Air Compressor by Mi-T-M 20055
$1,736.33
51
2-0015 MOTOR 8HP 200V 1PH ODP (3004-0E8G) BY MITM
$1,337.85
52
43-0039 KEY WITH MOTOR BY MITM
$5.40
54
46-0066 PUMP FOOT BY MITM
Call for Price call for price call for price
56
3-0008 Pump Rh 4.5 Gpm At 2200 Psi for AC1-HE15-05M Air Compressor by Mi-T-M 30008
$1,244.52
56
3-0011 Pump for MiTM Pressure Washers 30011
$2,081.96
57
24-0009 Plug 1/4"Npt Sq Head Zinc for AC1-HE15-05M Air Compressor by Mi-T-M 240009
$3.99
58
23-0002 Coupling 1/4F X 1/4F Hex-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230002
Call for Price call for price call for price
59
23-0069 Barb 1/4Mp X 3/8 Hose-Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230069
$4.85
61
23-0123 Elbow 90Deg 1/4M 3/8Hose Barb for AC1-HE15-05M Air Compressor by Mi-T-M 230123
$15.01
63
850-0173 NIPPLE BY MITM
$46.71
64
22-0046 Safety Valve 1/4M 3Kpsi 6Gpm for AC1-HE15-05M Air Compressor by Mi-T-M 220046
$45.99
65
23-0017 Bushing 1/4F X 3/8M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230017
$5.99
67
24-0075 Elbow Long 1/2M X #8Jic Male for AC2-PH11-20M Air Compressor by Mi-T-M 240075
$34.25
69
27-0415 BOLT BY MITM
$7.43
70
42-0003 HOSE CLAMP BY MITM
$2.16
71
15-0003 Pressure Hose (3000 Psi) for MiTM Air Compressors by MiTM 150003
Call for Price call for price call for price
72
30-0154 Locknut for MiTM Pressure Washers 300154
$5.93
7
15-0007 Hose *(Two Feet Required) for ABS Air Compressor by Mi-T-M 150007
Call for Price call for price call for price
8
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
22
*24-0002 Nipple 3/8M X #8Jic Hex -Steel for Mi-T-M CA-2703-0MHB by MiTM 240002
$6.04
24
23-0016 Bushing 1/2M X 3/8F Hex Brass for AC1-HE02-05M by Mi-T-M 230016
$6.03
31
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
31
29-0007 Lockwasher for ABS Air Compressor by Mi-T-M 290007
Call for Price call for price call for price
31
29-0008 LOCKWASHER BY MITM
$2.55
35
29-0008 LOCKWASHER BY MITM
$2.55
34
28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
38
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
40
27-0526 BOLT BY MITM
$0.68
43
23-0051 Barb 1/4Mpx1/4 Hose Std Brass for AC1-HE02-05M by Mi-T-M 230051
$6.83
48
11-0006 Cog Belt Ax36 for AC1-HE02-05M by Mi-T-M 110006
$25.30
53
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
55
43-0028 Key 25 X 8 X 7 for AC1-HE02-05M1 Air Compressor by Mi-T-M 430028
$12.31
60
15-0020 Hose 3/8" Fuel Line for AC1-HE02-05M by Mi-T-M 150020
$9.61
62
23-0105 Barb 3/8Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230105
$7.58
66
24-0074 90° Elbow Fitting for ABS Air Compressor by Mi-T-M 240074
$16.62
68
27-0117 Bolt for ABS Air Compressor by Mi-T-M 270117
$1.99
4
Call for Price call for price call for price
11
Call for Price call for price call for price
42
Call for Price call for price call for price
33
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

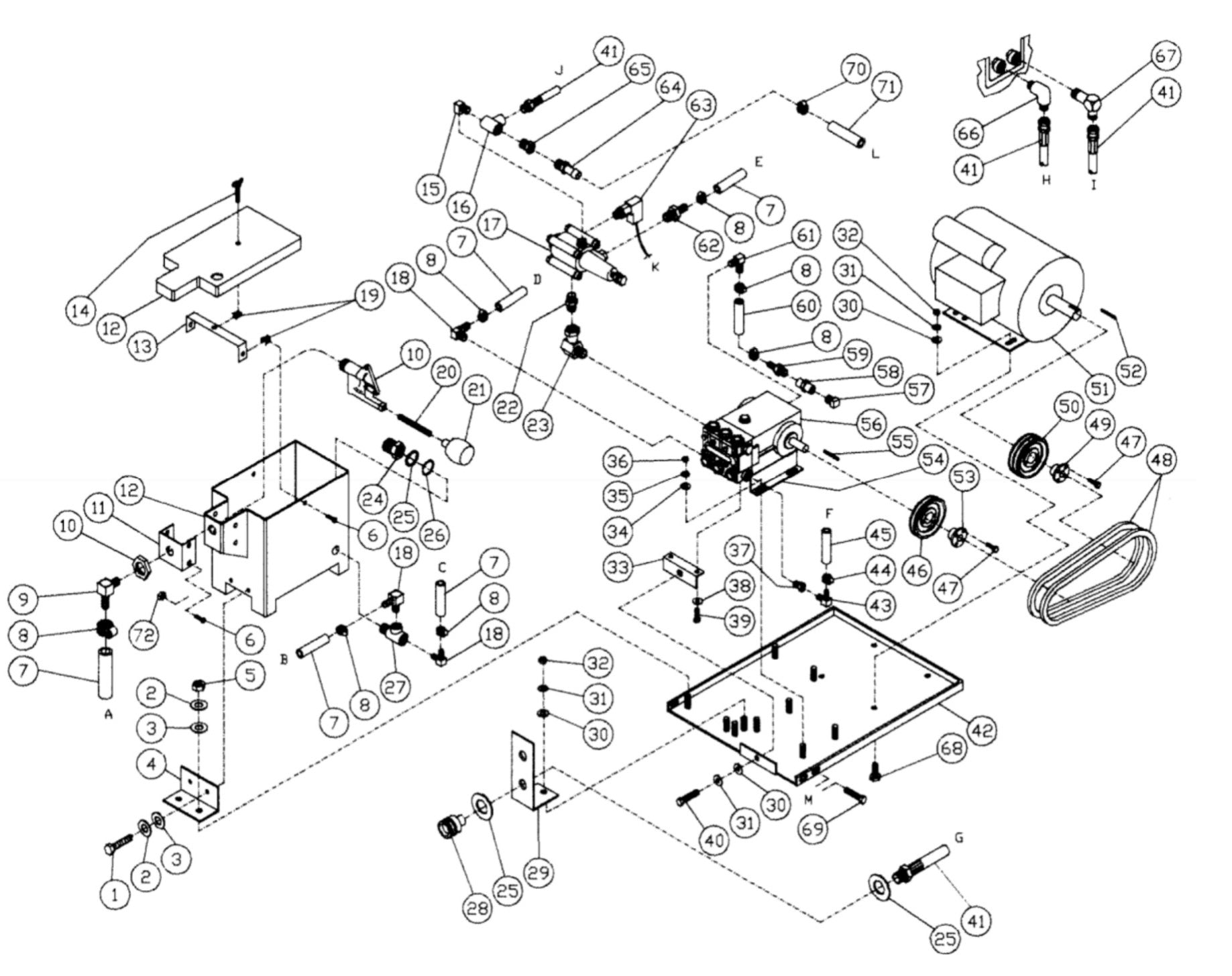

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
