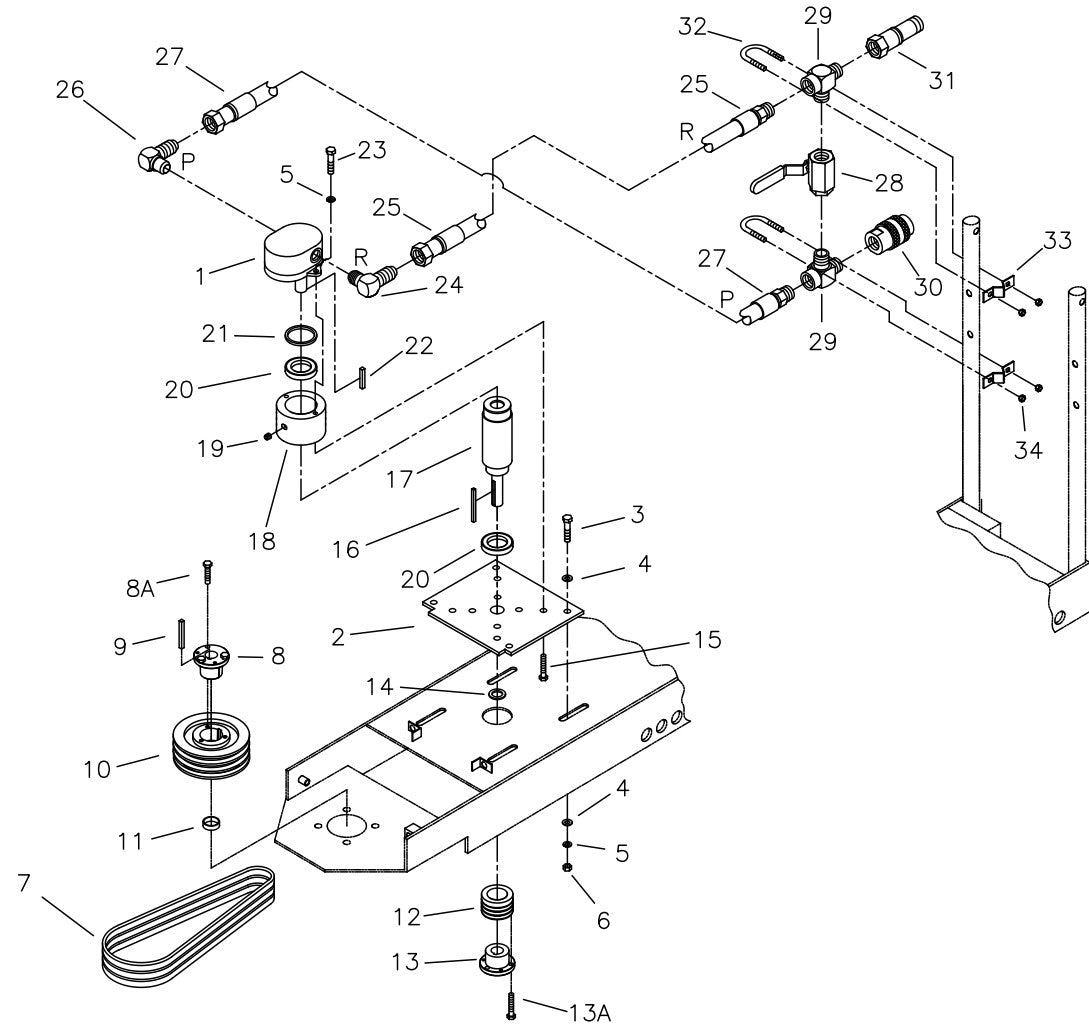

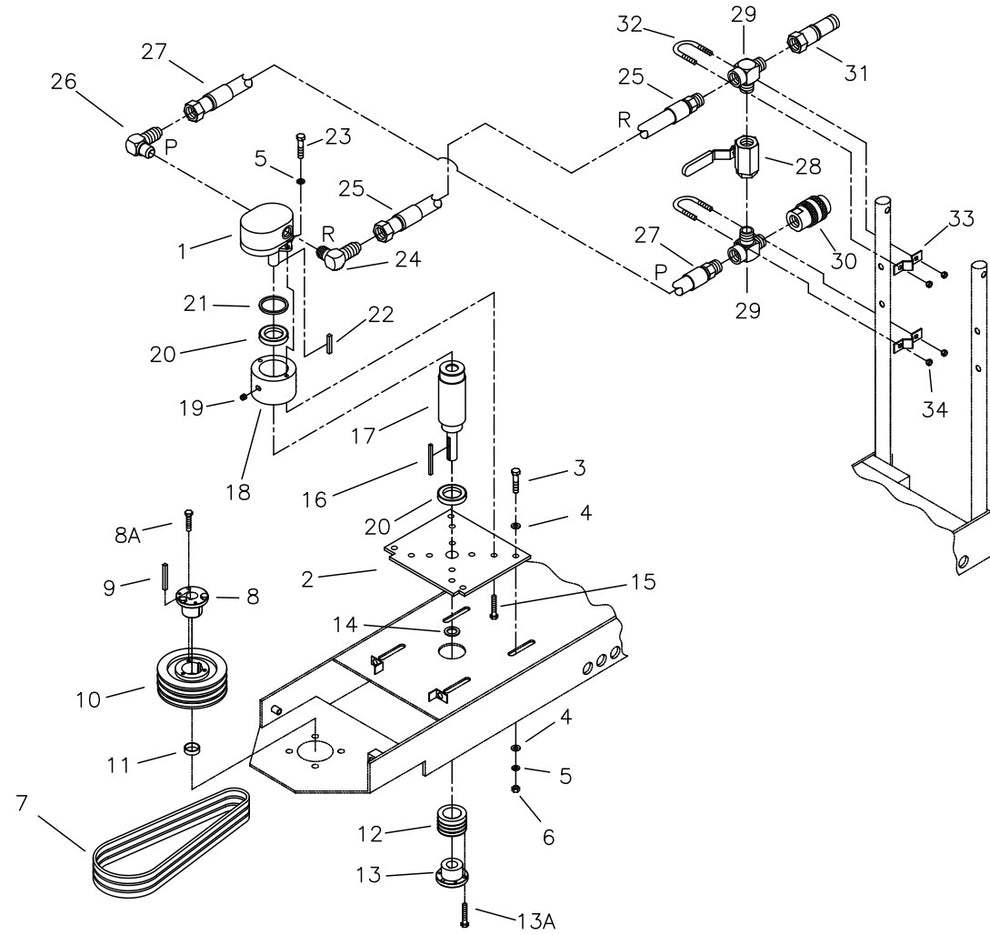

Hydraulic Motor Group Assembly Parts For CC100 Single Headed Floor Grinder By Diamond Products

Hydraulic Motor Group Assembly Parts For CC100 Single Headed Floor Grinder By Diamond Products

  • Hydraulic Motor Group Assembly Parts For CC100 Single Headed Floor Grinder By Diamond Products
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4277587 Motor, Hydraulic Danfoss 1.55 CU. IN. for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$1,602.81
2
6048335 Motor Adapter Plate for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$108.49
3
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2500032 V-Belt 4L-390 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$22.60
8
2501044B Key, 3/8 x 5/16 x 3/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
8A
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13A
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2501357 Key, 1/4" Sq., x 2.0" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
10
2501043 Sheave, 6.00-3 Groove for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$150.48
11
6041042 Spacer, Blade Shaft for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$11.26
12
2501045 Sheave, 3.00 - 3 Groove for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$164.40
13
2501058 Bushing, Taper Lock, 1-1/8" Bore for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$25.09
14
3200004 Seal, 1-1/8" x 2" x 1/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$37.66
15
2900235 Cap Screw, Flat Hd., 3/8-16 x 1" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$4.99
16
6010169 Key, 1/4" Sq. x 1-1/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
17
6048116 Hydraulic Spindle Shaft for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$468.27
18
6041053 Hydraulic Block for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$205.92
19
2900062 Grease Fitting, 1/8" NPT for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
20
2500686 Bearing, 50mm x 90mm x 20mm for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$33.48
21
4699901 Shim for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$33.52
22
6048229 Key, 3/16" Sq. x 1-1/4" for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$2.99
23
2900357 3/8-16 x 1.50" SHCS for CS-2000-100 CURB SAW Core Cut by Diamond Products
$3.99
24
3200111 Elbow, Male, 3/4" JIC TO 1" Pipe for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$30.86
25
6048136 Hose, 3/4 x 28" (Return) for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$184.14
26
3200110 Elbow, Male, 3/4" JIC TO 1/2" Pipe for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$23.67
27
6048135 Hose, 3/4 x 20" (Pressure) for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$111.00
28
3200005 Valve, 3/4" Ball for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$155.43
29
3200083 Tee, 3/4" Pipe Run for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$42.43
30
3200100 Coupler, 3/4" Q.D. for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$324.72
31
3200101 Nipple, 3/4" Q.D. for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$129.69
32
2900379 U-Bolt, 1/4"-20 for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$4.99
33
6048155 Clamp for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
34
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
