Description
Description:

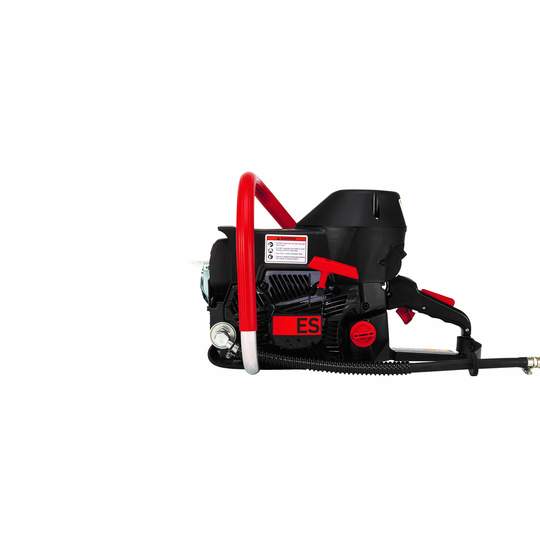

Built to provide a combination of performance and portability for cutting in-ground utility pipe, the 680ES-PG Gas Power Cutter with PowerGrit® chain will change the way you cut pipe.
The 680ES PG allows you to cut up to 10 in. deep into ductile iron, cast iron, PVC, HDPE, and Insituform lining, and is also designed to fit the full line of FORCE3® Series chains.
With a quick switch of the guide bar, chain, and drive sprocket, you can use this power cutter in masonry, stone, and even reinforced concrete.
The 680ES-PG may be the most cost-effective, versatile tool in your arsenal.
Features:
- Operates FORCE3™ diamond chain up to 14”
- Requires 20 PSI pressurized water. Do not use standard pump-up water cans as they do not provide enough water. Standard garden hose connection.
- Polyester air filer designed specifically for wet cutting
- Multi-function lever controls choke, throttle advance, run and stop modes
- Extended drive sprocket adapter offers easy chain assembly
- Deep cutting solution for obstructed or small openings
- Cut squares as small as 4” x 4”
- Easy-to-start in all weather
Specifications:
| Engine type |
2-stroke, Air-cooled |
| Displacement |
76.5 cc |
| Horsepower |
5 hp @ 9,500 rpm |
| Torque |
4.1 Nm (36. in-lbs) @ 6,500 rpm |
| Weight |
21 lbs powerhead only |
| Dimensions LxWxH |
18" x 11.5" x 10" |
| Starter |
Recoil, dust and water-resistant |
| Ignition |
Special water-resistant electronic |
| Fuel ratio |
50:1 gasoline-to-oil |
| Fuel capacity |
.23 gallons |
| Water supply requirement |
Minimum 20 psi |
| Water flow requirement |
1 gpm |
