Description

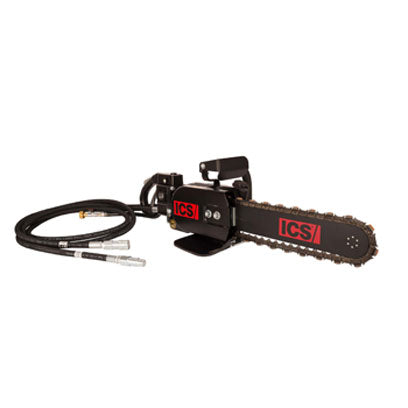

ICS 890PG 20" Hydraulic Powergrit Chainsaw for Cutting Ductile Pipe w/8ft Whips (8 GPM) 566711
Package Includes:
- Powerhead:- 890PG 566711
- Bar:- 20" (50.80cm) 529767
- Chain:- 20" Diamond chain
Available options for chain:
531749 ICS 20" Force4 Concrete Chainsaw chain
531751 ICS 20" Premium L-Long Life chain
531741 ICS 20" Premium S-Fast Cut chain
531753 ICS 20" Abrasive Chainsaw chain
537765 ICS 20" Force4 Powergrit Chain
Description:
This 890F4 8 gpm Powerhead includes 579767 20in guide bar and 537765 20in PowerGrit diamond chain. it rated at 11.5 hp and 122 in-lbs of torque. It has a noise level of 107 dB @ 3 ft and 2 meters/second in the front handle and 6 meters/second in the rear rear handle. This package is set ups to cut Ductile Iron Pipe, Cast Iron Pipe, PVC Pipe, HDPE Pipe, Insituform Pipe Lining. This powerhead can also be matched up with a 10in, 15in, 20in, & 25in concrete cutting diamond chain.
Features:
- Redesigned rear handle offers improved ergonomic cutting and greater durability
- 3 scratch resistant bubble levels for more accurate vertical and horizontal cutting
- New drive sprocket design allows for quick replacement in the field
- Universal motor across 890 series saw platforms and compatible with ICS 880 series saw
- Available with 1’ and 8’ hoses; ½” quick disconnects included for convenience
- New secondary water shut off valve for flow metering and water conservation
Specifications:
| 8 GPM Motor |
|
| Weight |
27.3 lbs with 15" bar and chain |
| Bar length |
Up to 25" |
| Motor speed |
6,100 rpm |
| Powerhead dimensions LxWxH |
23" x 10.5" x 9.5" |
| Torque |
122 in-lbs |
| Horsepower |
11.5 hp |
| Hydraulic supply |
8 gpm @ 2,500 psi |
| Nose level |
107 dB @ 3 ft |
| Water supply |
Minimum 20 psi |
| 12 GPM Motor |
|
| Weight |
27.3 lbs with 15" bar and chain |
| Bar length |
Up to 25" |
| Motor speed |
6,500 rpm |
| Powerhead dimensions |
23" x 10.5" x 9.5" |
| Torque |
170 in-lbs |
| Horsepower |
17.5 hp |
| Hydraulic supply |
12 gpm @ 2,500 psi |
| Noise level |
98 dB @ 3 ft |
| Water supply |
Minimum 20 psi |
