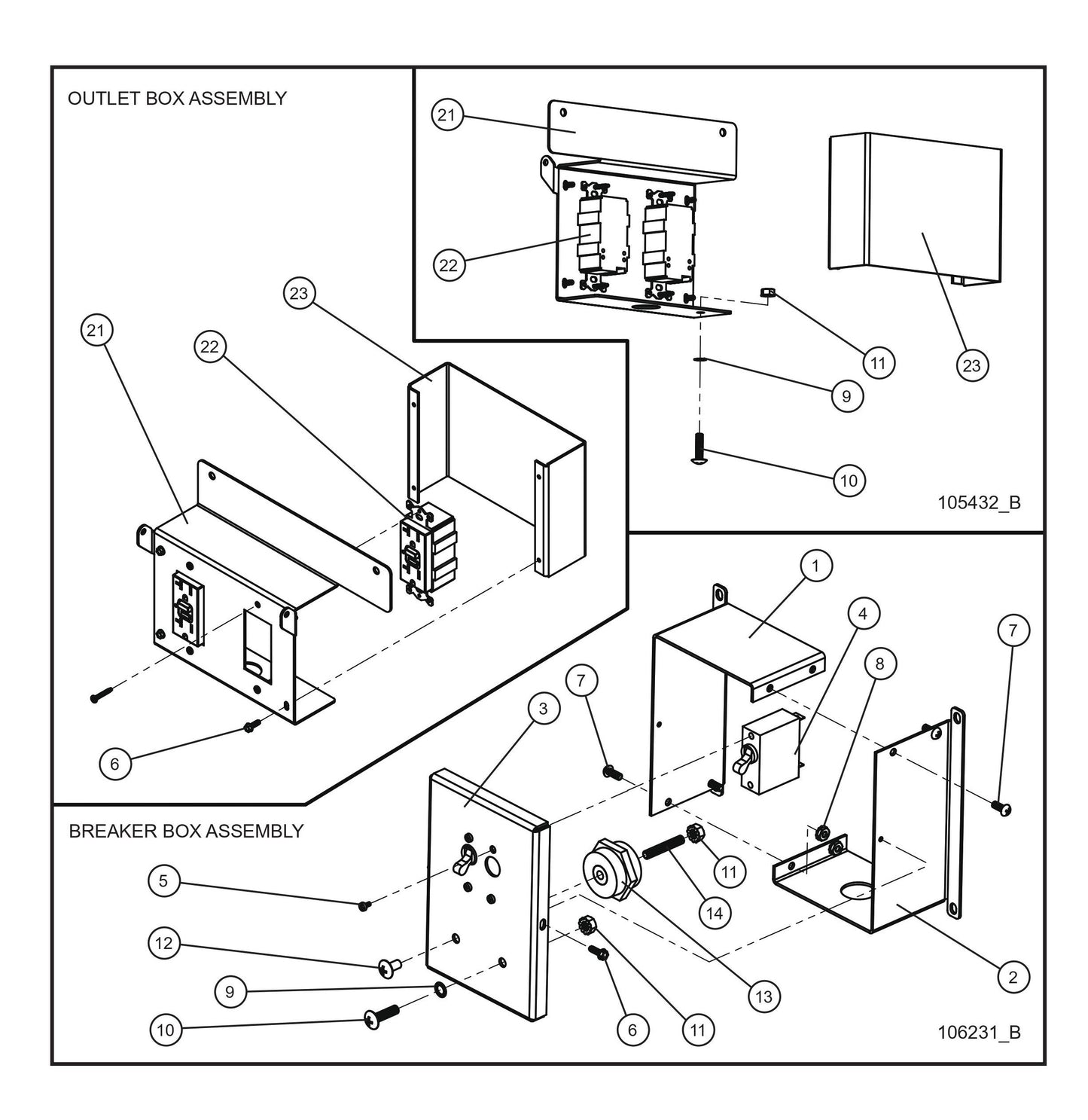

Internal GFCI Outlet Group (Fig 2) Parts By Allmand

Internal GFCI Outlet Group (Fig 2) Parts By Allmand

  • Internal GFCI Outlet Group (Fig 2) Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
106241P Top Cover Breaker Box for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
2
106242P Bottom Breaker Box for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
3
106240P Face Plate Breaker Box for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
4
330453 20A Spst Breaker Switch for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$83.10
5
041018 #6-32 X 1/4 Ph-Round Head Ms Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
6
041029 #8-32 X 1/2 Hex Washer Head for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
7
041024 #10-24 X 1/2 Ph-Round Head Ms Ss for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
8
044016 #10-24 Keps Hex Nut Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
9
043050 1/4 Int’L Tooth Lock Washer for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
10
041080 1/4-20 X 1 Ph-Truss Head Ms Ss for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
11
044021 1/4-20 Keps Hex Nut Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
12
041078 1/4-20 X 1/2 Ph-Truss Head Ms Ss for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
13
106318 Low Voltage Insulator 1-1/4”, 1/4-20 for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
14
045003 1/4-20 X 1 1/2 Stud Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
15
020140 Wire 12 Awg Black X 36.00 for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
16
020130 Wire 12 Awg Red X 36.00 for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
17
020135 Wire 12 Awg Green X 36.00 for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$4.49
18
022323 Term Ring 10-12 Awg #8 for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$4.49
19
022095-35 Term 1/4 Eye 10-12 Awg for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
20
106086 Internal Gfci Outlet Schematic for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
21
105433P Face Gfci Outlet Box for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
22
330499 20A Gfci Receptacle for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
23
105435P Rear Cover Outlet Box for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
