JCW-2003-0MHB, JCW-2003-0MVB, JCW-2504-0MHB, JCW-2504-0MVB, JCW-2703-0MHB (sn:0-10070000) Pump Assembly Parts by Mi-T-M

JCW-2003-0MHB, JCW-2003-0MVB, JCW-2504-0MHB, JCW-2504-0MVB, JCW-2703-0MHB (sn:0-10070000) Pump Assembly Parts by Mi-T-M

    1 0
    100% genuine product
    100% genuine product
    Authorised dealer
    Authorised dealer
    Ref. Product details Price Qty Action
    5
    46-0754 Crankshaft BY MITM
    		Call for Price call for price call for price
    6
    39-0086 Plug Brass for MiTM Air Compressors by MiTM 390086
    		$10.77
    8
    27-8888 Screw for MiTM Air Compressors by MiTM 278888
    		$8.93
    18
    28-1027 Slinger Washer for MiTM Air Compressors by MiTM 281027
    		$8.93
    22
    30-6016 Nut for MiTM Air Compressors by MiTM 306016
    		$8.75
    30
    25-0399 O-Ring for MiTM Air Compressors by MiTM 250399
    		Call for Price call for price call for price
    47
    27-8875 Screw for MiTM Air Compressors by MiTM 278875
    		$19.58
    48
    29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
    		$7.43
    50
    8-0437 Unloader-Inlet Bypass Adaptor for AC2-PR09-30M Air Compressor by Mi-T-M 80437
    		$141.54
    51
    8-0440 Unloader Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80440
    		$29.57
    52
    8-0438 Unloader-Adaptor-Steel for AC2-PR09-30M Air Compressor by Mi-T-M 80438
    		$67.94
    53
    8-0439 Unloader Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80439
    		$19.31
    55
    8-0441 Unloader-Nipple-Bypass Seat for AC2-PR09-30M Air Compressor by Mi-T-M 80441
    		$109.91
    57
    8-0442 Unloader Piston for AC2-PR09-30M Air Compressor by Mi-T-M 80442
    		$126.87
    61
    8-0443 Unloader-Poppet-Stainless for AC2-PR09-30M Air Compressor by Mi-T-M 80443
    		$90.33
    62
    8-0444 Unloader-Pin-Stainless for AC2-PR09-30M Air Compressor by Mi-T-M 80444
    		$14.42
    63
    8-0445 Unloader-Spring Button for AC2-PR09-30M Air Compressor by Mi-T-M 80445
    		$21.80
    64
    8-0474 Unloader Spring Guide for AC2-PR09-30M Air Compressor by Mi-T-M 80474
    		$168.63
    65
    49-0132 Spring Unloader for AC2-PR09-30M Air Compressor by Mi-T-M 490132
    		$23.24
    66
    8-0475 Unloader Spring Button for AC2-PR09-30M Air Compressor by Mi-T-M 80475
    		$67.05
    67
    8-0476 Unloader Adjustment Barrel for AC2-PR09-30M Air Compressor by Mi-T-M 80476
    		$169.01
    68
    8-0477 Unloader Pin Stainless for AC2-PR09-30M Air Compressor by Mi-T-M 80477
    		$13.20
    69
    7-0141 Unloader Knob for MiTM Air Compressors by MiTM 70141
    		$16.95
    70
    30-3025 Nut for MiTM Air Compressors by MiTM 303025
    		$7.43
    71
    27-8433 Bolt for MiTM Air Compressors by MiTM 278433
    		$12.12
    72
    7-0142 Unloader Cap for MiTM Air Compressors by MiTM 70142
    		$7.43
    73
    8-0448 Adapter for MiTM Air Compressors by MiTM 80448
    		Call for Price call for price call for price
    74
    8-0449 Unloader-Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80449
    		$16.64
    75
    8-0450 Unloader-Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80450
    		$27.72
    76
    8-0451 Unloader-Body Brass for AC2-PR09-30M Air Compressor by Mi-T-M 80451
    		$182.00
    77
    25-0437 O-Ring 5.94 X 3.53 for AC2-PR09-30M Air Compressor by Mi-T-M 250437
    		$4.28
    78
    8-0454 Unloader-Check Valve for AC2-PR09-30M Air Compressor by Mi-T-M 80454
    		$48.74
    79
    49-0123 Spring Unloader Check Valve for AC2-PR09-30M Air Compressor by Mi-T-M 490123
    		$11.82
    81
    8-0497 Nut for MiTM Pressure Washers by MiTM 80497
    		$39.27
    82
    8-0498 Injector Adapter-1/2G X 3/8G for AC2-PV09-20M Air Compressor by Mi-T-M 80498
    		$111.41
    85
    8-0499 Injector Barb W/Adj. Knob for AC2-PV09-20M Air Compressor by Mi-T-M 80499
    		$69.68
    88
    7-0152 Adjustable Detergent Knob for MiTM Pressure Washers by MiTM 70152
    		$56.70
    -
    8-0456 Unloader for AC2-PR09-30M Air Compressor by Mi-T-M 80456
    		$315.63
    -
    70-0180 Kit Unloader Repair for AC2-PR09-30M Air Compressor by Mi-T-M 700180
    		$79.82
    -
    70-0196 Kit- Detergent Injector for AC2-PV09-20M Air Compressor by Mi-T-M 700196
    		$132.77
    1
    26-0250 Oil Seal-25X52X7Mm for AC1-HE02-05M by Mi-T-M 260250
    		$22.62
    2
    46-0667 Retaining Ring for AC1-HE02-05M by Mi-T-M 460667
    		$27.90
    3
    48-0059 Bearing Needle for AC1-HE02-05M by Mi-T-M 480059
    		$87.81
    4
    43-0091 Key 8 X 7 X 40Mm for AC1-HE02-05M by Mi-T-M 430091
    		$12.87
    7
    25-0325 O-Ring 1,78 X 14Mm for AC1-HE02-05M by Mi-T-M 250325
    		$3.99
    9
    46-0719 Pump Cover Crankcase for AC1-HE02-05M by Mi-T-M 460719
    		$75.45
    10
    25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370
    		$4.85
    12
    46-0824 Pump Reflector Oil for AC1-HE02-05M by Mi-T-M 460824
    		$4.85
    13
    46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671
    		$5.99
    14
    25-0398 O-Ring 107.62 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250398
    		$5.99
    15
    46-0720 Pump-Connecting Rod-Aluminum for AC1-HE02-05M by Mi-T-M 460720
    		$39.30
    16
    46-0721 Pump Piston Pin for AC1-HE02-05M by Mi-T-M 460721
    		$11.57
    17
    46-0722 Pump Plunger Rod for AC1-HE02-05M by Mi-T-M 460722
    		$65.04
    19
    25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371
    		$3.99
    20
    46-0723 Pump Piston Ceramic for AC1-HE02-05M by Mi-T-M 460723
    		$99.92
    21
    26-0187 Washer/Gasket for AC1-HE02-05M by Mi-T-M 260187
    		$3.99
    23
    39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
    		$27.14
    24
    46-0724 Pump Crankcase for AC1-HE02-05M by Mi-T-M 460724
    		$245.32
    25
    48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063
    		$83.17
    26
    46-0732 Pump Retainer for AC1-HE02-05M by Mi-T-M 460732
    		$2.85
    27
    46-0676 Retaining Ring for AC1-HE02-05M by Mi-T-M 460676
    		$7.40
    28
    46-0725 Pump Bearing Cap for AC1-HE02-05M by Mi-T-M 460725
    		$18.73
    29
    26-0193 Seal Oil for AC1-HE02-05M by Mi-T-M 260193
    		$22.85
    31
    46-0726 Pump Retainer-Low Pressure for AC1-HE02-05M by Mi-T-M 460726
    		$19.45
    33
    46-0728 Pump Packing Retainer for AC1-HE02-05M by Mi-T-M 460728
    		$23.53
    37
    39-0088 Plug Steel 1/2-14Bspp for AC1-HE02-05M by Mi-T-M 390088
    		$20.25
    38
    46-0730 Pump Manifold Brass for AC1-HE02-05M by Mi-T-M 460730
    		$377.59
    39
    39-0087 Valve Cap M22 1.50P for AC1-HE02-05M by Mi-T-M 390087
    		$38.56
    40
    25-0160 O-Ring 17.86 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250160
    		$5.99
    42
    25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
    		$4.85
    49
    39-0097 Plug Brass for AC1-HE02-05M by Mi-T-M 390097
    		$6.96
    36
    25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
    		$4.85
    80
    25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
    		$4.85
    -
    70-0181 Kit High Pressure Seal 15Mm for AC1-HE02-05M by Mi-T-M 700181
    		$142.52
    -
    70-0182 Kit Support Ring 15 for AC1-HE02-05M by Mi-T-M 700182
    		$22.95
    -
    70-0161 Kit Valve for AC1-HE02-05M by Mi-T-M 700161
    		$87.87
    • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
    View full details

    Frequently asked questions

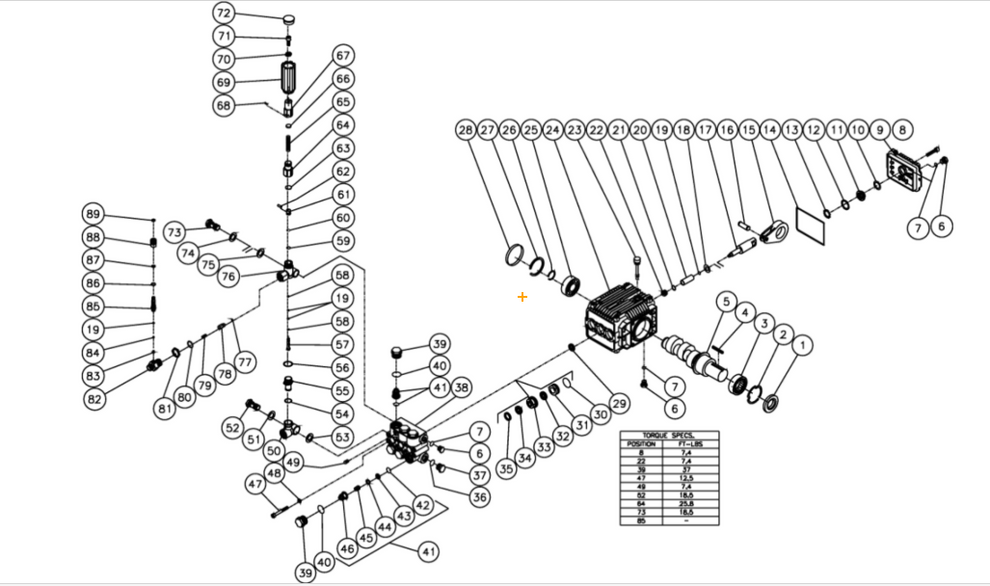

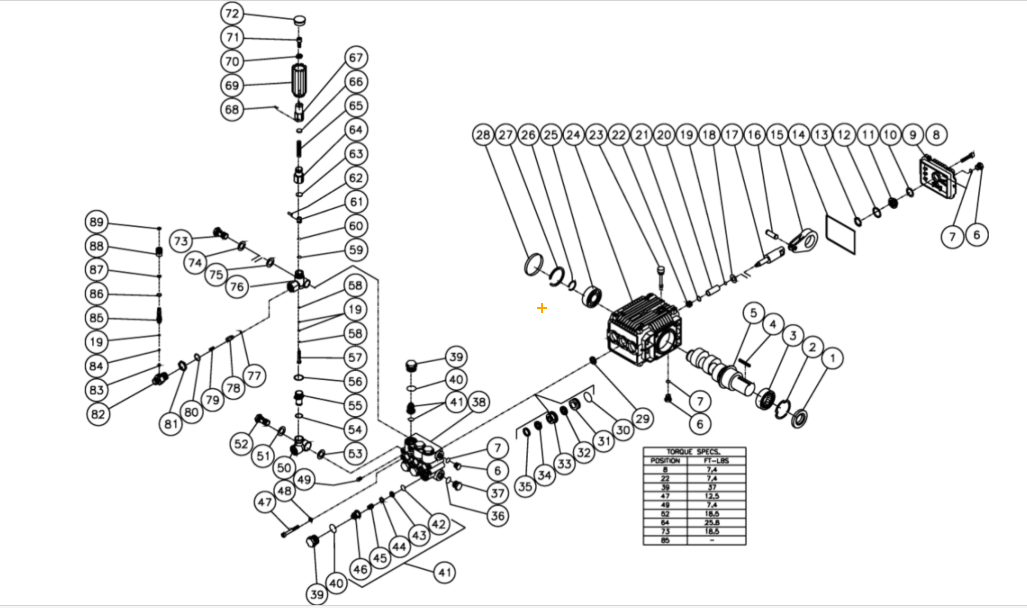

    How do I use this diagram?

    Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

    How do I make sure a part fits my machine?

    Confirm your model/series and serial number range on the product page. Many
    manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

    What do the Ref. numbers and quantities mean?

    The Ref. # points to the callout on the drawing. Qty shows how many of that item your
    machine uses. Parts are sold individually unless noted as a kit.

    Are these genuine parts?

    Yes, we supply genuine OEM parts for all our brands. If a part has an approved
    replacement, we ship the latest superseded revision.

    Why does my original part number look different?

    Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

    I can’t find a part in this diagram, can you still get it?

    Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

    Is there a warranty on these parts?

    Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
    the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
