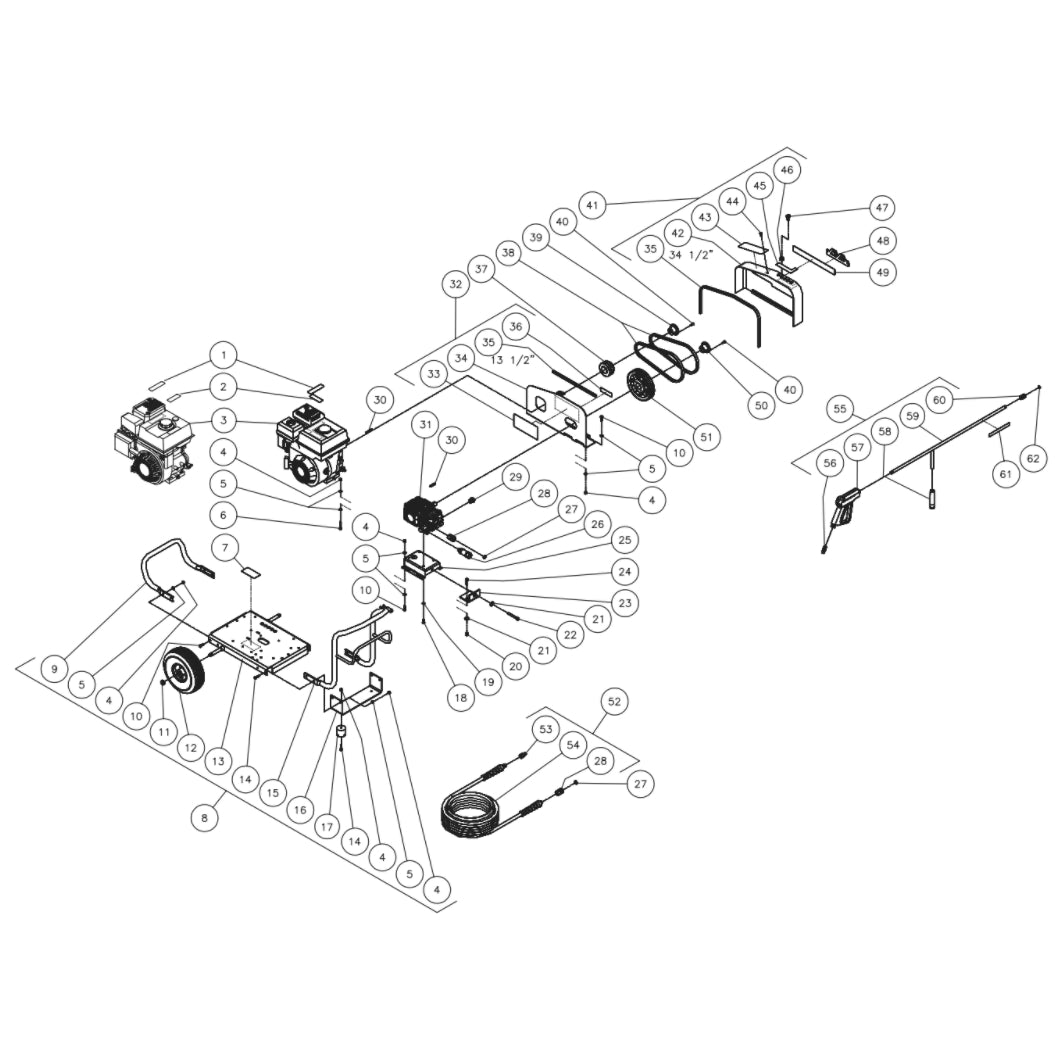

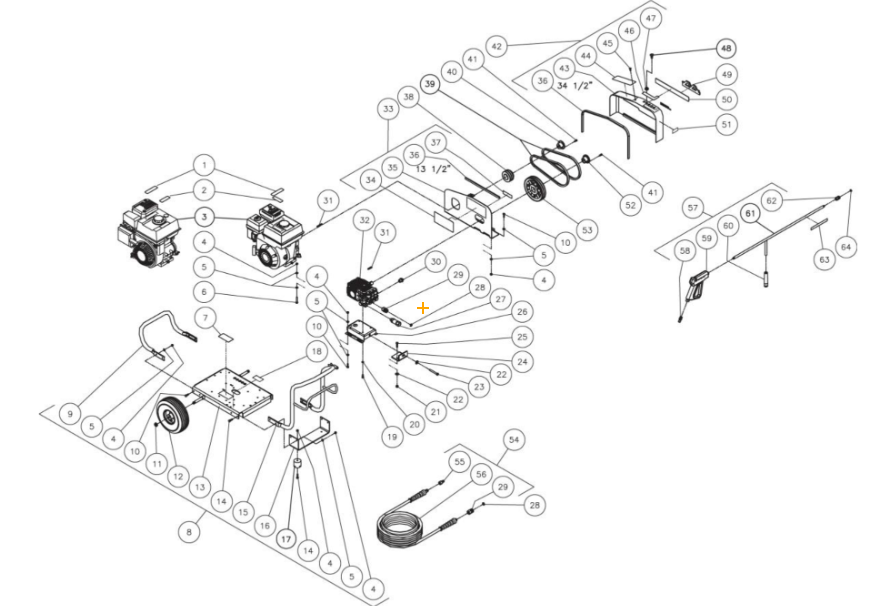

JCW-2403-0MHB (sn:0-99999999) Frame Assembly Parts by Mi-T-M

JCW-2403-0MHB (sn:0-99999999) Frame Assembly Parts by Mi-T-M

  • JCW-2403-0MHB (sn:0-99999999) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
3
1-0088 Engine Honda 6.5 Hp Recoil for AC1-PV06-20M (AFTER S/N 20005189) Air Compressor by Mi-T-M 10088
$1,116.41
3
1-0133 Engine-Subaru 7Hp Recoil for ACS Series Air Compressor by Mi-T-M 10133
$1,031.30
4
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
5
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
6
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
8
851-0212 Base Plate Assembly (5-18) for MiTM Pressure Washers 8510212
Call for Price call for price call for price
9
7-0103A01 Handle- Rear for MiTM Pressure Washers 70103A01
$135.75
11
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
12
14-0130 Wheel 10" for Mi-T-M CA-2703-8MRB by MiTM 140130
$46.27
14
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
15
7-0100A01 Handle- Front for MiTM Pressure Washers 70100A01
$298.92
16
13-0002A01 Underbracket for MiTM Pressure Washers 130002A01
$111.72
17
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
18
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
23
13-0005A01 Brace Tightener for MiTM Pressure Washers 130005A01
$58.86
27
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
28
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
29
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
31
43-0073 Key 3/16" X 1-7/8" for AC1-HE15-05M Air Compressor by Mi-T-M 430073
$8.06
32
3-0228 Pump Ar 2700 Psi 3.5 Gpm for AC2-PR09-30M Air Compressor by Mi-T-M 30228
$958.97
33
851-0213 Beltguard Back Assembly (24-27) for MiTM Pressure Washers 8510213
$275.18
36
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
38
10-0029 Sheave 2Ak32H for AC2-PH11-30M Air Compressor by Mi-T-M 100029
$67.56
39
11-0023 Cog Belt Ax34 for AC2-PV09-20M Air Compressor by Mi-T-M 110023
$36.78
40
9-0009 Bishing H X 3/4 Motor for MI-T-M CD-1002-2MUH by MiTM 90009
$18.08
42
851-0313 Beltguard Cover Assembly (Inc. 29-34) for MiTM Pressure Washers 8510313
$206.94
45
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
48
18-0392 Nozzle 00035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180392
$11.93
48
18-0393 Nozzle 15035 Qc for AD1-PH55-08M Air Compressor by Mi-T-M 180393
$11.93
478
18-0395 Nozzle 25035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180395
$11.93
48
18-0396 Nozzle 40035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180396
$11.93
51
34-3553 Decal - Made In Usa for MiTM Pressure Washers by MiTM 343553
$2.99
53
10-0035 Sheave 2Ak74H for AC2-PR09-08AB Air Compressor by Mi-T-M 100035
$119.25
54
851-0338 Assy Hose W/Qc 3000 Psi (Inc. 21-24) for MiTM Pressure Washers 8510338
$534.65
56
15-0209 Hose 3/8X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150209
$151.52
57
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
58
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
59
16-0001 Gun for MiTM Pressure Washers 160001
$151.43
60
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
61
16-0418 Wand-36" W/Handle Chrome for AC2-PR09-30M Air Compressor by Mi-T-M 160418
$38.88
62
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
64
25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122
$4.68
10
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
19
29-0054 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290054
$1.99
20
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
21
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
22
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
24
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
25
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
30
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
41
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
47
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
52
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
55
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
