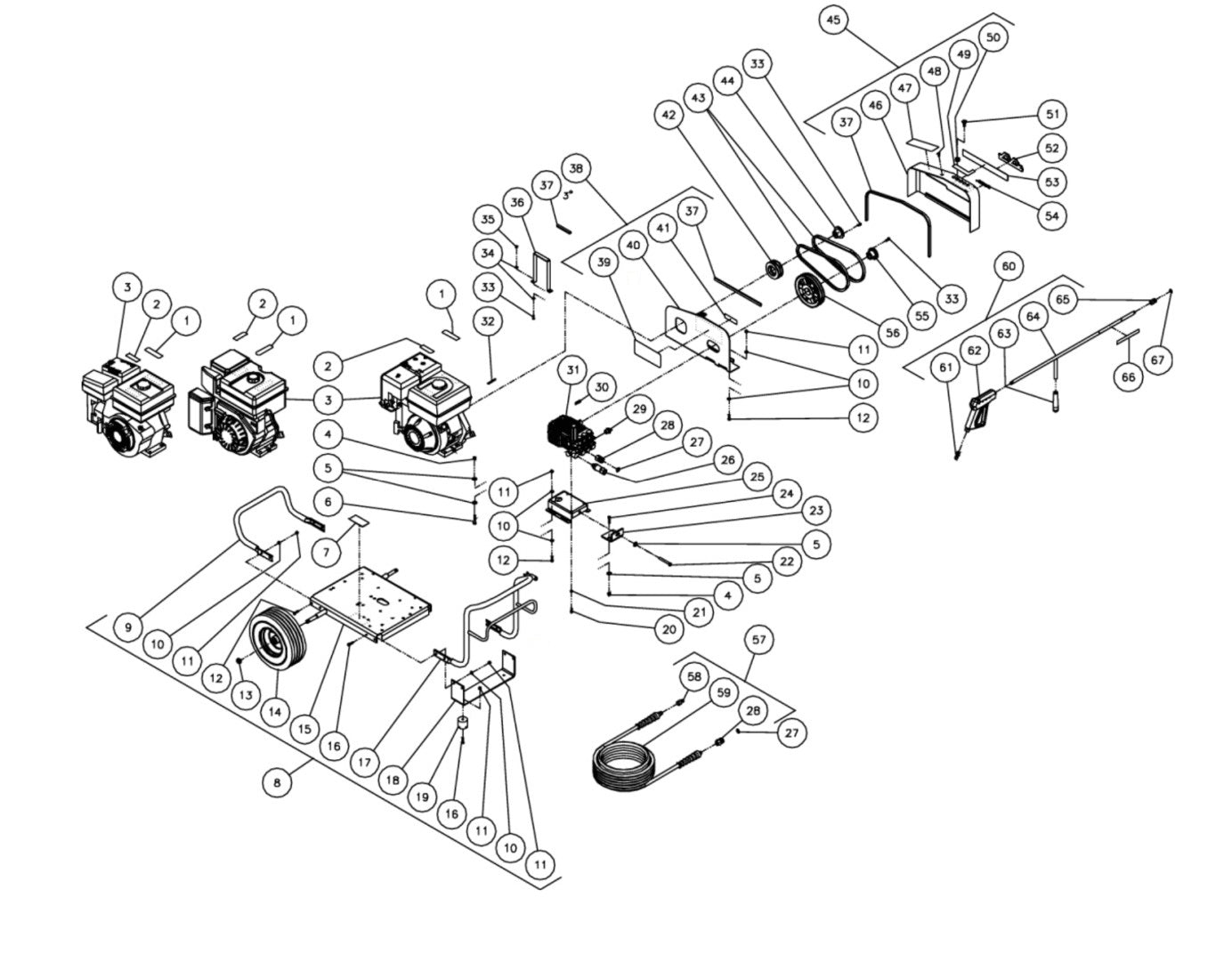

JCW-3003-0MHB/0MVB/0MRB (sn:10070001-10202373) Frame Assembly Parts by Mi-T-M

JCW-3003-0MHB/0MVB/0MRB (sn:10070001-10202373) Frame Assembly Parts by Mi-T-M

  • JCW-3003-0MHB/0MVB/0MRB (sn:10070001-10202373) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
3
1-0065 Engine Honda 9.0 Hp Recoil for AC2-SH11-30M Air Compressor by Mi-T-M 10065
$1,763.55
3
1-0070 Engine Vanguard 9Hp New for AC2-PE05-08AB Air Compressor by Mi-T-M 10070
$1,147.40
3
1-0134 Engine- Subaru 9 Hp (Cba-2504-0Mrb) for MiTM Air Compressors by MiTM 10134
$1,271.51
8
851-0329 Assembly 5-0090K01 Base for AC2-SH11-30M Air Compressor by Mi-T-M 8510329
$438.92
9
7-0104A01 Rear Handle for MiTM Pressure Washers 70104A01
$126.84
10
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
11
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
13
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
14
14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006
$128.67
16
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
17
7-0101A01 Front Handle for MiTM Pressure Washers 70101A01
$324.50
18
13-0042A01 Underbracket for MiTM Pressure Washers 130042A01
$92.19
19
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
20
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
23
13-0005A01 Brace Tightener for MiTM Pressure Washers 130005A01
$58.86
25
5-0130A01 Pump Bracket for MiTM Pressure Washers 50130A01
$124.20
26
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
27
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
28
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
31
3-0176 Pump for MiTM Pressure Washers 30176
Call for Price call for price call for price
32
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
34
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
36
6-0054A01 Finger Guard for MiTM Pressure Washers 60054A01
Call for Price call for price call for price
37
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
38
851-0213 Beltguard Back Assembly (24-27) for MiTM Pressure Washers 8510213
$275.18
42
10-0029 Sheave 2Ak32H for AC2-PH11-30M Air Compressor by Mi-T-M 100029
$67.56
43
11-0020 Cog Belt Ax33 for AC2-PV09-20M Air Compressor by Mi-T-M 110020
Call for Price call for price call for price
45
851-0313 Beltguard Cover Assembly (Inc. 29-34) for MiTM Pressure Washers 8510313
$206.94
48
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
49
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
51
18-0257 Nozzle- 0003.5 for MiTM Air Compressors by MiTM 180257
Call for Price call for price call for price
51
18-0258 Nozzle- 1503.5 for MiTM Air Compressors by MiTM 180258
$10.85
51
18-0259 Nozzle- 2503.5 for MiTM Air Compressors by MiTM 180259
$10.85
51
18-0260 Nozzle- 4003.5 for MiTM Air Compressors by MiTM 180260
$10.85
52
62-0086 Decal- Mi-T-M Small Logo for MiTM Air Compressors by MiTM 620086
Call for Price call for price call for price
53
34-0502 Decal- Mi-T-M Stripe for MiTM Air Compressors by MiTM 340502
Call for Price call for price call for price
54
34-0775 Decal- 3000 White Die Cut for MiTM Air Compressors by MiTM 340775
Call for Price call for price call for price
56
10-0035 Sheave 2Ak74H for AC2-PR09-08AB Air Compressor by Mi-T-M 100035
$119.25
57
851-0007 Pressure Hose Assembly (Inc. 31-33) for MiTM Air Compressors by MiTM 8510007
Call for Price call for price call for price
59
15-0003 Pressure Hose (3000 Psi) for MiTM Air Compressors by MiTM 150003
Call for Price call for price call for price
60
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
61
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
62
16-0001 Gun for MiTM Pressure Washers 160001
$151.43
63
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
64
16-0120A01 Wand for MiTM Air Compressors by MiTM 160120A01
$54.74
65
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
67
25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122
$4.68
-
34-9017 Safety Decal Kit (Inc. 2-3, 40-41, 49, 63) for MiTM Air Compressors by MiTM 349017
Call for Price call for price call for price
4
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
5
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
6
27-0121 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270121
$1.99
12
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
21
29-0054 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290054
$1.99
22
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
24
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
29
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
30
43-0091 Key 8 X 7 X 40Mm for AC1-HE02-05M by Mi-T-M 430091
$12.87
33
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
35
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
44
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
50
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
55
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
58
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
