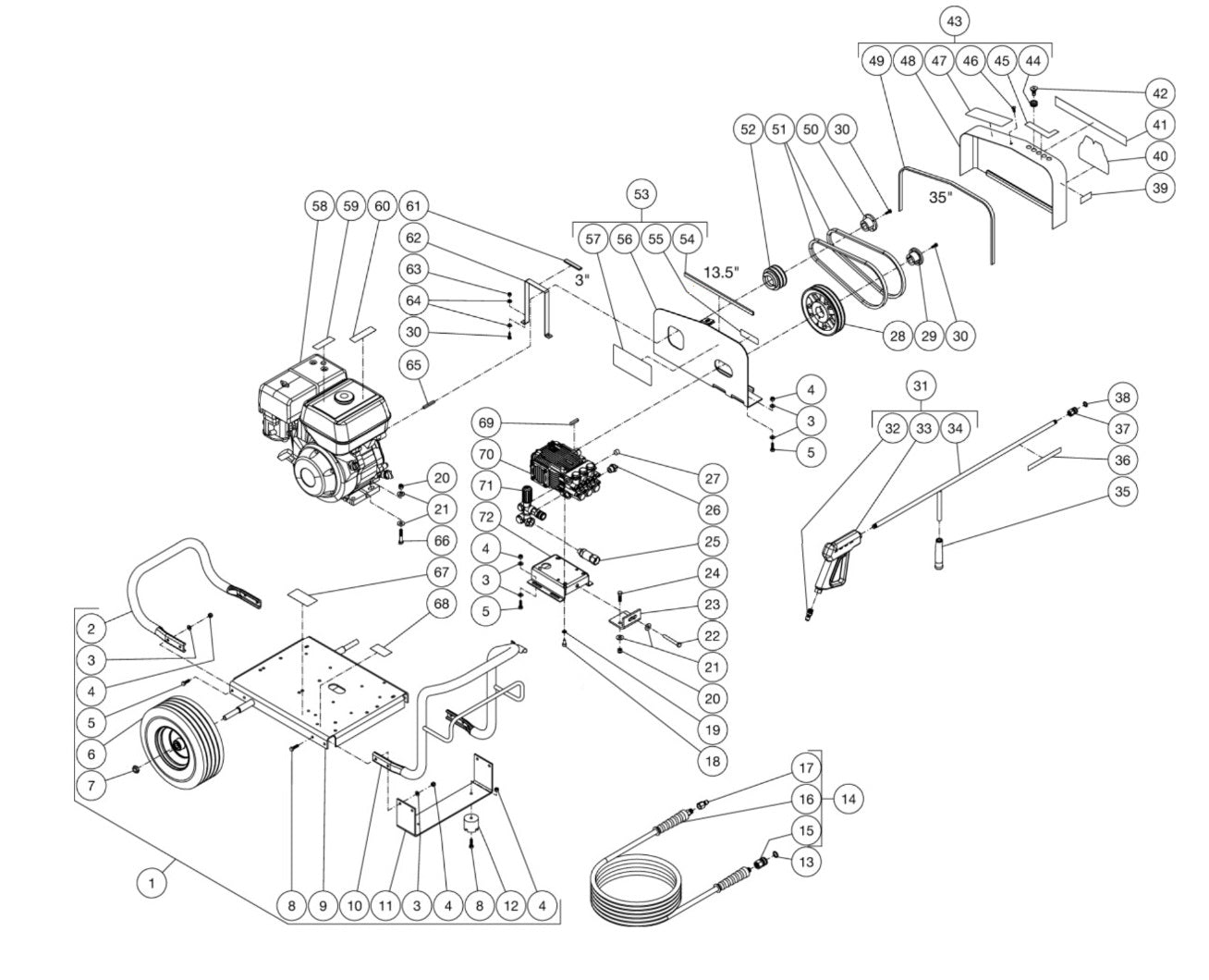

JCW-3003-2MHB (sn:0-99999999) Frame Assembly Parts by Mi-T-M

JCW-3003-2MHB (sn:0-99999999) Frame Assembly Parts by Mi-T-M

  • JCW-3003-2MHB (sn:0-99999999) Frame Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
851-0329 Assembly 5-0090K01 Base for AC2-SH11-30M Air Compressor by Mi-T-M 8510329
$438.92
2
7-0175A01 Handle for MiTM Pressure Washers 70175A01
$126.84
3
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
4
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
7
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
8
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
10
7-0174A01 Handle for MiTM Pressure Washers 70174A01
$324.50
11
13-0137A01 Underbracket for MiTM Pressure Washers 130137A01
$119.60
12
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
13
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
14
851-0338 Assy Hose W/Qc 3000 Psi (Inc. 21-24) for MiTM Pressure Washers 8510338
$534.65
15
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
16
15-0209 Hose 3/8X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150209
$151.52
18
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
23
13-0005A01 Brace Tightener for MiTM Pressure Washers 130005A01
$58.86
25
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
27
23-0244 Plug 3/8 Hex Socket Head Brass for AC1-PR07-20M Air Compressor by Mi-T-M 230244
$19.70
28
10-0035 Sheave 2Ak74H for AC2-PR09-08AB Air Compressor by Mi-T-M 100035
$119.25
31
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
32
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
33
16-0001 Gun for MiTM Pressure Washers 160001
$151.43
34
16-0418 Wand-36" W/Handle Chrome for AC2-PR09-30M Air Compressor by Mi-T-M 160418
$38.88
35
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
37
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
38
25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122
$4.68
39
34-3553 Decal - Made In Usa for MiTM Pressure Washers by MiTM 343553
$2.99
42
18-0392 Nozzle 00035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180392
$11.93
42
18-0393 Nozzle 15035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180393
$11.93
42
18-0395 Nozzle 25035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180395
$11.93
42
18-0396 Nozzle 40035 Qc for AC2-SH08-20M Air Compressor by Mi-T-M 180396
$11.93
43
851-0313 Beltguard Cover Assembly (Inc. 29-34) for MiTM Pressure Washers 8510313
$206.94
46
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
49
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
61
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
51
11-0020 Cog Belt Ax33 for AC2-PV09-30M Air Compressor by Mi-T-M 110020
$31.85
52
10-0029 Sheave 2Ak32H for AC2-PH11-30M Air Compressor by Mi-T-M 100029
$67.56
53
851-0213 Beltguard Back Assembly (24-27) for MiTM Pressure Washers 8510213
$275.18
58
1-0162 Engine-Blk Honda 9.0Hp Recoil for AP1-PI55-08M (AFTER S/N 20005741) Air Compressor by Mi-T-M 10162
$1,649.78
62
6-0054A01 Finger Guard for MiTM Pressure Washers 60054A01
Call for Price call for price call for price
64
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
65
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
70
3-0308 Pump for MiTM Pressure Washers 30308
$1,216.20
71
8-0631 Unloader Assy W/ Qc & Banjo Bolts for AC2-SH11-30M Air Compressor by Mi-T-M 80631
$126.87
72
5-0130A01 Pump Bracket for MiTM Pressure Washers 50130A01
$124.20
-
71-1034 Decal Set-Cba/Jcw 3000 Psi Mitm for MiTM Pressure Washers 711034
$92.96
5
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
6
14-0150 Wheel-13" White-Super Duty for AC1-HE02-05M by Mi-T-M 140150
Call for Price call for price call for price
17
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
19
29-0054 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290054
$1.99
20
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
21
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
22
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
24
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
26
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
29
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
30
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
44
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
50
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
54
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
63
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
66
27-0121 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270121
$1.99
69
43-0091 Key 8 X 7 X 40Mm for AC1-HE02-05M by Mi-T-M 430091
$12.87
