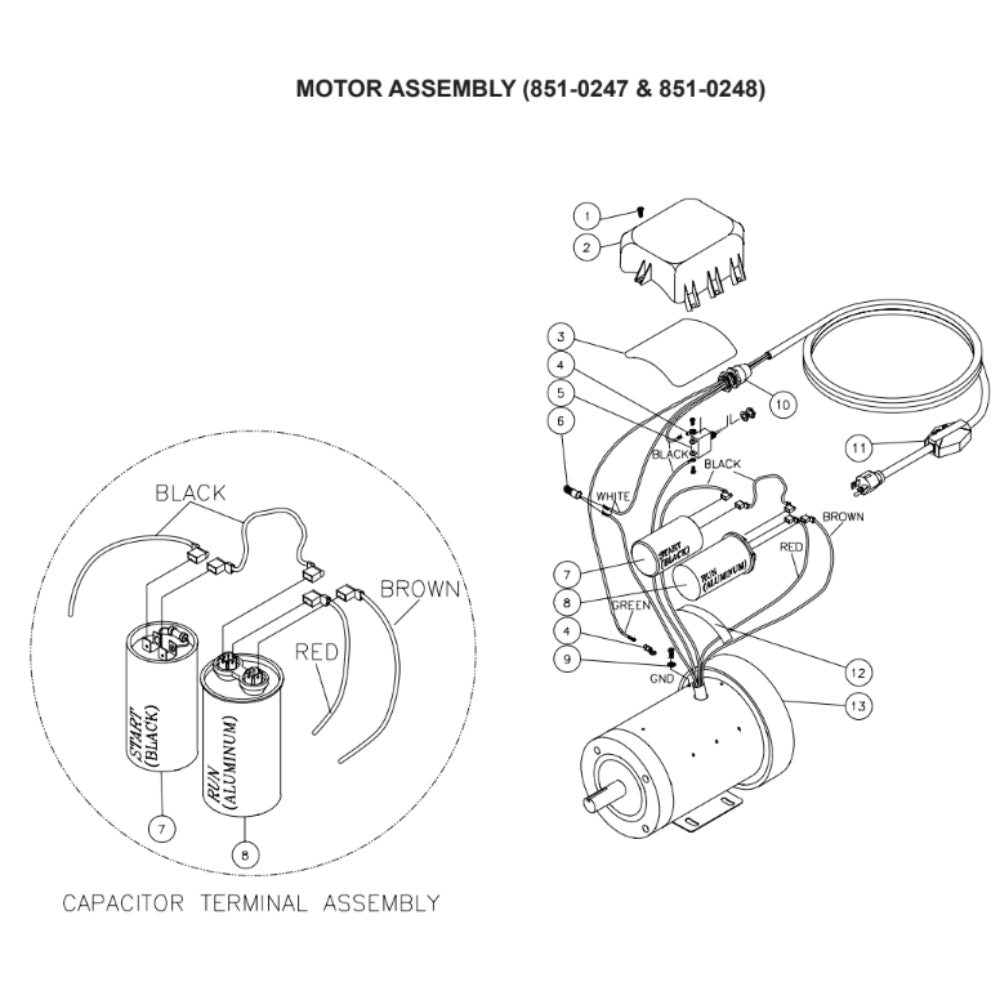

JP-1002-3ME1, JP-1502-3ME1 Motor Assembly Parts by Mi-T-M

JP-1002-3ME1, JP-1502-3ME1 Motor Assembly Parts by Mi-T-M

  • JP-1002-3ME1, JP-1502-3ME1 Motor Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8389 Hex Screw for MiTM Pressure Washers 278389
$5.93
2
52-0041 Motor Box for MiTM Pressure Washers 520041
Call for Price call for price call for price
3
25-0338 O-Ring for AC1-PE15-20M1 Air Compressor by Mi-T-M 250338
$5.99
4
32-0099 Terminal 14 Ga #10 Ring Blue for AC1-PE02-08M1 Air Compressor by Mi-T-M 320099
$1.99
5
32-0348 Switch 20 Amp Sealed for AM2-PE75-30M Air Compressor by Mi-T-M 320348
$135.90
6
32-0359 Crimped Wire Splice 18-12 for AC1-PE15-20M1 Air Compressor by Mi-T-M 320359
$2.85
7
32-0411 Capacitor-Start-2-0083 for AC1-PE15-20M1 Air Compressor by Mi-T-M 320411
$138.76
7
32-0412 Capacitor-Start-2-0084 for AM2-PH09-08AB Air Compressor by Mi-T-M 320412
$210.26
8
32-0413 Capacitor-Run 2-0083 & 2-0084 for AC1-PE15-20M1 Air Compressor by Mi-T-M 320413
$156.24
9
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
12
52-0042 Motor Box Strap for MiTM Pressure Washers 520042
$5.93
13
2-0084 Motor 2.0 Hp Ul-1776 Tefc 120V for MiTM Pressure Washers 20084
$1,092.77
-
851-0247 Assy Motor 1.5Hp Ul for AM2-PE75-30M Air Compressor by Mi-T-M 8510247
$1,035.20
-
851-0248 Assy Motor 2.0Hp Ul for AM2-PE75-30M Air Compressor by Mi-T-M 8510248
$1,175.13
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
