JP-2403-0MHB/0MVB (sn:0-10010521) Pump Assembly Parts by Mi-T-M

JP-2403-0MHB/0MVB (sn:0-10010521) Pump Assembly Parts by Mi-T-M

  • JP-2403-0MHB/0MVB (sn:0-10010521) Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8432 Screw for MiTM Air Compressors by MiTM 278432
$10.04
2
46-0715 Pump Flange for AM2-PR09-08AB Air Compressor by Mi-T-M 460715
$110.51
3
26-0192 Seal Oil for AC1-SE05-60M Air Compressor by Mi-T-M 260192
$63.32
6
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
7
46-0718 Pump Crankshaft for AM2-PH09-30M Air Compressor by Mi-T-M 460718
Call for Price call for price call for price
8
39-0086 Plug Brass for MiTM Air Compressors by MiTM 390086
$10.77
10
27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
20
28-1027 Slinger Washer for MiTM Air Compressors by MiTM 281027
$8.93
22
46-0723 Pump Piston Ceramic for AC1-SE05-60M Air Compressor by Mi-T-M 460723
$149.88
24
30-6016 Nut for MiTM Air Compressors by MiTM 306016
$8.75
32
25-0399 O-Ring for MiTM Air Compressors by MiTM 250399
Call for Price call for price call for price
49
27-8875 Screw for MiTM Air Compressors by MiTM 278875
$19.58
50
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
52
25-0519 O-Ring 23.47 X 2.62Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250519
$4.28
54
25-0389 O-Ring 17.17 X 1.78Mm for AC2-SH08-20M Air Compressor by Mi-T-M 250389
$7.28
55
8-0517 Banjo Bolt 1/2-14Bsp for AC2-SH11-30M Air Compressor by Mi-T-M 80517
$37.71
56
25-0406 O-Ring 4 X 2.5Mm for AM2-PY09-30M Air Compressor by Mi-T-M 250406
$4.28
57
8-0518 Check Valve for AM2-PY09-30M Air Compressor by Mi-T-M 80518
$25.91
58
49-0124 Spring-Unloader Check Valve for AM2-PR09-08AB Air Compressor by Mi-T-M 490124
$19.59
59
25-0407 O-Ring 12.42 X 1.78Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250407
$8.88
62
8-0520 Spring for AM2-PY09-30M Air Compressor by Mi-T-M 80520
$5.99
63
8-0521 Ball for AM2-PY09-30M Air Compressor by Mi-T-M 80521
$7.28
69
25-0338 O-Ring for AC1-PE15-20M1 Air Compressor by Mi-T-M 250338
$5.99
71
8-0516 Banjo Bolt 3/8-19Bsp for AC2-PR09-30M Air Compressor by Mi-T-M 80516
$45.06
73
8-0503 Valve Seat Sstainless Steel for AM2-PY09-30M Air Compressor by Mi-T-M 80503
$37.97
74
8-0477 Unloader Pin Stainless for AC2-PR09-30M Air Compressor by Mi-T-M 80477
$13.20
75
8-0413 Piston for AM2-PR09-08AB Air Compressor by Mi-T-M 80413
$84.72
78
25-0510 O-Ring I.D. 14X1.75Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250510
$7.28
79
8-0502 Piston Guide M18-1.00P for AM2-PY09-30M Air Compressor by Mi-T-M 80502
$70.16
81
25-0404 Backup Ring 8 X 1Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250404
$7.28
83
8-0501 Spring Button Brass for AM2-PY09-30M Air Compressor by Mi-T-M 80501
$7.28
84
49-0119 Spring 2700 Psi for AM2-PR09-08AB Air Compressor by Mi-T-M 490119
$19.31
85
8-0500 Adjustment Barrel Brass for AM2-PY09-30M Air Compressor by Mi-T-M 80500
$39.53
87
30-6024 Nut for MiTM Air Compressors by MiTM 306024
$4.43
88
001211253 Bolt for MVC88 Plate Tamper by Multiquip Mikasa
$5.20
-
70-0336 Kit O-Ring Repair for AM2-PY09-30M Air Compressor by Mi-T-M 700336
$27.38
-
8-0515 Unloader W/Detergent Injector for AM2-PR09-08AB Air Compressor by Mi-T-M 80515
$301.40
-
70-0338 Kit-Chemical Injector for AM2-PY09-30M Air Compressor by Mi-T-M 700338
$140.78
4
46-0667 Retaining Ring for AC1-HE02-05M by Mi-T-M 460667
$27.90
5
48-0059 Bearing Needle for AC1-HE02-05M by Mi-T-M 480059
$87.81
9
25-0325 O-Ring 1,78 X 14Mm for AC1-HE02-05M by Mi-T-M 250325
$3.99
11
46-0719 Pump Cover Crankcase for AC1-HE02-05M by Mi-T-M 460719
$75.45
12
25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370
$4.85
13
46-0670 Oil Sight Glass for AC1-HE02-05M by Mi-T-M 460670
$7.76
14
46-0824 Pump Reflector Oil for AC1-HE02-05M by Mi-T-M 460824
$4.85
15
46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671
$5.99
16
25-0398 O-Ring 107.62 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250398
$5.99
17
46-0720 Pump-Connecting Rod-Aluminum for AC1-HE02-05M by Mi-T-M 460720
$39.30
18
46-0721 Pump Piston Pin for AC1-HE02-05M by Mi-T-M 460721
$11.57
19
46-0722 Pump Plunger Rod for AC1-HE02-05M by Mi-T-M 460722
$65.04
21
25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371
$3.99
23
26-0187 Washer/Gasket for AC1-HE02-05M by Mi-T-M 260187
$3.99
25
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
26
46-0724 Pump Crankcase for AC1-HE02-05M by Mi-T-M 460724
$245.32
27
48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063
$83.17
28
46-0732 Pump Retainer for AC1-HE02-05M by Mi-T-M 460732
$2.85
29
46-0676 Retaining Ring for AC1-HE02-05M by Mi-T-M 460676
$7.40
30
46-0725 Pump Bearing Cap for AC1-HE02-05M by Mi-T-M 460725
$18.73
31
26-0193 Seal Oil for AC1-HE02-05M by Mi-T-M 260193
$22.85
33
46-0726 Pump Retainer-Low Pressure for AC1-HE02-05M by Mi-T-M 460726
$19.45
35
46-0728 Pump Packing Retainer for AC1-HE02-05M by Mi-T-M 460728
$23.53
38
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
39
39-0088 Plug Steel 1/2-14Bspp for AC1-HE02-05M by Mi-T-M 390088
$20.25
40
46-0730 Pump Manifold Brass for AC1-HE02-05M by Mi-T-M 460730
$377.59
41
39-0087 Valve Cap M22 1.50P for AC1-HE02-05M by Mi-T-M 390087
$38.56
42
25-0160 O-Ring 17.86 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250160
$5.99
44
25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
$4.85
51
39-0097 Plug Brass for AC1-HE02-05M by Mi-T-M 390097
$6.96
-
70-0181 Kit High Pressure Seal 15Mm for AC1-HE02-05M by Mi-T-M 700181
$142.52
-
70-0182 Kit Support Ring 15 for AC1-HE02-05M by Mi-T-M 700182
$22.95
-
70-0161 Kit Valve for AC1-HE02-05M by Mi-T-M 700161
$87.87
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

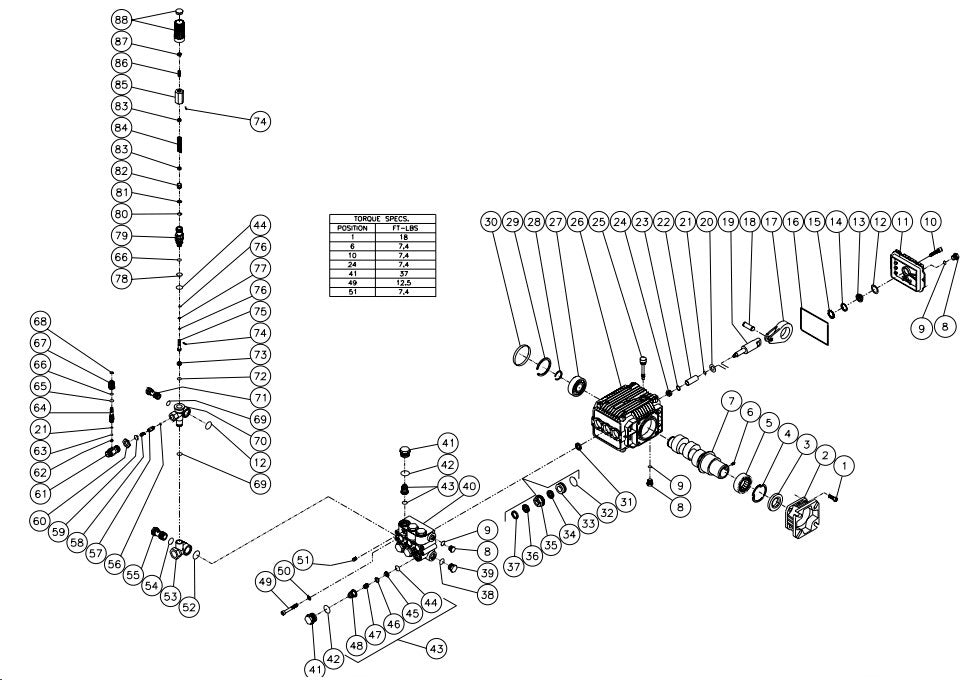

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
