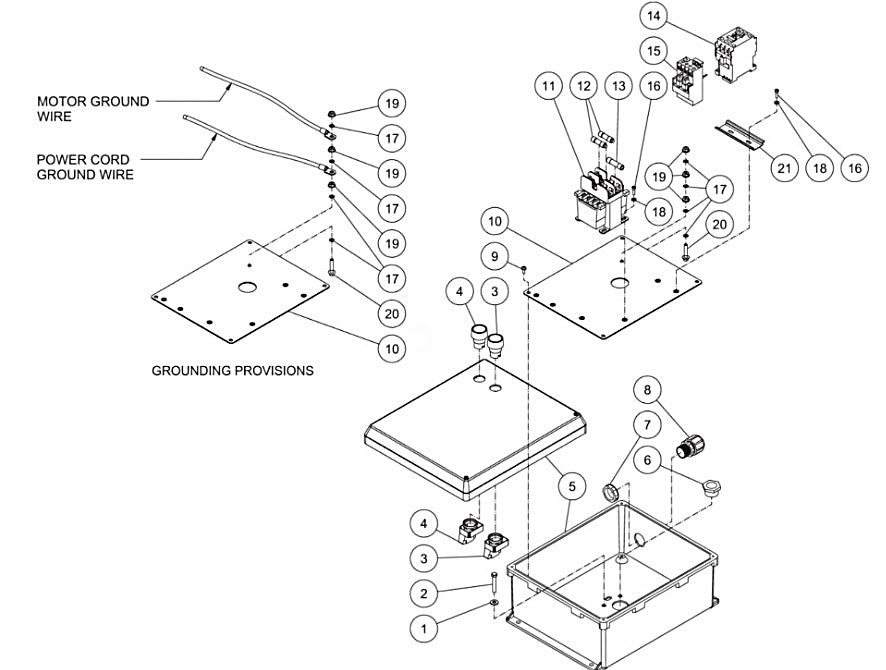

JP-2503-0ME3 (sn:0-10084649), (sn:10084650-10381724) Control Panel Assembly Parts by Mi-T-M

JP-2503-0ME3 (sn:0-10084649), (sn:10084650-10381724) Control Panel Assembly Parts by Mi-T-M

  • JP-2503-0ME3 (sn:0-10084649), (sn:10084650-10381724) Control Panel Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
2
27-0018 Bolt for MiTM Pressure Washers 270018
$7.65
3
32-0534 Switch Push Button for MiTM Pressure Washers 320534
$123.38
4
32-0610 Stop Switch- Red for MiTM Pressure Washers 320610
$172.65
5
32-0683 ELECTRIC BOX BY MITM
$546.14
6
32-0684 Chase Nipple 3/4" for AM2-SE05-30M Air Compressor by Mi-T-M 320684
$10.16
7
32-0292 LOCKNUT BY MITM
Call for Price call for price call for price
8
9-0046 Bushing 3/4 Elec .5-.75 Cord for AC1-PH65-08M Air Compressor by Mi-T-M 90046
$18.41
9
27-8922 Screw W/Electrical Box for MiTM Pressure Washers 278922
$7.65
10
20-0557A06 Electrical Panel for MiTM Pressure Washers 200557A06
$119.42
11
32-0313 Transformer-200-480V To 24Volt for AC1-PH65-08M Air Compressor by Mi-T-M 320313
Call for Price call for price call for price
12
32-0467 Fuse 0.5A for AC1-PH65-08M Air Compressor by Mi-T-M 320467
$29.14
13
32-0471 Fuse 0.6A for AC1-PH65-08M Air Compressor by Mi-T-M 320471
$33.74
14
32-0477 Contactor 23A 4 Pole for AC1-PH65-08M Air Compressor by Mi-T-M 320477
Call for Price call for price call for price
15
32-0478 Contactor 30A 3 Pole W/Aux for AC1-PR06-08M Air Compressor by Mi-T-M 320478
$175.82
16
32-0483 Overload Relay (230V) for MiTM Pressure Washers 320483
Call for Price call for price call for price
17
32-0484 Overload Relay (HHS-2004-0E2G/A) BY MITM
Call for Price call for price call for price
18
27-8835 Screw for MiTM Pressure Washers by MiTM 278835
$4.49
19
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
20
28-0010 Washer for MiTM Pressure Washers by MiTM 280010
$4.49
21
30-3022 Hex Nut for MiTM Pressure Washers 303022
$7.65
22
27-8898 Bolt for MiTM Air Compressors by MiTM 278898
$4.43
23
32-0316 Din Rail-3Ft Section for AC1-PH65-08M Air Compressor by Mi-T-M 320316
$22.49
