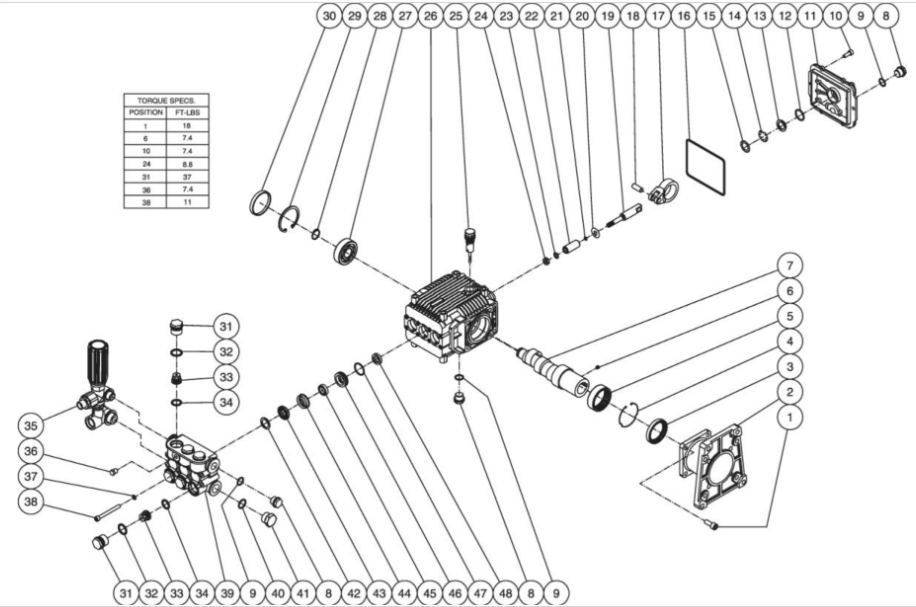

JP-3003-0MIB/0MVB (sn:10173073-99999999) Pump Assembly Parts by Mi-T-M

JP-3003-0MIB/0MVB (sn:10173073-99999999) Pump Assembly Parts by Mi-T-M

  • JP-3003-0MIB/0MVB (sn:10173073-99999999) Pump Assembly Parts by Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8432 Screw for MiTM Air Compressors by MiTM 278432 27-8432 Screw for MiTM Air Compressors by MiTM 278432
$10.04
2
46-0714 Flange For Rkv Pumps-Type F24 for AM2-SE75-80M Air Compressor by Mi-T-M 460714 46-0714 Flange For Rkv Pumps-Type F24 for AM2-SE75-80M Air Compressor by Mi-T-M 460714
$132.42
3
26-0192 Seal Oil for AC1-SE05-60M Air Compressor by Mi-T-M 260192 26-0192 Seal Oil for AC1-SE05-60M Air Compressor by Mi-T-M 260192
$63.32
4
46-0667 Retaining Ring for AC1-HE02-05M by Mi-T-M 460667 46-0667 Retaining Ring for AC1-HE02-05M by Mi-T-M 460667
$27.90
5
48-0059 Bearing Needle for AC1-HE02-05M by Mi-T-M 480059 48-0059 Bearing Needle for AC1-HE02-05M by Mi-T-M 480059
$87.81
6
27-8886 Screw for MiTM Air Compressors by MiTM 278886 27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
7
46-0717 Pump Crankshaft for AC1-SE05-60M Air Compressor by Mi-T-M 460717 46-0717 Pump Crankshaft for AC1-SE05-60M Air Compressor by Mi-T-M 460717
$519.44
8
39-0086 Plug Brass for MiTM Air Compressors by MiTM 390086 39-0086 Plug Brass for MiTM Air Compressors by MiTM 390086
$10.77
9
18-0325 Nozzle Fuel Oil 2.25-70 Deg B for AC1-PE15-08M1 Air Compressor by Mi-T-M 180325 18-0325 Nozzle Fuel Oil 2.25-70 Deg B for AC1-PE15-08M1 Air Compressor by Mi-T-M 180325
$19.38
10
27-8888 Screw for MiTM Air Compressors by MiTM 278888 27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
11
46-0719 Pump Cover Crankcase for AC1-HE02-05M by Mi-T-M 460719 46-0719 Pump Cover Crankcase for AC1-HE02-05M by Mi-T-M 460719
$75.45
12
25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370 25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370
$4.85
13
46-0670 Oil Sight Glass for AC1-HE02-05M by Mi-T-M 460670 46-0670 Oil Sight Glass for AC1-HE02-05M by Mi-T-M 460670
$7.76
14
46-0824 Pump Reflector Oil for AC1-HE02-05M by Mi-T-M 460824 46-0824 Pump Reflector Oil for AC1-HE02-05M by Mi-T-M 460824
$4.85
15
46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671 46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671
$5.99
16
25-0398 O-Ring 107.62 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250398 25-0398 O-Ring 107.62 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250398
$5.99
17
46-0720 Pump-Connecting Rod-Aluminum for AC1-HE02-05M by Mi-T-M 460720 46-0720 Pump-Connecting Rod-Aluminum for AC1-HE02-05M by Mi-T-M 460720
$39.30
18
46-0721 Pump Piston Pin for AC1-HE02-05M by Mi-T-M 460721 46-0721 Pump Piston Pin for AC1-HE02-05M by Mi-T-M 460721
$11.57
19
46-0722 Pump Plunger Rod for AC1-HE02-05M by Mi-T-M 460722 46-0722 Pump Plunger Rod for AC1-HE02-05M by Mi-T-M 460722
$65.04
20
28-1027 Slinger Washer for MiTM Air Compressors by MiTM 281027 28-1027 Slinger Washer for MiTM Air Compressors by MiTM 281027
$8.93
21
25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371 25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371
$3.99
22
46-0723 Pump Piston Ceramic for AC1-HE02-05M by Mi-T-M 460723 46-0723 Pump Piston Ceramic for AC1-HE02-05M by Mi-T-M 460723
$99.92
23
26-0187 Washer/Gasket for AC1-HE02-05M by Mi-T-M 260187 26-0187 Washer/Gasket for AC1-HE02-05M by Mi-T-M 260187
$3.99
24
30-6016 Nut for MiTM Air Compressors by MiTM 306016 30-6016 Nut for MiTM Air Compressors by MiTM 306016
$8.75
25
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090 39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
26
46-0724 Pump Crankcase for AC1-HE02-05M by Mi-T-M 460724 46-0724 Pump Crankcase for AC1-HE02-05M by Mi-T-M 460724
$245.32
27
48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063 48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063
$83.17
28
46-0312 Retainer - Spring (See 70-0732) for MiTM Pressure Washers by MiTM 460312 46-0312 Retainer - Spring (See 70-0732) for MiTM Pressure Washers by MiTM 460312
$20.39
29
46-0676 Retaining Ring for AC1-HE02-05M by Mi-T-M 460676 46-0676 Retaining Ring for AC1-HE02-05M by Mi-T-M 460676
$7.40
30
46-0725 Pump Bearing Cap for AC1-HE02-05M by Mi-T-M 460725 46-0725 Pump Bearing Cap for AC1-HE02-05M by Mi-T-M 460725
$18.73
31
39-0087 Valve Cap M22 1.50P for AC1-HE02-05M by Mi-T-M 390087 39-0087 Valve Cap M22 1.50P for AC1-HE02-05M by Mi-T-M 390087
$38.56
32
25-0160 O-Ring 17.86 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250160 25-0160 O-Ring 17.86 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250160
$5.99
34
18-0386 Nozzle 65400 Qc Detergent for AM2-SH09-30M Air Compressor by Mi-T-M 180386 18-0386 Nozzle 65400 Qc Detergent for AM2-SH09-30M Air Compressor by Mi-T-M 180386
$11.93
35
8-0456 Unloader for AC2-PR09-30M Air Compressor by Mi-T-M 80456 8-0456 Unloader for AC2-PR09-30M Air Compressor by Mi-T-M 80456
$315.63
36
39-0097 Plug Brass for AC1-HE02-05M by Mi-T-M 390097 39-0097 Plug Brass for AC1-HE02-05M by Mi-T-M 390097
$6.96
37
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153 29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
38
27-8875 Screw for MiTM Air Compressors by MiTM 278875 27-8875 Screw for MiTM Air Compressors by MiTM 278875
$19.58
39
46-0730 Pump Manifold Brass for AC1-HE02-05M by Mi-T-M 460730 46-0730 Pump Manifold Brass for AC1-HE02-05M by Mi-T-M 460730
$377.59
40
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372 25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
41
39-0088 Plug Steel 1/2-14Bspp for AC1-HE02-05M by Mi-T-M 390088 39-0088 Plug Steel 1/2-14Bspp for AC1-HE02-05M by Mi-T-M 390088
$20.25
44
46-0728 Pump Packing Retainer for AC1-HE02-05M by Mi-T-M 460728 46-0728 Pump Packing Retainer for AC1-HE02-05M by Mi-T-M 460728
$23.53
45
46-0727 Pump Low Pressure Seal for AM2-PY09-30M Air Compressor by Mi-T-M 460727 46-0727 Pump Low Pressure Seal for AM2-PY09-30M Air Compressor by Mi-T-M 460727
$25.91
46
46-0726 Pump Retainer-Low Pressure for AC1-HE02-05M by Mi-T-M 460726 46-0726 Pump Retainer-Low Pressure for AC1-HE02-05M by Mi-T-M 460726
$19.45
47
25-0149 O-Ring 23.52 X 1.78Mm for AP1-PI55-08M (AFTER S/N 20005741) Air Compressor by Mi-T-M 250149 25-0149 O-Ring 23.52 X 1.78Mm for AP1-PI55-08M (AFTER S/N 20005741) Air Compressor by Mi-T-M 250149
$7.28
48
70-0181 Kit High Pressure Seal 15Mm for AC1-HE02-05M by Mi-T-M 700181 70-0181 Kit High Pressure Seal 15Mm for AC1-HE02-05M by Mi-T-M 700181
$142.52
-
49-0182 Spring - 0.8 X 7 X 15Mm Sst (See Kit 70-0582) for MiTM Pressure Washers 490182 49-0182 Spring - 0.8 X 7 X 15Mm Sst (See Kit 70-0582) for MiTM Pressure Washers 490182
$18.36
-
70-0161 Kit Valve for AC1-HE02-05M by Mi-T-M 700161 70-0161 Kit Valve for AC1-HE02-05M by Mi-T-M 700161
$87.87
