JP-3003-2MHB/2MRB/2MVB pump Assembly Parts by MI-T-M

JP-3003-2MHB/2MRB/2MVB pump Assembly Parts by MI-T-M

  • JP-3003-2MHB/2MRB/2MVB pump Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
8-0563 Unloader for AP1-PI65-08M Air Compressor by Mi-T-M 80563
$253.85
2
70-0394 Kit Unloader Repair for AP1-PI65-08M Air Compressor by Mi-T-M 700394
$305.61
3
25-0050 O-Ring 9.92 X 2.60Mm for AP1-PI65-08M Air Compressor by Mi-T-M 250050
$10.16
4
8-0121 Orifice 2.1 Mm for AP1-PI65-08M Air Compressor by Mi-T-M 80121
$57.95
5
25-0051 O-Ring 9/16 X 3/4 for AP1-PI65-08M Air Compressor by Mi-T-M 250051
$2.99
6
46-0788 Nipple 3/8" Male Outlet for AP1-PI65-08M Air Compressor by Mi-T-M 460788
$70.95
7
25-0120 O-Ring 3/8 X 1/2 for AC1-HE15-05M Air Compressor by Mi-T-M 250120
$1.99
8
49-0020 Spring 4.3/7.3 X 11 .01Ss for AP1-PI65-08M Air Compressor by Mi-T-M 490020
$5.99
9
50-0012 Ball .218 Dia Ss for AP1-PI65-08M Air Compressor by Mi-T-M 500012
$8.99
11
46-0789 Pump Hose Barb for AP1-PI65-08M Air Compressor by Mi-T-M 460789
$9.42
12
25-0310 O-Ring .426 X .070 for AP1-PI65-08M Air Compressor by Mi-T-M 250310
$7.28
13
8-0174 Valve Seat Injector for AP1-PI65-08M Air Compressor by Mi-T-M 80174
$64.52
14
27-9576 BOLT BY MITM
$21.69
15
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
17
39-0071 Valve Plug for AP1-PI65-08M Air Compressor by Mi-T-M 390071
$66.48
20
28-0600 Washer for MiTM Pressure Washers by MiTM 280600
$39.59
21
28-1038 Washer for MiTM Pressure Washers by MiTM 281038
$15.93
22
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
24
46-1159 MANIFOLD BY MITM
$603.65
33
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
34
46-1161 CRANKSHAFT BY MITM
$635.78
35
48-0040 Needle Bearing/Hk 4520 for AP1-PI65-08M Air Compressor by Mi-T-M 480040
$175.01
37
38-0038 Flange Gas for AP1-PI65-08M Air Compressor by Mi-T-M 380038
$125.01
38
26-0181 Seal/Oil for AP1-PI65-08M Air Compressor by Mi-T-M 260181
$67.88
39
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
41
46-1162 PIN BY MITM
$51.69
42
46-1163 Sight Glass for AP1-PI65-08M Air Compressor by Mi-T-M 461163
$37.11
43
25-0059 O-Ring 1-1/16 X 1-5/16 for AP1-PI65-08M Air Compressor by Mi-T-M 250059
$5.99
44
27-8401 Bolt for MiTM Air Compressors by MiTM 278401
$7.49
45
46-1164 CRANKCASE COVER BY MITM
$168.78
46
25-0317 O-Ring 101.27 X 2.62Mm for AP1-PI65-08M Air Compressor by Mi-T-M 250317
$14.31
47
46-1160 CONNECTING ROD BY MITM
$177.59
48
46-1165 PLUNGER GUIDE BY MITM
$98.70
49
28-1049 WASHER BY MITM
$8.24
51
25-0502 O-Ring 5.28 X 1.78 for AP1-PI65-08M Air Compressor by Mi-T-M 250502
$4.28
52
46-0228 Piston for AP1-PI65-08M Air Compressor by Mi-T-M 460228
$167.78
56
46-1166 CRANKCASE BY MITM
$618.56
58
46-0104 Circlip for MiTM Pressure Washers by MiTM 460104
$4.49
59
46-0574 Oil Level Indicator/Spacer for AM2-PH09-08AB Air Compressor by Mi-T-M 460574
$40.14
61
27-8000 Bolt for MiTM Pressure Washers 278000
$5.93
-
70-0414 OIL SEAL KIT (INC. 3 EACH 32) BY MITM
$107.84
-
70-0028 Kit Valve for AM2-PH09-08AB Air Compressor by Mi-T-M 700028
$208.22
-
70-0415 Kit Packing W/Brass 15Mm for AP1-PI65-08M Air Compressor by Mi-T-M 700415
$192.86
-
70-0416 Kit Chemical Injector for AP1-PI65-08M Air Compressor by Mi-T-M 700416
$72.03
10
25-0045 O-Ring 7/32 X 11/32 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250045
$1.99
16
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
18
25-0012 O-Ring 20.69 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250012
$1.99
23
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
36
25-0060 O-Ring 55.56 X 3.53Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250060
$8.44
40
27-8404 Hshcs M6-1.0P X 30Mm for MI-T-M 3004-0ME1 CW Series by MiTM 278404
$7.51
50
25-0143 Ring Anti-Extrusion for AC1-HE02-05M1 Air Compressor by Mi-T-M 250143
$5.99
53
46-0166 Washer Copper Gasket for AC1-HE02-05M1 Air Compressor by Mi-T-M 460166
$5.99
54
46-0168 Nut for AC1-HE02-05M1 Air Compressor by Mi-T-M 460168
$13.97
57
46-0143 Dipstick for AC1-HE02-05M1 Air Compressor by Mi-T-M 460143
Call for Price call for price call for price
60
48-0011 Bear Ball .6305 25 X 62 X 17 for AC1-HE02-05M1 Air Compressor by Mi-T-M 480011
Call for Price call for price call for price
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

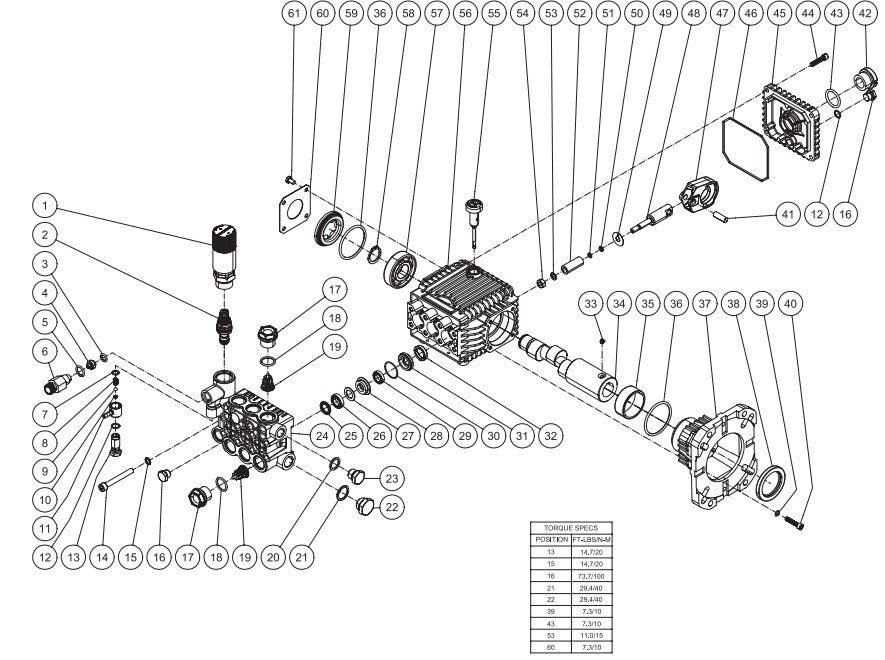

How do I use this diagram?
