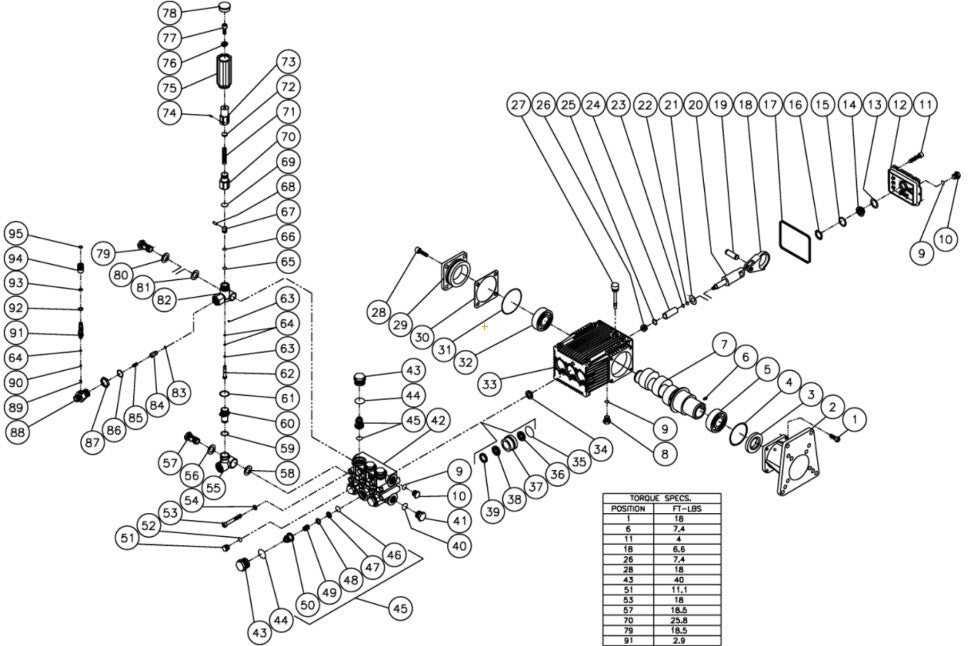

JP-3504-0MVB (sn:0-99999999) Pump Assembly Parts By Mi-T-M

JP-3504-0MVB (sn:0-99999999) Pump Assembly Parts By Mi-T-M

  • JP-3504-0MVB (sn:0-99999999) Pump Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
27-8432 Screw for MiTM Air Compressors by MiTM 278432
$10.04
2
46-0714 Flange For Rkv Pumps-Type F24 for AM2-SE75-80M Air Compressor by Mi-T-M 460714
$132.42
3
26-0194 Seal Oil for AC2-PE05-30M Air Compressor by Mi-T-M 260194
$73.49
4
25-0397 O-Ring 72.75 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250397
$9.72
5
48-0062 Bearing Tapered Roller for AC2-PE05-30M Air Compressor by Mi-T-M 480062
$146.70
6
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
7
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
7
46-0734 Crankshaft (Before Serial #414453) for MiTM Pressure Washers by MiTM 460734
$682.07
11
27-8885 Bolt for MiTM Pressure Washers by MiTM 278885
$7.65
18
46-0922 Connecting Rod Bronze for AC2-PE05-30M Air Compressor by Mi-T-M 460922
$146.01
18
46-0697 Connecting Rod (Before Serial #409521) for MiTM Pressure Washers by MiTM 460697
$201.08
19
46-0698 Pump Piston Pin for AC2-PE05-30M Air Compressor by Mi-T-M 460698
$17.36
20
46-0699 Pump Plunger Rod for AC2-PE05-30M Air Compressor by Mi-T-M 460699
$133.70
21
46-0700 Pump-Slinger Washer for AC2-PE05-30M Air Compressor by Mi-T-M 460700
$5.99
22
46-0700 Pump-Slinger Washer for AC2-PE05-30M Air Compressor by Mi-T-M 460700
$5.99
23
25-0382 O-Ring for MiTM Air Compressors by MiTM 250382
Call for Price call for price call for price
24
46-0701 Pump Piston Ceramic for AC2-PE05-30M Air Compressor by Mi-T-M 460701
$168.63
25
26-0191 Seal-Washer/Gasket for AC2-PE05-30M Air Compressor by Mi-T-M 260191
$5.99
26
30-6020 Nut for MiTM Air Compressors by MiTM 306020
$19.71
28
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
29
46-0703 Pump-Bearing Cap/Support for AC2-PE05-30M Air Compressor by Mi-T-M 460703
$88.83
30
46-0704 Pump Shim .1Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460704
$7.28
30
46-0705 Pump Shim .2Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460705
$7.28
31
25-0380 O-Ring 60 X 2.62Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250380
$19.59
32
48-0072 Non Driven Tap Roller Bearing for AC2-PE05-30M Air Compressor by Mi-T-M 480072
$129.35
32
48-0061 Drive Side Tap Roller Bearing for AC2-PE05-30M Air Compressor by Mi-T-M 480061
$164.78
33
46-0811 Pump-Crankcase Xr New Style for AC2-PE05-30M Air Compressor by Mi-T-M 460811
$578.33
34
46-0931 Oil Seal-20 X 28 X 5.5Mm for AC2-PE05-30M Air Compressor by Mi-T-M 460931
$57.15
35
25-0384 O-Ring 31.47 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250384
$8.99
37
46-0708 Pump Packing Retainer for AC2-PE05-30M Air Compressor by Mi-T-M 460708
$58.77
42
46-0711 Pump Manifold Brass for AC2-PE05-30M Air Compressor by Mi-T-M 460711
$862.85
43
39-0095 Cap Valve Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390095
$38.81
51
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
52
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
53
27-8440 Screw for MiTM Air Compressors by MiTM 278440
$10.38
54
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
55
8-0437 Unloader-Inlet Bypass Adaptor for AC2-PR09-30M Air Compressor by Mi-T-M 80437
$141.54
56
8-0437 Unloader-Inlet Bypass Adaptor for AC2-PR09-30M Air Compressor by Mi-T-M 80437
$141.54
57
8-0438 Unloader-Adaptor-Steel for AC2-PR09-30M Air Compressor by Mi-T-M 80438
$67.94
58
8-0439 Unloader Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80439
$19.31
60
8-0439 Unloader Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80439
$19.31
62
8-0439 Unloader Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80439
$19.31
64
8-0439 Unloader Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80439
$19.31
67
8-0439 Unloader Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80439
$19.31
68
8-0444 Unloader-Pin-Stainless for AC2-PR09-30M Air Compressor by Mi-T-M 80444
$14.42
69
8-0445 Unloader-Spring Button for AC2-PR09-30M Air Compressor by Mi-T-M 80445
$21.80
70
8-0474 Unloader Spring Guide for AC2-PR09-30M Air Compressor by Mi-T-M 80474
$168.63
72
8-0474 Unloader Spring Guide for AC2-PR09-30M Air Compressor by Mi-T-M 80474
$168.63
71
49-0132 Spring Unloader for AC2-PR09-30M Air Compressor by Mi-T-M 490132
$23.24
73
8-0476 Unloader Adjustment Barrel for AC2-PR09-30M Air Compressor by Mi-T-M 80476
$169.01
74
8-0477 Unloader Pin Stainless for AC2-PR09-30M Air Compressor by Mi-T-M 80477
$13.20
75
7-0141 Unloader Knob for MiTM Air Compressors by MiTM 70141
$16.95
76
30-3025 Nut for MiTM Air Compressors by MiTM 303025
$7.43
77
27-8433 Bolt for MiTM Air Compressors by MiTM 278433
$12.12
78
7-0142 Unloader Cap for MiTM Air Compressors by MiTM 70142
$7.43
79
8-0448 Adapter for MiTM Air Compressors by MiTM 80448
Call for Price call for price call for price
80
8-0449 Unloader-Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80449
$16.64
81
8-0450 Unloader-Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80450
$27.72
82
8-0450 Unloader-Washer W/Seal for AC2-PR09-30M Air Compressor by Mi-T-M 80450
$27.72
83
25-0437 O-Ring 5.94 X 3.53 for AC2-PR09-30M Air Compressor by Mi-T-M 250437
$4.28
84
8-0454 Unloader-Check Valve for AC2-PR09-30M Air Compressor by Mi-T-M 80454
$48.74
85
49-0123 Spring Unloader Check Valve for AC2-PR09-30M Air Compressor by Mi-T-M 490123
$11.82
86
49-0123 Spring Unloader Check Valve for AC2-PR09-30M Air Compressor by Mi-T-M 490123
$11.82
87
8-0497 Nut for MiTM Pressure Washers by MiTM 80497
$39.27
88
8-0498 Injector Adapter-1/2G X 3/8G for AC2-PV09-20M Air Compressor by Mi-T-M 80498
$111.41
91
8-0499 Injector Barb W/Adj. Knob for AC2-PV09-20M Air Compressor by Mi-T-M 80499
$69.68
94
7-0152 Adjustable Detergent Knob for MiTM Pressure Washers by MiTM 70152
$56.70
95
70-0177 Kit High Pressure Seal 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700177
$243.29
-
70-0178 Kit Support Ring 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700178
$48.98
-
70-0179 Kit Valves for AC2-PE05-30M Air Compressor by Mi-T-M 700179
$152.18
-
8-0456 Unloader for AC2-PR09-30M Air Compressor by Mi-T-M 80456
$315.63
-
70-0180 Kit Unloader Repair for AC2-PR09-30M Air Compressor by Mi-T-M 700180
$79.82
-
70-0196 Kit- Detergent Injector for AC2-PV09-20M Air Compressor by Mi-T-M 700196
$132.77
-
70-0337 Kit-Oil Seal for AC2-PE05-30M Air Compressor by Mi-T-M 700337
$166.22
-
70-0352 Kit-Piston 18Mm for AC2-PE05-30M Air Compressor by Mi-T-M 700352
$374.64
8
39-0102 Plug Brass for AC1-HE02-05M by Mi-T-M 390102
$7.14
9
39-0102 Plug Brass for AC1-HE02-05M by Mi-T-M 390102
$7.14
10
39-0102 Plug Brass for AC1-HE02-05M by Mi-T-M 390102
$7.14
12
46-0719 Pump Cover Crankcase for AC1-HE02-05M by Mi-T-M 460719
$75.45
13
25-0370 O-Ring 20.24 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250370
$4.85
14
46-0670 Oil Sight Glass for AC1-HE02-05M by Mi-T-M 460670
$7.76
15
46-0824 Pump Reflector Oil for AC1-HE02-05M by Mi-T-M 460824
$4.85
16
46-0671 Spring Retainer-Oil Sight Glas for AC1-HE02-05M by Mi-T-M 460671
$5.99
17
25-0398 O-Ring 107.62 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250398
$5.99
27
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
40
25-0372 O-Ring 17.5 X 2Mm for AC1-HE02-05M by Mi-T-M 250372
$4.85
41
39-0088 Plug Steel 1/2-14Bspp for AC1-HE02-05M by Mi-T-M 390088
$20.25
44
25-0160 O-Ring 17.86 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250160
$5.99
46
25-0386 O-Ring 15.54 X 2.62Mm for AC1-HE02-05M by Mi-T-M 250386
$4.85
