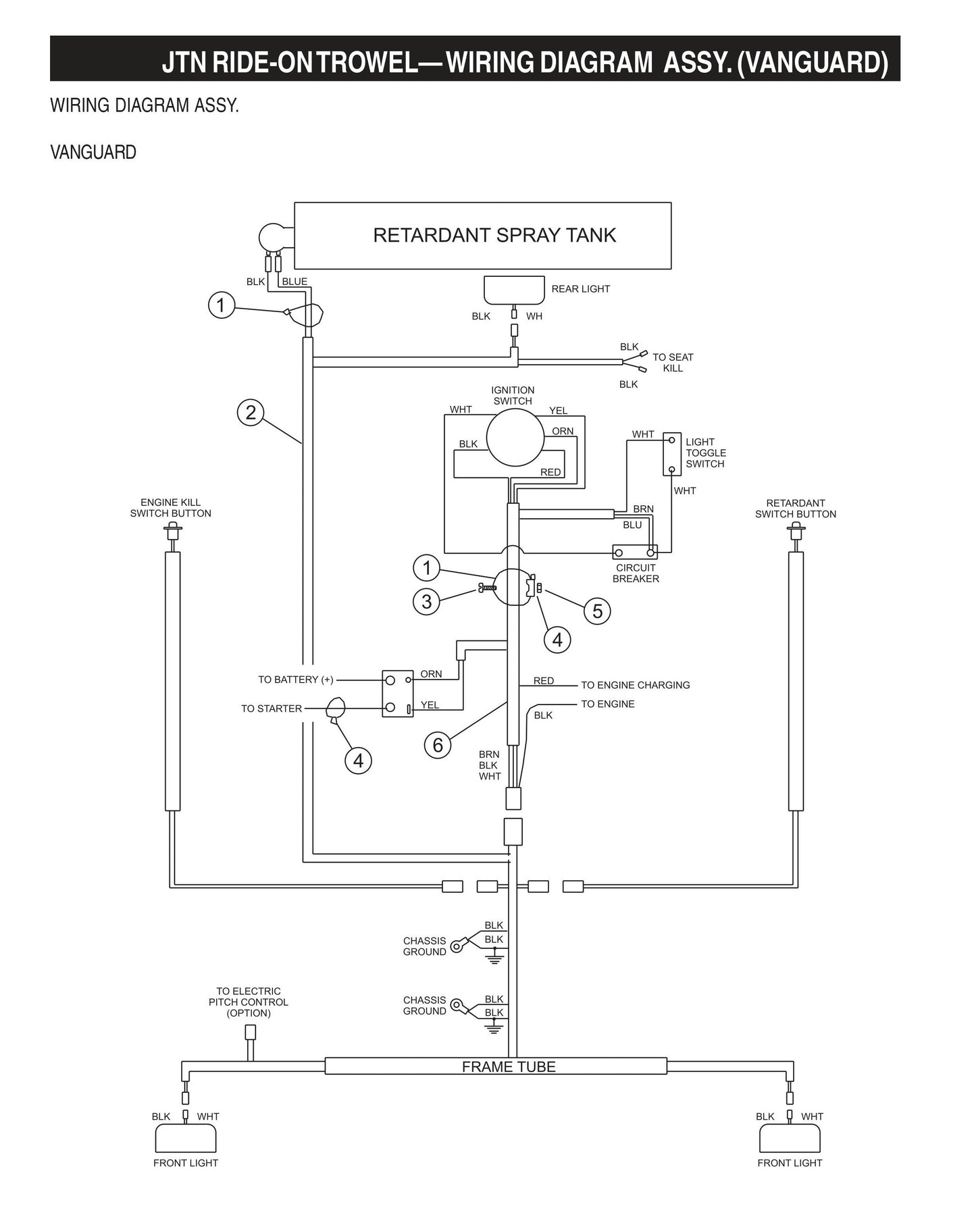

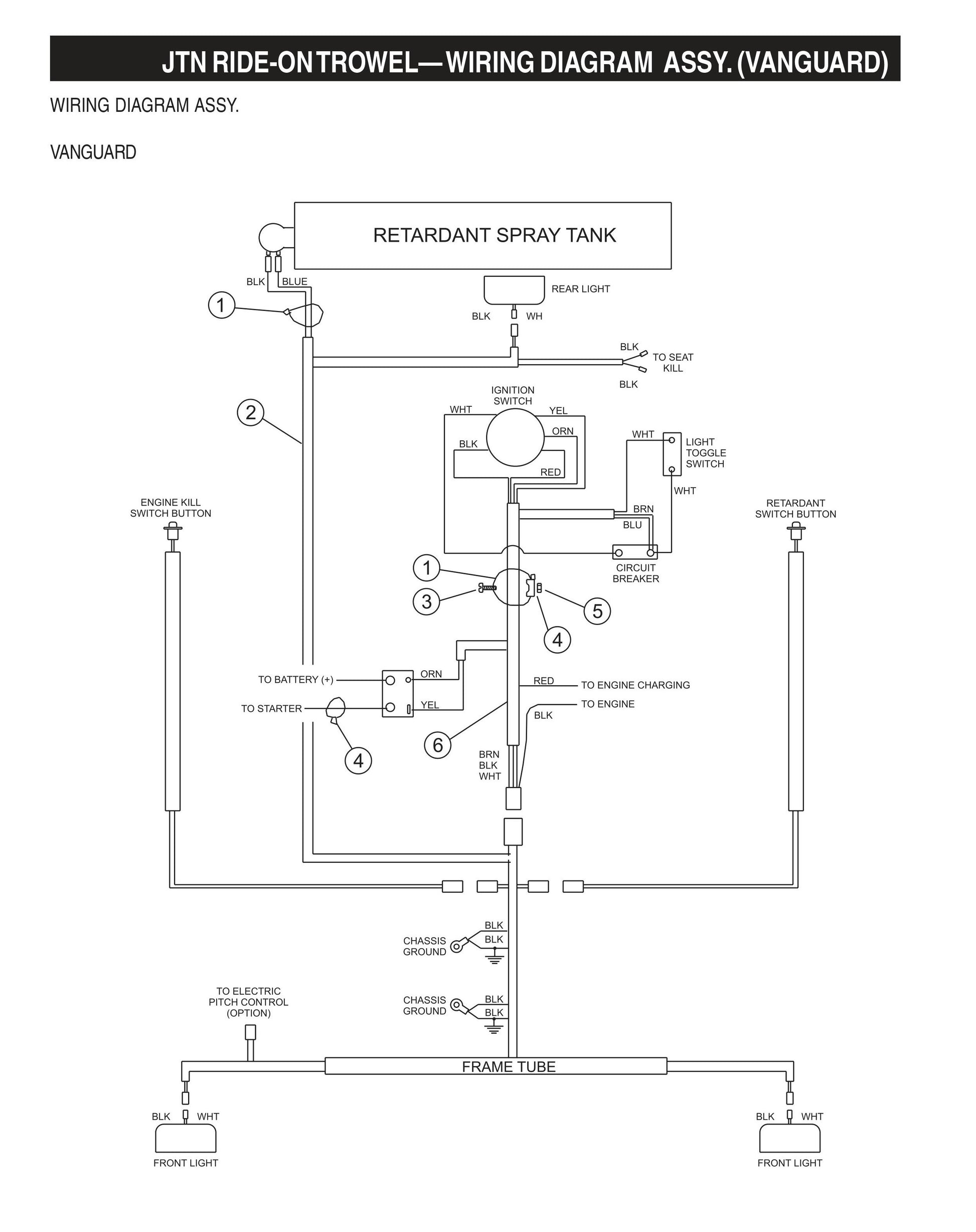

JTN Ride-On Trowel-Wiring Diagram Assembly (Vanguard)

JTN Ride-On Trowel-Wiring Diagram Assembly (Vanguard)

  • JTN Ride-On Trowel-Wiring Diagram Assembly (Vanguard)
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
2566 Wiring Harness Assy for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$99.61
2
2775 Wiring Harness Assembly for BTO Series Mechanical ride on power trowels by Multiquip Whiteman
$212.57
3
5065 B Screw, Php 10-32 X 1/2 for LT12 Light Towers by Multiquip
$4.39
4
2548 Wire Clamp for BHN Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
5
10019 Hex Nut 10- 32 for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$4.39
6
2776 Engine Harness for BRT Series Mechanical ride on power trowels by Multiquip Whiteman
$41.93
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
