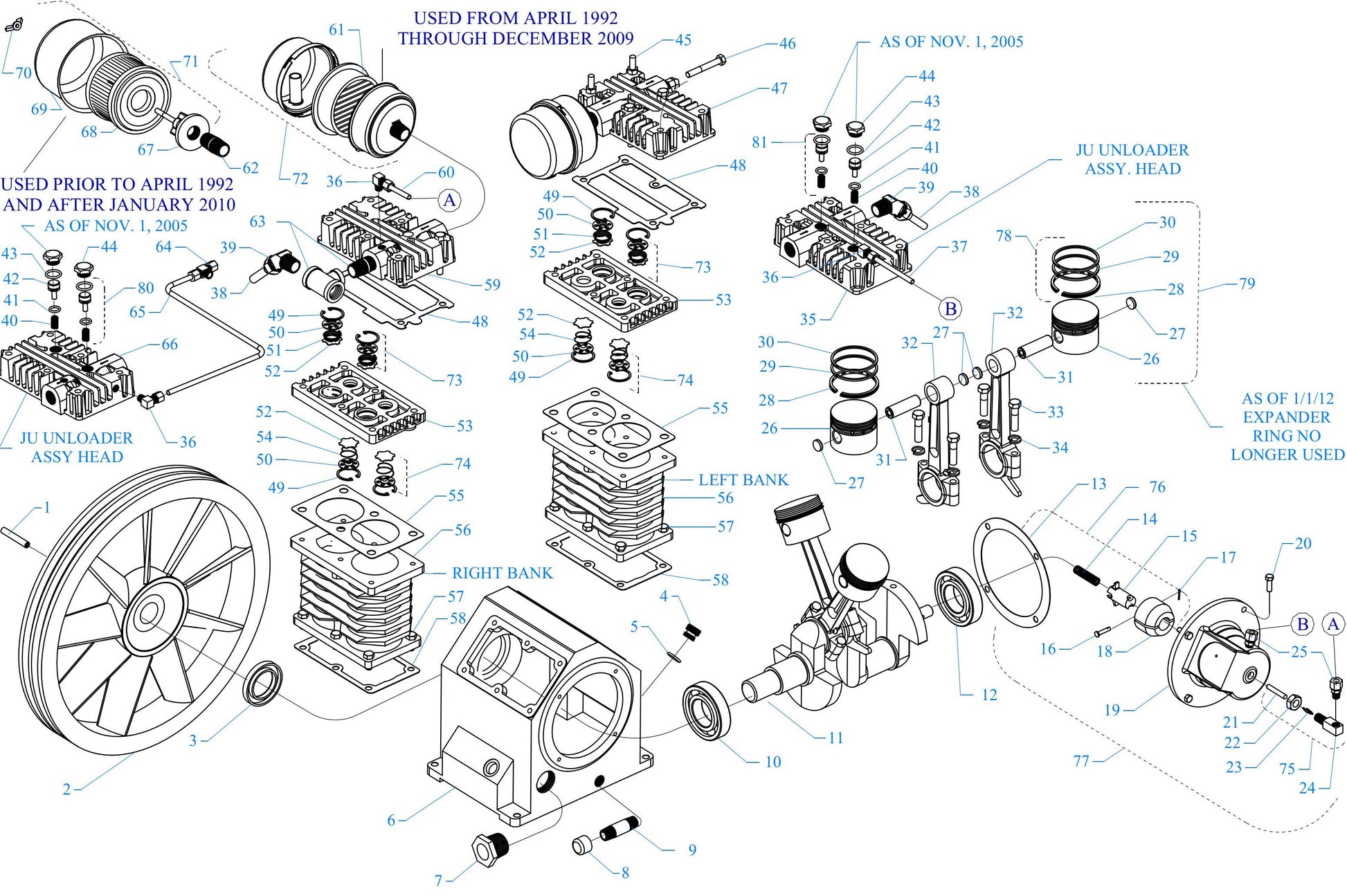

JU Pump Four Cylinder Single Stage Assembly Parts

JU Pump Four Cylinder Single Stage Assembly Parts

  • JU Pump Four Cylinder Single Stage Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
120-1166 Pin, Rolled, Coiled, Stl, 5/16Odx1.25Lg, W25 for Jenny Air Compressors W25 1201166
$5.99
2
610-1423 Flywheel, W Pump, Ci, 16”Dia, 2 Groove, W23A for Jenny Air Compressors W23A 6101423
$473.84
3
150-1038 Seal, Oil, Lip, Single, 1.575 Dia, W11 for Jenny Air Compressors W11 1501038
$11.11
4
610-1029 Plug, Crankcase, Fill, Oil, W/O-Ring, K14 for Jenny Air Compressors K14 6101029
$5.99
5
104-1016 Ring, O, Buna-N, 5/8”Idx13/16”Odx3/32”Thk for Jenny Air Compressors K15 1041016
$3.99
6
610-1441 Crankcase, W Pump, Ci, Machined, W1 for Jenny Air Compressors W1 6101441
$498.10
7
360-1114 Gauge, Sight, Level, Oil, 1”Npt, Installed for Jenny Air Compressors LOW 3601114
$85.39
8
1221084 Cap Female Mi 3/8"Npt for Jenny Air Compressors 122-1084
$32.44
9
1221037 Nipple Steel Sch 40 3/8" X 2" L for Jenny Air Compressors 122-1037
$18.81
10
150-1031 Bearing, Ball, W9 for Jenny Air Compressors W9 1501031
$29.68
11
610-1428 Crankshaft, W Pump, Ci, Machined, W20 for Jenny Air Compressors W20 6101428
$441.60
12
150-1032 Bearing, Ball, W10 for Jenny Air Compressors W10 1501032
$35.52
13
104-1014 Gasket, Cap, Bearing, W Pump, 1/32Thk, W3 for Jenny Air Compressors W3 1041014
$5.99
14
150-1081 Spring, Unloader, Centrifical, Eq72 for Jenny Air Compressors EQ72 1501081
$24.76
15
220-1049 Tube, Operating, Centrifical Unloader, Eq71 for Jenny Air Compressors EQ71 2201049
$15.00
16
610-1066 Pin, Pivot, Unldr, Cntrfcl, W/Cttr Pin, Eq73 for Jenny Air Compressors EQ73 6101066
$4.95
17
120-1169 Pin, Cotter, St, Black, 1\16Diax1\2Lg, Eq73B for Jenny Air Compressors EQ73B 1201169
$2.99
18
610-1167 Unloader, Centrifugal, Weight, Set, Eq70 for Jenny Air Compressors EQ70 6101167
$41.56
19
2201037 Cap Bearing W Pump Ci Machined W2 for Jenny Air Compressors 220-1037
$168.89
20
1201002 Screw Cap Hexhd Gr5 St Blk 1/4-20X5/8 (10 Ft-Lb) for Jenny Air Compressors 120-1002
Call for Price call for price call for price
21
220-1050 Pin, Unloader, Centrifugal, Eq74D for Jenny Air Compressors EQ74D 2201050
$12.96
22
120-1171 Nut, Hex, Jam, Steel, Plated, 7/16-20, Eq74C for Jenny Air Compressors EQ74C 1201171
$3.99
23
120-1170 Valve, Core, Eq74A for Jenny Air Compressors EQ74A 1201170
$2.99
24
150-1035 Body, Unloader, Eq74B for Jenny Air Compressors EQ74B 1501035
$17.01
25
121-1025 Connector Male Compression Br 1/4Tbx1/8" for Jenny Air Compressors 1211025
$16.90
26
220-1005 Piston, Pump, Aluminum, Machined, K32 for Jenny Air Compressors K32 2201005
$19.66
27
104-1103 Bumper, Pin, Wrist, Plastic, K36A for Jenny Air Compressors K36A 1041103
Call for Price call for price call for price
28
610-1065 Kit, Ring, Oil, W/Expander, Assy, K34 for Jenny Air Compressors K34 6101065
$10.33
29
1501013 Ring Compression Piston W/Tpr Hk Eba 33 by Jenny Air Compressors 150-1013
$29.90
30
150-1003 Ring, Compression, Piston, Steel, Eba 22, K33 for Jenny Air Compressors K33 1501003
$12.49
31
150-1005 Pin, Wrist, Piston, Steel, Hardened, K35 for Jenny Air Compressors K35 1501005
$11.09
32
3101007 Rod Connecting Pump Alum Machined W21 for Jenny Air Compressors 310-1007
$71.69
33
120-1026 Screw, Cap, Hexhd, Gr5, St, Blk, 5/16-18X1-1/2 for Jenny Air Compressors W22 1201026
Call for Price call for price call for price
34
1201074 Washer Lock Split Steel Black 5/16" by Jenny Air Compressors 120-1074
$5.99
35
310-1008 Head, Unloading, K&G, W/1/2”Prt, 7 Hle, Lu180 for Jenny Air Compressors LU180 3101008
$145.93
36
121-1032 Elbow Male Compression Br 1/4Tbx1/8"Nptm for Jenny Air Compressors 1211032
$28.44
37
610-1134 Tube, Breather, Bent, Cu, J&W Pump, W18 for Jenny Air Compressors W18 6101134
$12.04
38
610-1119 Tube, Head-Head, Bent, Cu, J Pump, 5/8”, J59 for Jenny Air Compressors J59 6101119
Call for Price call for price call for price
39
1211015 Elbow Male Brass 5/8-45Saex1/2"Nptm for Jenny Air Compressors 121-1015
$57.87
40
150-1020 Spring, Valve, Unloader, Intake, Ku83 for Jenny Air Compressors KU83 1501020
$3.99
41
104-1020 Ring, O, Silicon, 7/16”Idx5/8”Odx3/32”Thk for Jenny Air Compressors KU82 1041020
$3.99
42
150-1028 Piston, Unloader, Valve, Brass, Ku81 for Jenny Air Compressors KU81 1501028
$6.82
43
104-1015 Ring, O, Buna-N, 1/2”Idx11/16”Odx3/32”Thk for Jenny Air Compressors F15 1041015
$3.99
44
1221051 Plug Hex Brass 11/16-16 Un-2B X .550 for Jenny Air Compressors 122-1051
$24.71
45
120-1252 Bolt, Stud, Hex, St, 5/16-18X2-1/4X5/8, K52-1 for Jenny Air Compressors K52-1 1201252
$6.68
46
120-1028 Screw, Cap, Hexhd, Gr5, St, Blk, 5/16-18X2-1/4 for Jenny Air Compressors K52 1201028
$3.99
47
310-1004 Head, Start/Stop, G Pump, Ci, Painted, L50 for Jenny Air Compressors L50 3101004
Call for Price call for price call for price
48
104-1008 Gasket, Head, K&G&W Pump, 1/32Thk, L51 for Jenny Air Compressors L51 1041008
$12.14
49
150-1041 Retainer, Valve, Steel, Pas, 0.062”Thk, K43 for Jenny Air Compressors K43 1501041
$3.99
50
109-1010 Valve, Check, Bumper, Steel, K44 for Jenny Air Compressors K44 1091010
$5.99
51
150-1018 Spring, Cone, Ss, Valve, Discharge, K46 for Jenny Air Compressors K46 1501018
$3.99
52
109-1011 Valve, Check, Disc, Stainless Steel, K47 for Jenny Air Compressors K47 1091011
$4.95
53
610-1396 Plate, Valve, L Pump, Ci, Painted, Blue, L40 for Jenny Air Compressors L40 6101396
$99.10
54
150-1017 Spring, Cone, Ss, Valve, Intake, K45 for Jenny Air Compressors K45 1501017
$3.99
55
104-1007 Gasket, Plate, Valve, K&G&W Pump, 1/32Tk, L41 for Jenny Air Compressors L41 1041007
$12.83
56
360-1152 Cylinder, W Pump, Ci, Painted, Blue, W30 for Jenny Air Compressors W30 3601152
$175.19
57
1201017 Screw Cap Hexhd Gr5 St Blk 5/16-18X3/4 ( 15 Ft - Lb. ) by Jenny Air Compressors 120-1017
$5.39
58
104-1006 Gasket, Cylinder, K&G&W Pump, 1/32Thk, K31 for Jenny Air Compressors K31 1041006
$4.95
59
310-1034 Head, Start/Stop, J Pump, Ci, Painted, J50 for Jenny Air Compressors J50 3101034
$113.57
60
610-1138 Tube, Unloader, Centrifugal, Cu, J Pump, J78 for Jenny Air Compressors J78 6101138
$16.60
61
150-1104 Element, Filter, Air, Compressor, Jenny, G54E for Jenny Air Compressors G54E 1501104
$17.04
62
1221238 Nipple Close Hex Steel Plated 1/2"Nptm by Jenny Air Compressors 122-1238
Call for Price call for price call for price
63
610-1067 Manifold, Pipe, Outlet, J Pump, Assy, J57 for Jenny Air Compressors J57 6101067
$47.56
64
1211039 Tee Branch Brass 1/4"Tbx1/4"Tbx1/8"Nptm for Jenny Air Compressors 121-1039
$38.68
65
610-1136 Tube, Unloader, Head-Head, Cu, W Pump, Wu88 for Jenny Air Compressors WU88 6101136
$15.11
66
310-1035 Head, Unloading, J Pump, Ci, Painted, Ju80 for Jenny Air Compressors JU180 3101035
$169.40
67
104-1102 Bracket, Filter, Air, Nylon, Black, L53 for Jenny Air Compressors L53 1041102
$12.52
68
150-1010 Element, Filter, Air, Compressor, Jenny, L54E for Jenny Air Compressors L54E 1501010
$21.09
69
320-1006 Cover, Filter, W/Decals, L54 for Jenny Air Compressors L54 3201006
$36.16
70
120-1104 Nut, Wing, St, Forged, Plated, 1/4-20, L55 for Jenny Air Compressors L55 1201104
Call for Price call for price call for price
71
320-1000 Filter, W/Decal, Assy, L154S for Jenny Air Compressors L154 3201000
$43.12
72
320-1121 Filter, W/Decal, Assy, G154S for Jenny Air Compressors G154S 3201121
$96.39
73
610-1032 Valve, Discharge, Assy, K146 for Jenny Air Compressors K146 6101032
$12.10
74
610-1031 Valve, Suction, Assy, K145 for Jenny Air Compressors K145 6101031
$12.10
75
310-1016 Valve, Unloader, Centrifical, Assy, Eq174 for Jenny Air Compressors EQ174 3101016
$22.79
76
610-1053 Weight, Unloader, Centrifical, W/Gskt, W170 for Jenny Air Compressors W170 6101053
$122.30
77
610-1054 Unloader, Centrifical, W/B Cap, Assy, W175 for Jenny Air Compressors W175 6101054
$196.53
78
610-1020 Kit, Pump, Ring, Piston, F&K&G&W Pump, K133 for Jenny Air Compressors K133 6101020
$42.64
79
610-1028 Piston, W/Rings&Pin, Assy, K132 for Jenny Air Compressors K132 6101028
$65.44
80
610-1042 Valve, Unloader, Head, Pump, Assy, Ku181 for Jenny Air Compressors KU181 6101042
$12.07
81
610-1068 Kit, Gasket, J Pump, Assy, J100 for Jenny Air Compressors J100 6101068
$34.51
-
610-1127 Kit, Basic, Repair, Ju Pump, Ju101 for Jenny Air Compressors JU101 6101127
Call for Price call for price call for price
-
610-1126 Kit, Basic, Repair, J Pump, J101 for Jenny Air Compressors J101 6101126
$213.80
-
610-1045 Plate, Valve, L Pump, W/Valves&Gaskets, L140 for Jenny Air Compressors L140 6101045
$134.87
-
105-1209 Oil, Pump, Synthetic, Blue, 1 Quart, Esq for Jenny Air Compressors ESQ 1051209
$29.47
-
105-1210 Oil, Pump, Synthetic, Blue, 1 Gallon, Esg for Jenny Air Compressors ESG 1051210
$103.15
-
610-1225 Filter Element, Pkg Of 4, G54Ep for Jenny Air Compressors G54EP 6101225
$46.67
-
610-1186 Kit, Element, Filter, L54E, Pkg Of 4, L54Ep for Jenny Air Compressors L54EP 6101186
$83.97
