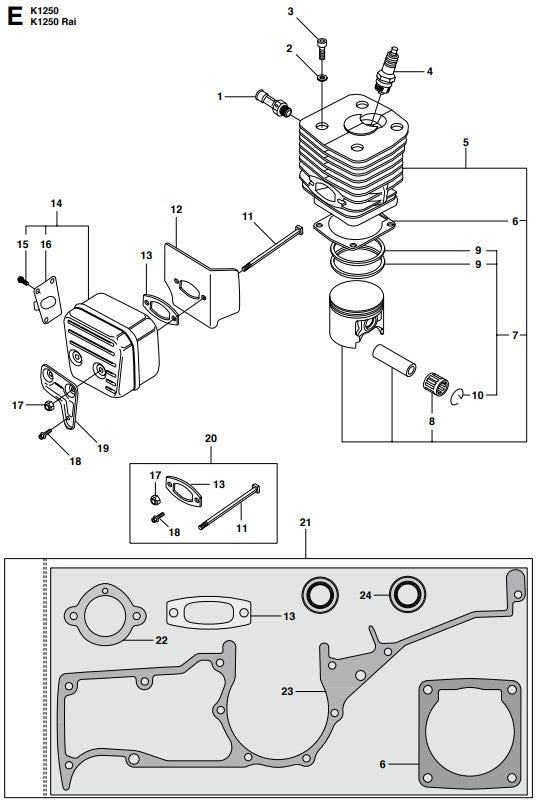

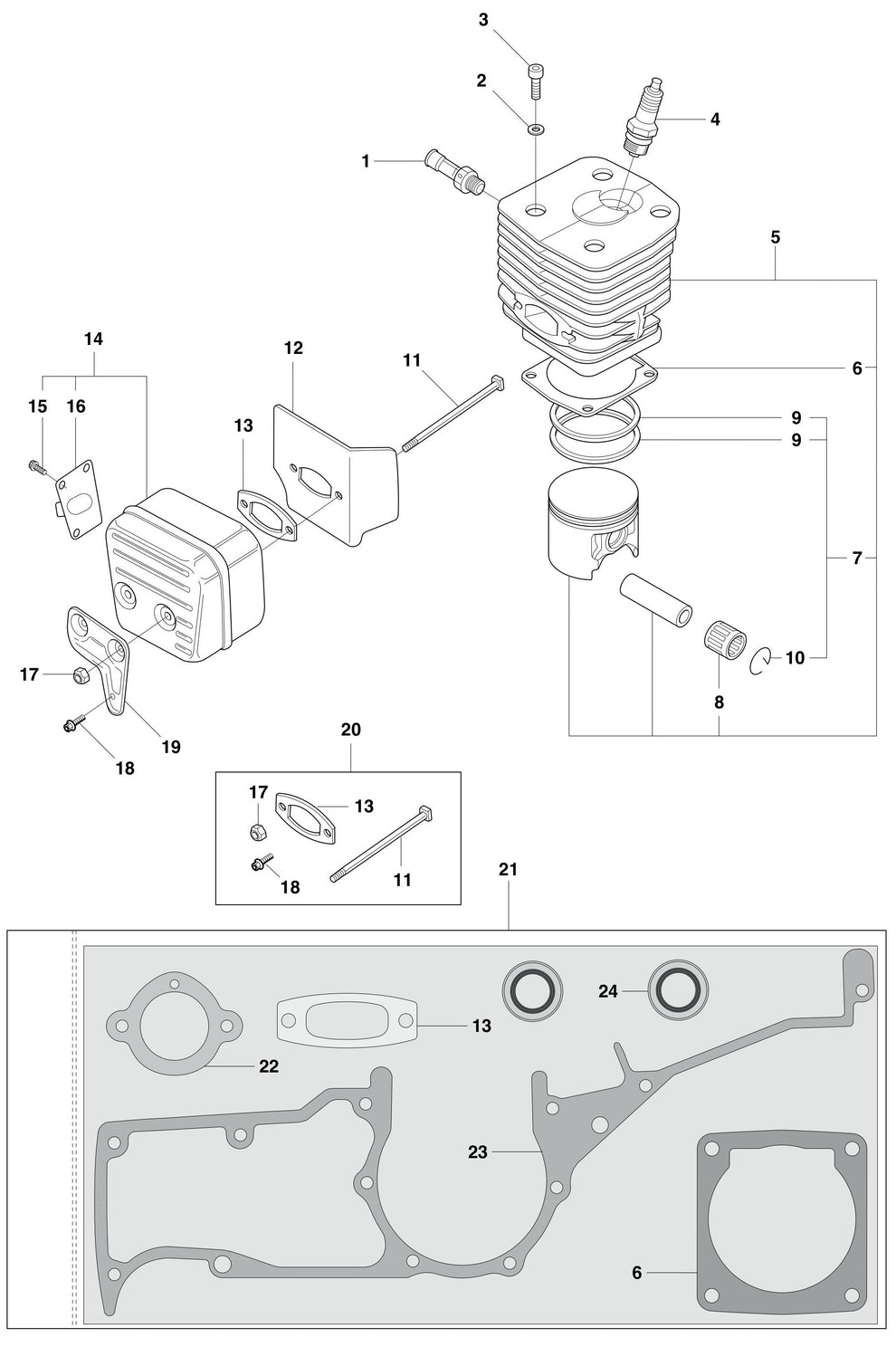

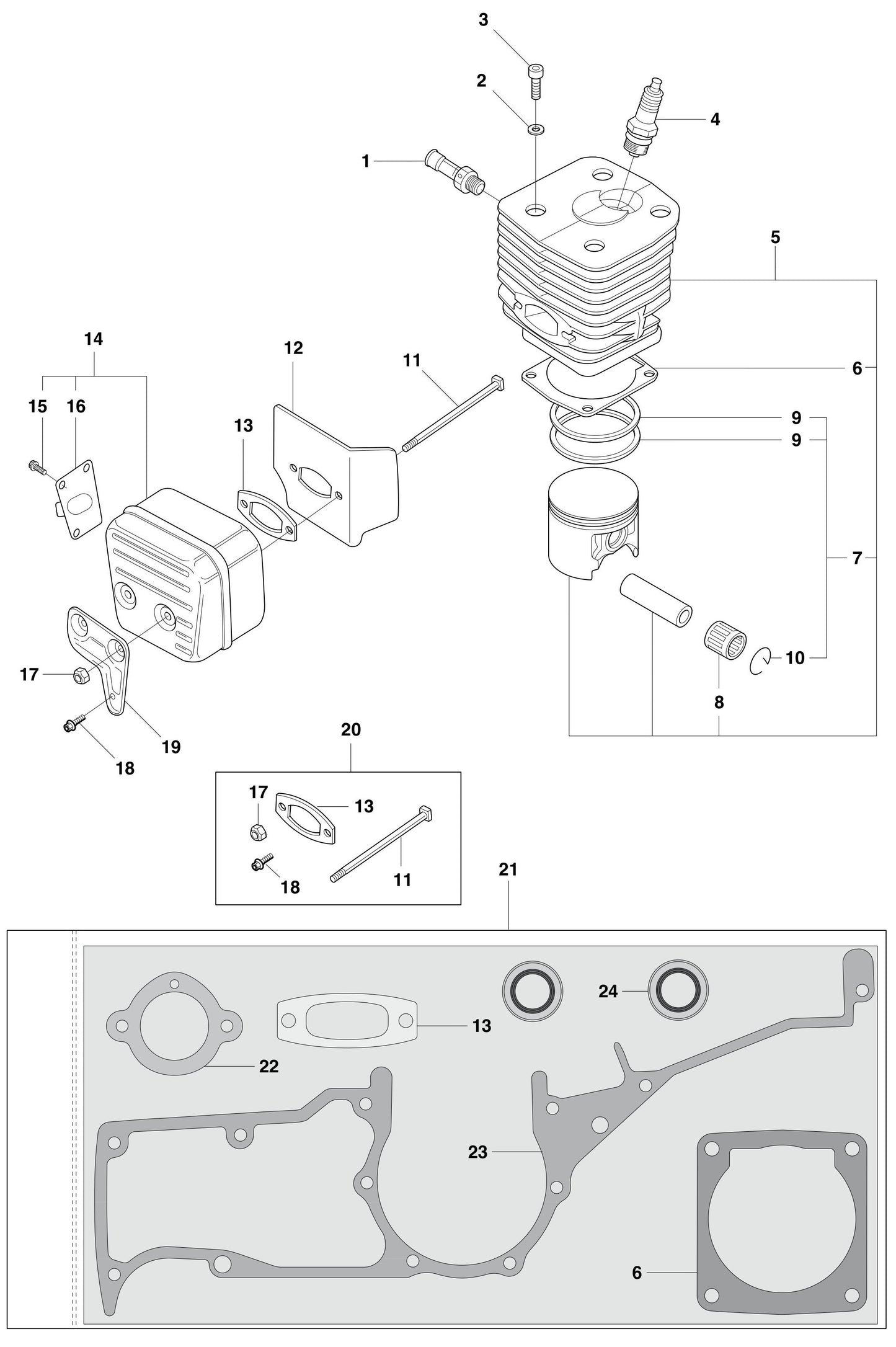

K1250 Cylinder Piston and Muffler Assembly Parts

K1250 Cylinder Piston and Muffler Assembly Parts

  • K1250 Cylinder Piston and Muffler Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
503665601 VALVE FOR POWER CUTTERS BY HUSQVARNA
$50.80
2
503230005 WASHER 5.3 X 12 FOR POWER CUTTERS BY HUSQVARNA
$4.89
3
503216025 SCREW FOR POWER CUTTERS BY HUSQVARNA
$3.76
4
503235109 SPARK PLUG RCJ6Y FOR POWER CUTTERS BY HUSQVARNA
$12.72
6
503134601 CYLINDER GASKET FOR POWER CUTTERS BY HUSQVARNA
$7.72
7
501894103 PISTON COMPLETE FOR POWER CUTTERS BY HUSQVARNA
$200.33
8
503132901 WRIST PIN BEARING FOR POWER CUTTERS BY HUSQVARNA
$24.13
9
503289026 PISTON RING FOR POWER CUTTERS BY HUSQVARNA
$35.51
11
737441300 WRIST PIN CLIP FOR POWER CUTTERS BY HUSQVARNA
$4.99
11
503216401 MUFFLER SCREW - K1250 FOR POWER CUTTERS BY HUSQVARNA
$8.75
12
506341401 HEAT SHIELD FOR POWER CUTTERS BY HUSQVARNA
$16.83
14
503130004 MUFFLER, K1250 W/O KIT FOR POWER CUTTERS BY HUSQVARNA
$130.66
15
729534001 STSPH,ISO7049 ST 4.2 X 9.5-C-Z FOR FASTENERS BY HUSQVARNA
$4.89
16
506274901 EXHAUST OUTLET FOR POWER CUTTERS BY HUSQVARNA
$23.80
17
503222007 LOCK NUT (M6) FOR POWER CUTTERS BY HUSQVARNA
$4.89
18
725536855 SCREW 6X16 FOR POWER CUTTERS BY HUSQVARNA
$4.89
19
506278701 MUFFLER SUPPORT FOR POWER CUTTERS BY HUSQVARNA
$16.83
20
505259604 MOUNTING KIT, MUFFLER, K1250 FOR POWER CUTTERS BY HUSQVARNA
$52.05
21
506292402 GASKET KIT-K1250 FOR POWER CUTTERS BY HUSQVARNA
$23.80
23
503134501 CRANKCASE GASKET FOR POWER CUTTERS BY HUSQVARNA
$10.01
24
503260205 SEAL RING FOR POWER CUTTERS BY HUSQVARNA
$18.00
5
Call for Price call for price call for price
13
Call for Price call for price call for price
22
Call for Price call for price call for price
