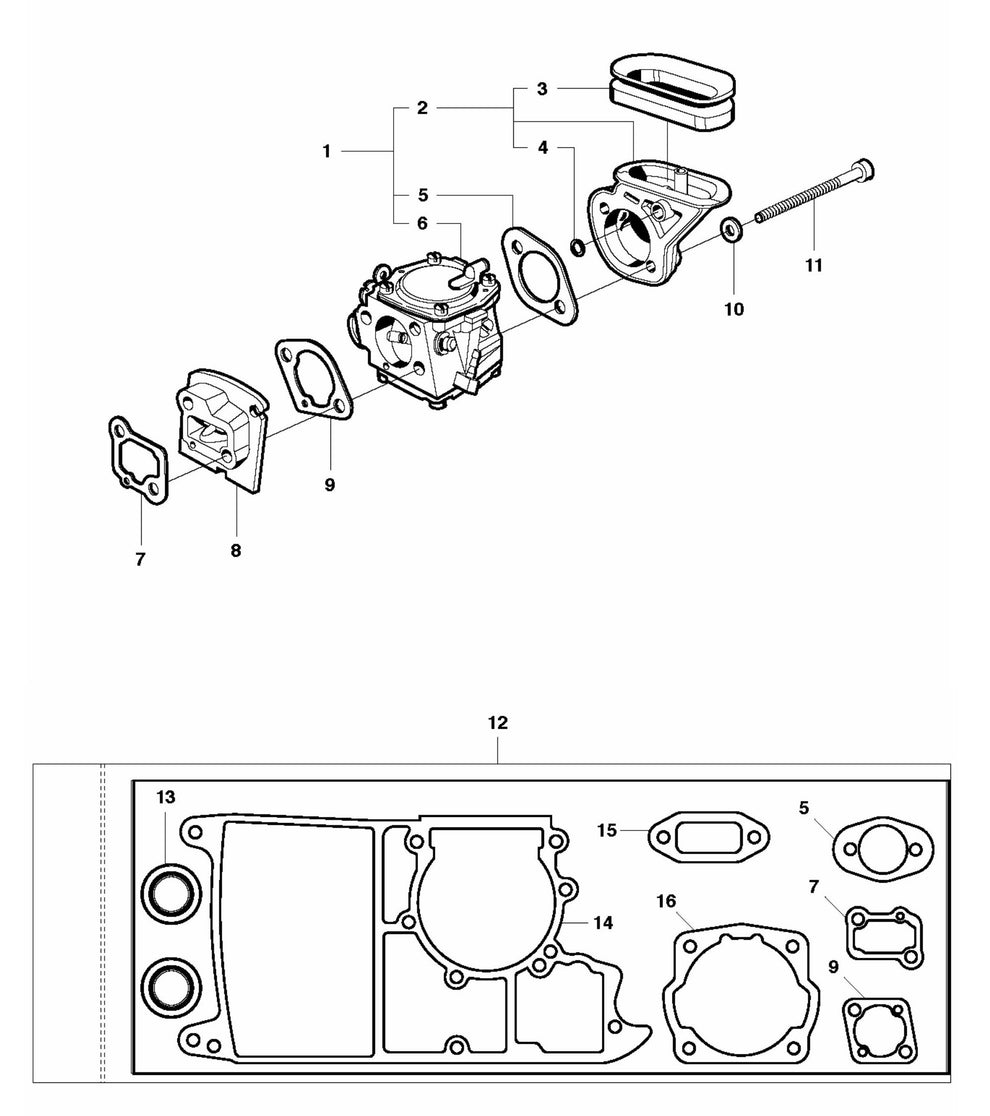

K650 Cut-n-Break Carburetor Assembly Parts by Husqvarna

K650 Cut-n-Break Carburetor Assembly Parts by Husqvarna

  • K650 Cut-n-Break Carburetor Assembly Parts by Husqvarna
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
506321503 EPA CARB. COMPLETE K650/K700 FOR POWER CUTTERS BY HUSQVARNA
$240.35
3
506268501 INTAKE SEAL 650/700 ACTIVE FOR POWER CUTTERS BY HUSQVARNA
$8.38
4
740420100 O-RING FOR POWER CUTTERS BY HUSQVARNA
$4.89
5
506096401 AIR HORN GASKET FOR POWER CUTTERS BY HUSQVARNA
$4.04
6
503280418 CARBURETOR CPL. FOR POWER CUTTERS BY HUSQVARNA
$335.35
7
506320301 INTAKE GASKET FOR POWER CUTTERS BY HUSQVARNA
$5.60
8
505279060 INSUL. FLANGE FOR POWER CUTTERS BY HUSQVARNA
$18.81
9
506320201 CARB GASKET FOR POWER CUTTERS BY HUSQVARNA
$5.60
10
503230042 WASHER FOR POWER CUTTERS BY HUSQVARNA
$2.99
11
503202175 SCREW (STAINLESS) FOR POWER CUTTERS BY HUSQVARNA
$5.01
12
544384202 GASKET SET FOR POWER CUTTERS BY HUSQVARNA
$35.25
13
503260204 SEAL RING FOR POWER CUTTERS BY HUSQVARNA
$19.59
14
503443101 GASKET FOR POWER CUTTERS BY HUSQVARNA
$5.68
15
506340601 GASKET FOR POWER CUTTERS BY HUSQVARNA
$5.80
16
503491001 BASE GASKET-ALL K650S & K700S FOR POWER CUTTERS BY HUSQVARNA
$4.22
2
506318801 AIRHORN - YELLOW FOR POWER CUTTERS BY HUSQVARNA
$17.56
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

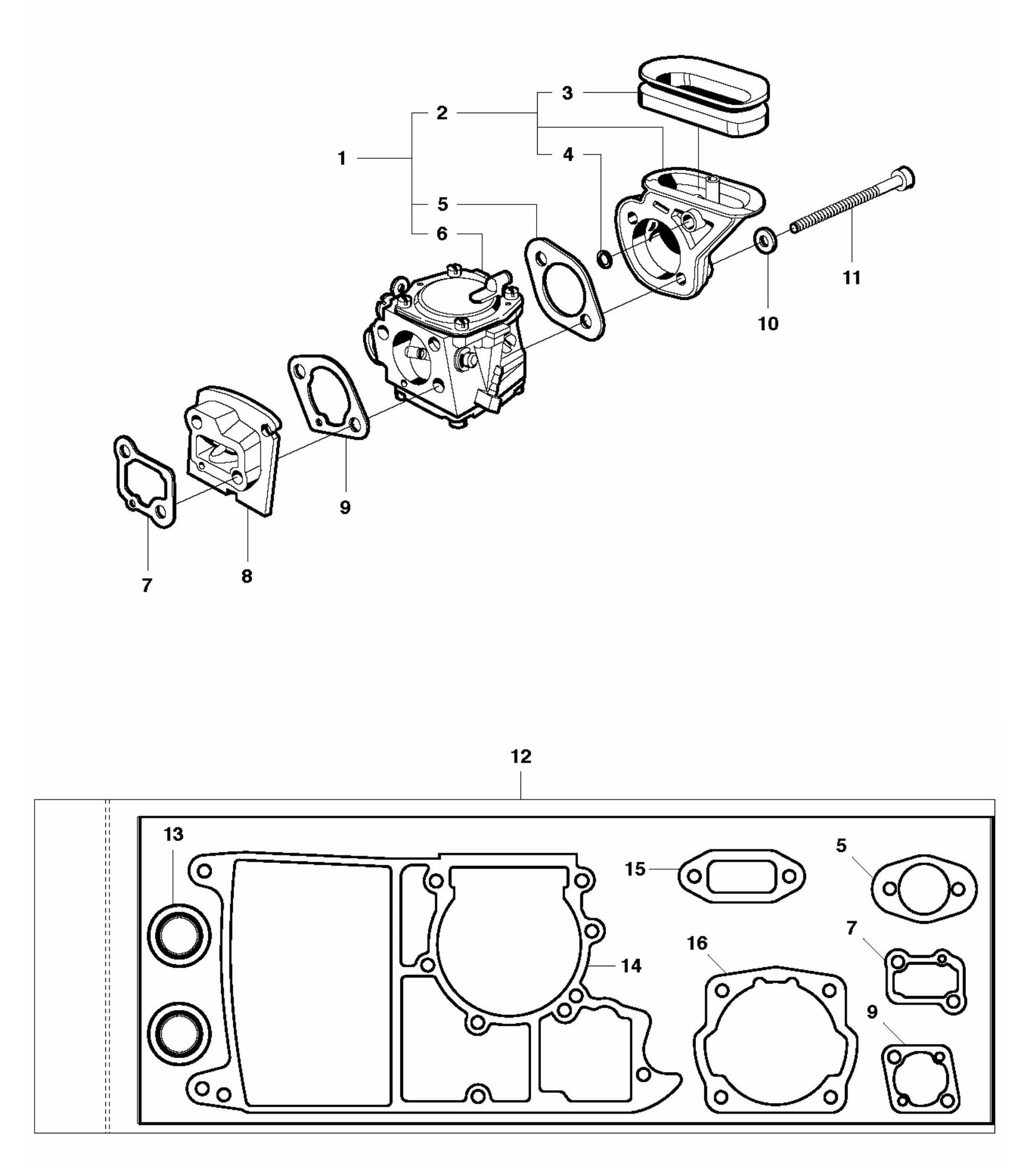

How do I use this diagram?
