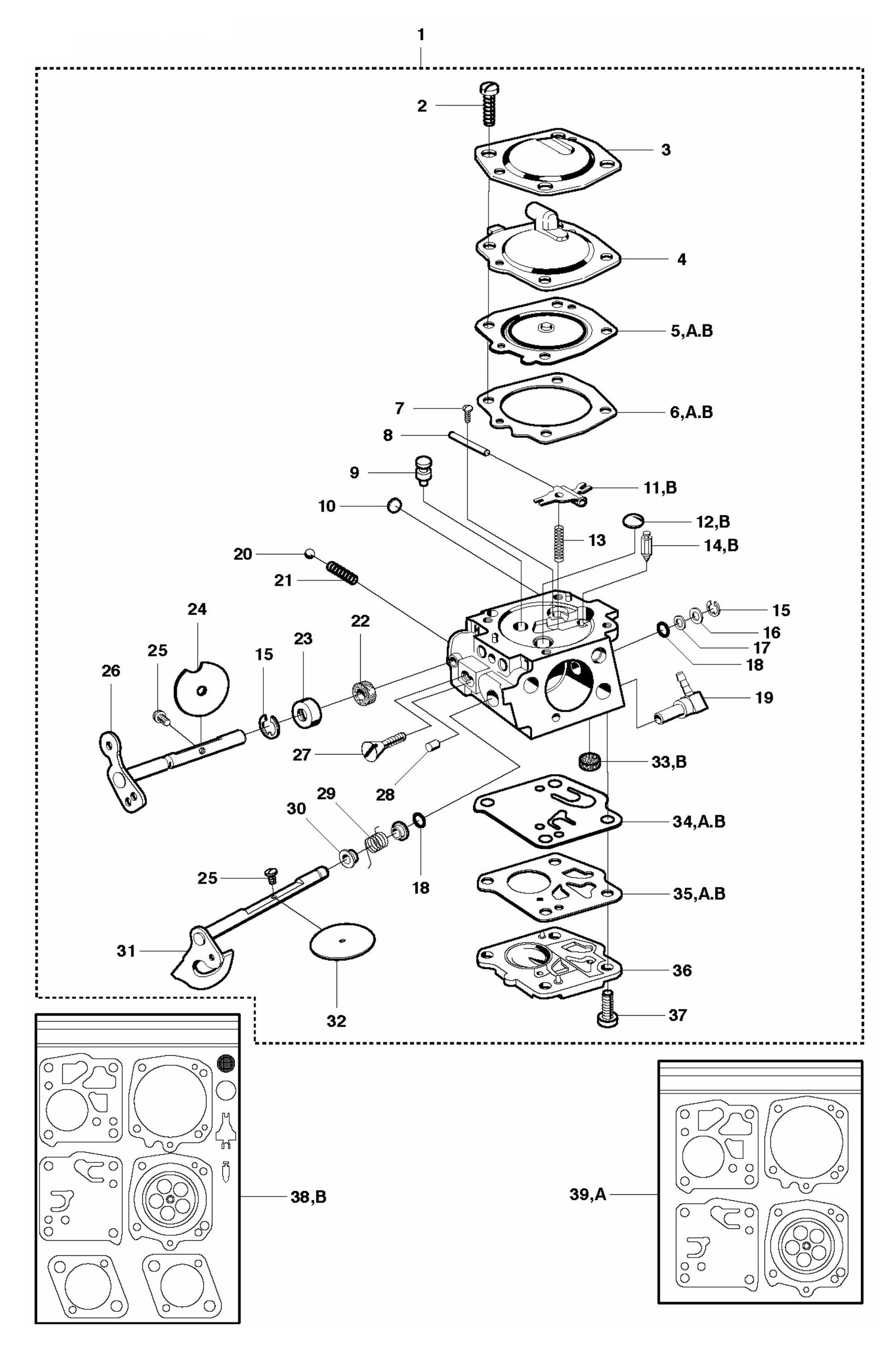

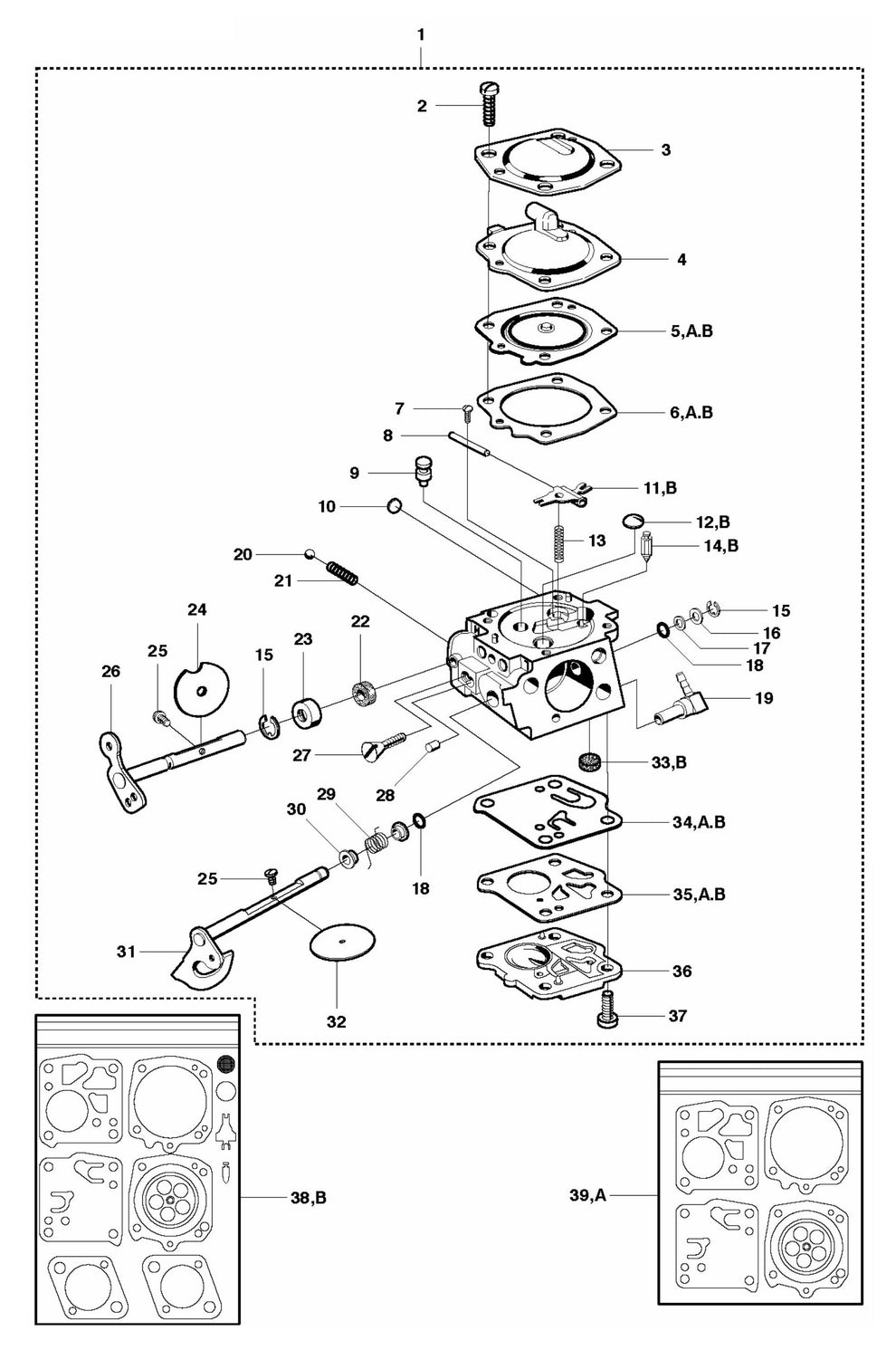

K650 Cut-n-Break Carburetor Details Assembly Parts by Husqvarna

K650 Cut-n-Break Carburetor Details Assembly Parts by Husqvarna

  • K650 Cut-n-Break Carburetor Details Assembly Parts by Husqvarna
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
503280418 CARBURETOR CPL. FOR POWER CUTTERS BY HUSQVARNA
$335.35
4
506311501 INSERT "EPA CARB", YELLOW FOR POWER CUTTERS BY HUSQVARNA
$4.91
7
Screw 501485201 Fits Husqvarna Concrete Saw Models K950
Call for Price call for price call for price
9
503779801 BALL VALVE FOR POWER CUTTERS BY HUSQVARNA
$10.28
10
501220201 PLUG FOR POWER CUTTERS BY HUSQVARNA
$5.01
11
Lever 501222001 Fits Husqvarna Concrete Saw Models K950
$42.12
12
501220301 PLUG FOR POWER CUTTERS BY HUSQVARNA
$5.50
13
501222501 SPRING FOR POWER CUTTERS BY HUSQVARNA
$1.26
14
505316550 INLET NEEDLE FOR POWER CUTTERS BY HUSQVARNA
$21.73
19
503534001 NIPPLE FOR POWER CUTTERS BY HUSQVARNA
$13.97
20
501220401 BALL FOR POWER CUTTERS BY HUSQVARNA
$1.65
21
501220501 SPRING FOR POWER CUTTERS BY HUSQVARNA
$4.99
26
506275601 CHOKE SHAFT 175H FOR POWER CUTTERS BY HUSQVARNA
$16.33
27
503578701 IDLE SCREW FOR POWER CUTTERS BY HUSQVARNA
$7.51
28
503578601 BALL FOR POWER CUTTERS BY HUSQVARNA
$4.36
29
505316605 SPRING FOR POWER CUTTERS BY HUSQVARNA
$2.33
31
505316619 THROTTLE SHAFT (CARB) FOR POWER CUTTERS BY HUSQVARNA
$9.96
32
505316114 THROTTLE FLAP FOR POWER CUTTERS BY HUSQVARNA
$167.24
34
Fuel Pump Diaphragm 501221201 Fits Husqvarna Concrete Saw Models K950
$24.72
35
Gasket Pump Side 501221301 Fits Husqvarna Concrete Saw Models K950
$24.72
37
501221501 Screw Fits Husqvarna Concrete Saw Model K950
$1.34
8
501222101 SHAFT FOR POWER CUTTERS BY HUSQVARNA
$2.34
15
501821801 RETAINING RING FOR POWER CUTTERS BY HUSQVARNA
$1.62
25
503652701 SCREW FOR POWER CUTTERS BY HUSQVARNA
$2.13
30
501427101 BUSHING FOR POWER CUTTERS BY HUSQVARNA
$2.50
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
