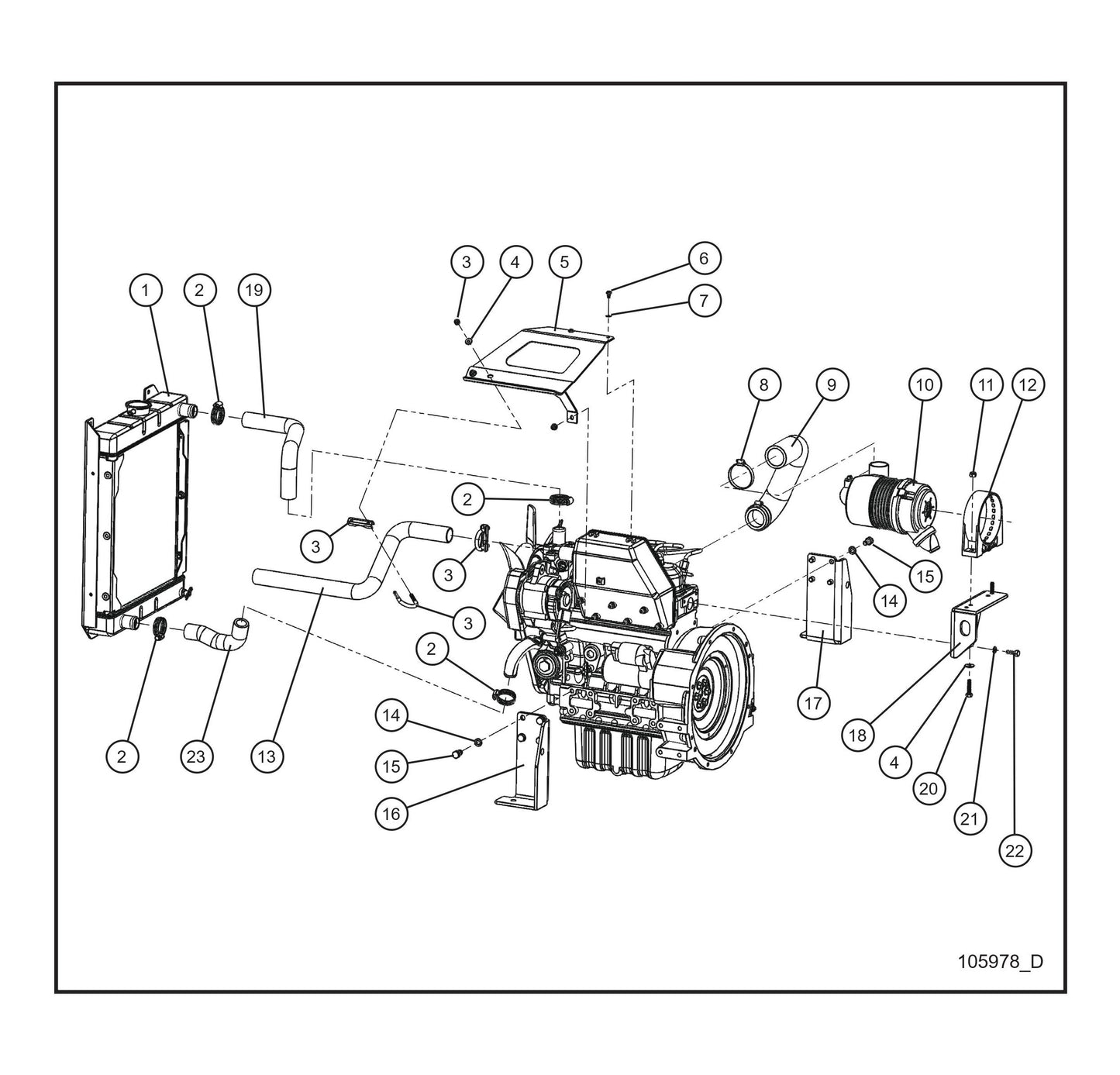

Kubota Engine Assembly Group (Fig 1) Parts By Allmand

Kubota Engine Assembly Group (Fig 1) Parts By Allmand

  • Kubota Engine Assembly Group (Fig 1) Parts By Allmand
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
105393 Radiator Kubota for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$891.00
2
045034 #16 Hose Clamp for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$4.88
3
713086 1 3/8 Muffler Clamp for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$10.88
4
047005 1/4 Flat Washer for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
5
103579P Tailpipe Mount D1105 Nl Pro Ii for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$166.62
6
042018 M6 X 1.0Mm X 10Mm Hex Head Cs Gr 8.8 Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
7
043050 1/4 Intl Tooth Lock Washer for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
8
045038 #32 Hose Clamp for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$4.88
9
101734 Air Cleaner Hose Kubota D1005/D1105 for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$122.51
10
650262 Air Cleaner Radial Seal for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$157.93
11
042081 M8 X 1.25Mm Nylock Hex Nut Pl Metric for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
12
650263 Mounting Band Air Cleaner for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$44.00
13
109800 Tail Pipe Kubota for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$168.30
14
042151 M10 Split Lock Washer Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
15
042038 M10 X 20Mm X 1.25Mm Hex Head Cs Gr 8.8 Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
16
103470P Bracket Engine Foot Right Weldment Kubota for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$211.32
17
103469P Bracket Engine Foot Left Weldment Kubota for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
18
105800P Mount Welded Air Filter Kubota for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$68.40
19
105391 Radiator Hose Upper Kubota for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$60.90
20
102127 8Mm X 35Mm X 1.25 Hex Gr 8.8 Plated for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$7.28
21
043055 5/16 Split Lock Washer Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
22
042027 M8 X 16Mm X 1.25 Hex Head Cs Gr8.8 Pl for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$2.99
23
105392 Radiator Hose Lower Kubota for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$52.80
NS
108043 Harness Kubota for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$215.57
NS
105875 Kubota D1005 Charge Circuit Fuse for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
$101.30
NS
112774 Kubota D1105 40Amp Charge Circuit Fuse for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
NS
112776 Kubota D1105 40Amp Engine Harness Schematic for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
NS
112329 Kubota D1105 Alternator Adaptor Harness for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
NS
108044 Kubota D1005 Engine Harness Schematic for Maxi-Lite Ii V-Series (0001Mlv212 To 9999Mlv216) Light Towers by Allmand
Call for Price call for price call for price
