LD Series Night-Lite Pro II Kubota D1005/1105 Engine Group (2 of 6) Assembly Parts By Allmand

LD Series Night-Lite Pro II Kubota D1005/1105 Engine Group (2 of 6) Assembly Parts By Allmand

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
042151 M10 Split Lock Washer for Night-Lite Pro Il LD-Series Light Towers by Allmand
$2.99
2
042038 M10 X 20Mm X 1.25Mm Hex Head Bolt for Night-Lite Pro Il LD-Series Light Towers by Allmand
$2.99
3
043055 5/16 Split Lock Washer Pl for Night-Lite Pro Il LD-Series Light Towers by Allmand
$2.99
4
042027 M8 X 16Mm X 1.25 Hex Head Cs Gr8.8 Pl for Night-Lite Pro Il LD-Series Light Towers by Allmand
$2.99
5
102127 8Mm X 35Mm X 1.25 Hex Gr 8.8 Plated for Night-Lite Pro Il LD-Series Light Towers by Allmand
$7.28
6
042081 M8 X 1.25Mm Nylock Hex Nut Pl for Night-Lite Pro Il LD-Series Light Towers by Allmand
$2.99
7
043050 1/4 Intl Tooth Lock Washer for Night-Lite Pro Il LD-Series Light Towers by Allmand
$2.99
8
042018 M6 X 10Mm X 1.0Mm Hex Head Bolt for Night-Lite Pro Il LD-Series Light Towers by Allmand
$2.99
9
047005 1/4 Flat Washer for Night-Lite Pro Il LD-Series Light Towers by Allmand
$2.99
10
103422 Rcp Radiator for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
11
103424 Rcp Radiator Hose Top for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
12
103423 Rcp Radiator Hose Bottom for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
13
045034 #16 Hose Clamp for Night-Lite Pro Il LD-Series Light Towers by Allmand
$4.88
14
105800P Mount Welded Air Filter Kubota for Night-Lite Pro Il LD-Series Light Towers by Allmand
$68.40
15
103470P Bracket Engine Foot Right Weldment Kubota for Night-Lite Pro Il LD-Series Light Towers by Allmand
$211.32
16
103579P Tailpipe Mount D1105 Nl Pro Ii for Night-Lite Pro Il LD-Series Light Towers by Allmand
$166.62
17
109800 Tail Pipe Kubota for Night-Lite Pro Il LD-Series Light Towers by Allmand
$168.30
18
713086 1 3/8 Muffler Clamp for Night-Lite Pro Il LD-Series Light Towers by Allmand
$10.88
19
352373 Block Heater D1005/D1105 for Night-Lite Pro Il LD-Series Light Towers by Allmand
$163.33
20
105995 End Cover 120 Volt Cord for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
21
045038 #32 Hose Clamp for Night-Lite Pro Il LD-Series Light Towers by Allmand
$4.88
22
101734 Air Intake Hose Small Engines for Night-Lite Pro Il LD-Series Light Towers by Allmand
$122.51
23
650262 Air Cleaner Radial Seal for Night-Lite Pro Il LD-Series Light Towers by Allmand
$157.93
23
650263 Mounting Band Air Cleaner for Night-Lite Pro Il LD-Series Light Towers by Allmand
$44.00
23
650290 Donaldson Air Filter for Night-Lite Pro Il LD-Series Light Towers by Allmand
$54.08
24
105396 Engine D1005 Nrtc/Nte T4 Kubota for Night-Lite Pro Il LD-Series Light Towers by Allmand
$7,378.24
24
105397 Engine D1105 Nrtc/Nte T4 Kubota for Night-Lite Pro Il LD-Series Light Towers by Allmand
$6,023.45
25
352139 Kubota Box Muffler for Night-Lite Pro Il LD-Series Light Towers by Allmand
$1,071.48
26
103472 #16 Cush Clamp for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
-
103420 Kubota Rcp Radiator Hose Kit for Night-Lite Pro Il LD-Series Light Towers by Allmand
$184.21
-
102911 Rcp Radiator Kit for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
-
108043 Kubota Engine Harness for Night-Lite Pro Il LD-Series Light Towers by Allmand
$215.57
-
105875 Kubota D1005 30Amp Fuse Charge Circuit for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
-
105872 Jcase 30Amp Fuse for Night-Lite Pro Il LD-Series Light Towers by Allmand
$47.48
-
112774 Kubota D1105 40Amp Charge Circuit Fuse for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
-
106309 Jcase 40A Little Fuse for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
-
112776 Kubota D1105 40Amp Engine Harness Schematic for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
-
108044 Kubota D1005 Engine Harness Schematic for Night-Lite Pro Il LD-Series Light Towers by Allmand
Call for Price call for price call for price
View full details

Frequently asked questions

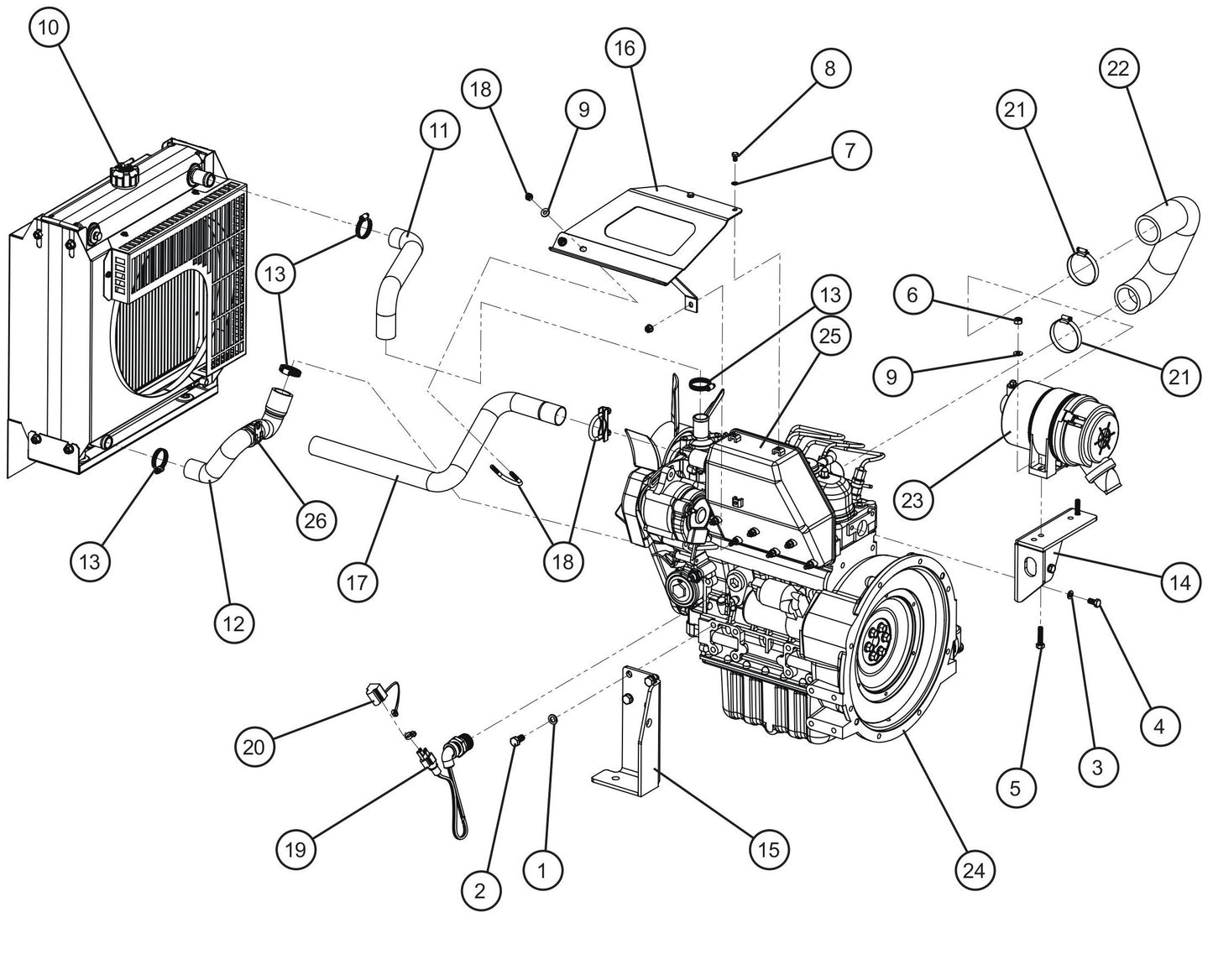

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
