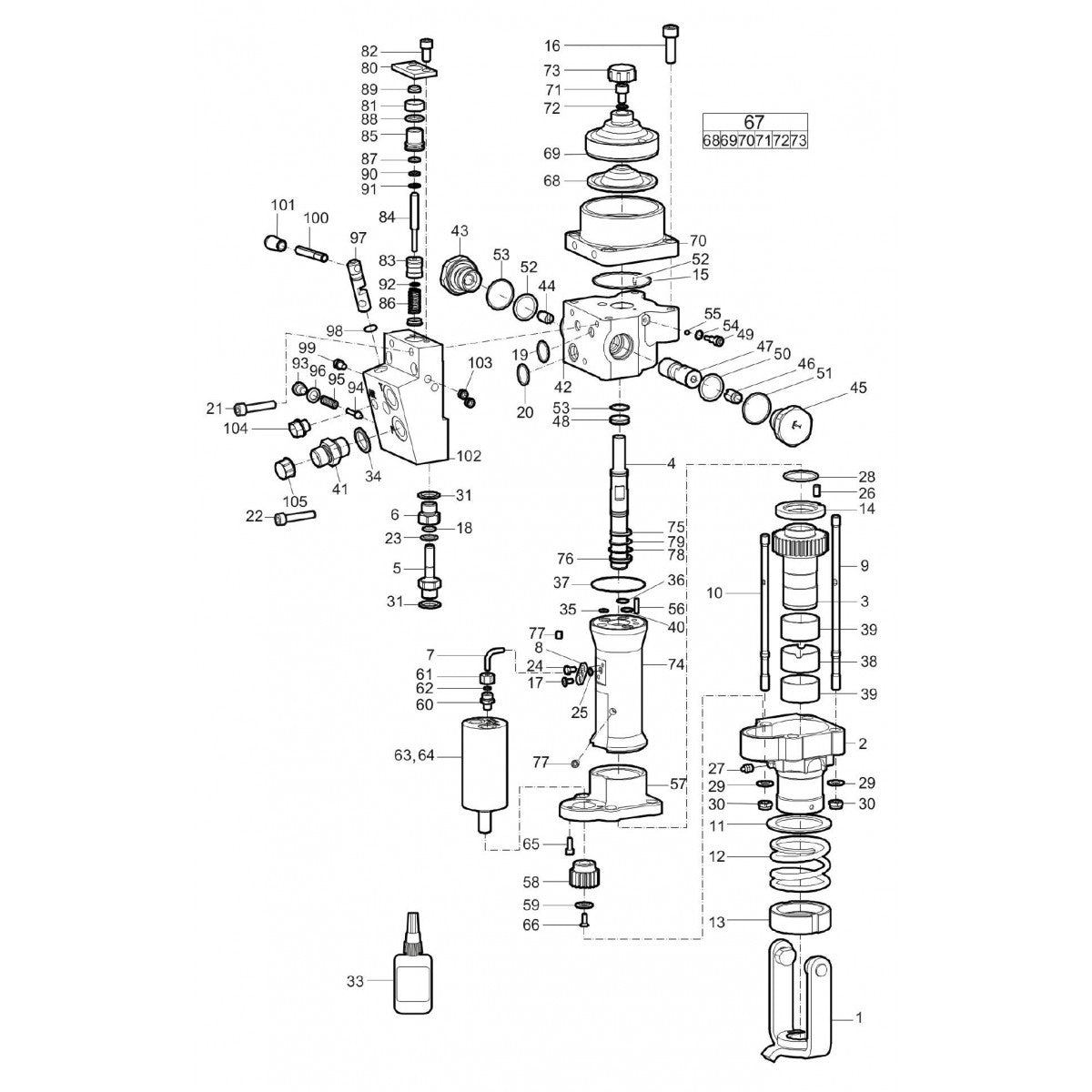

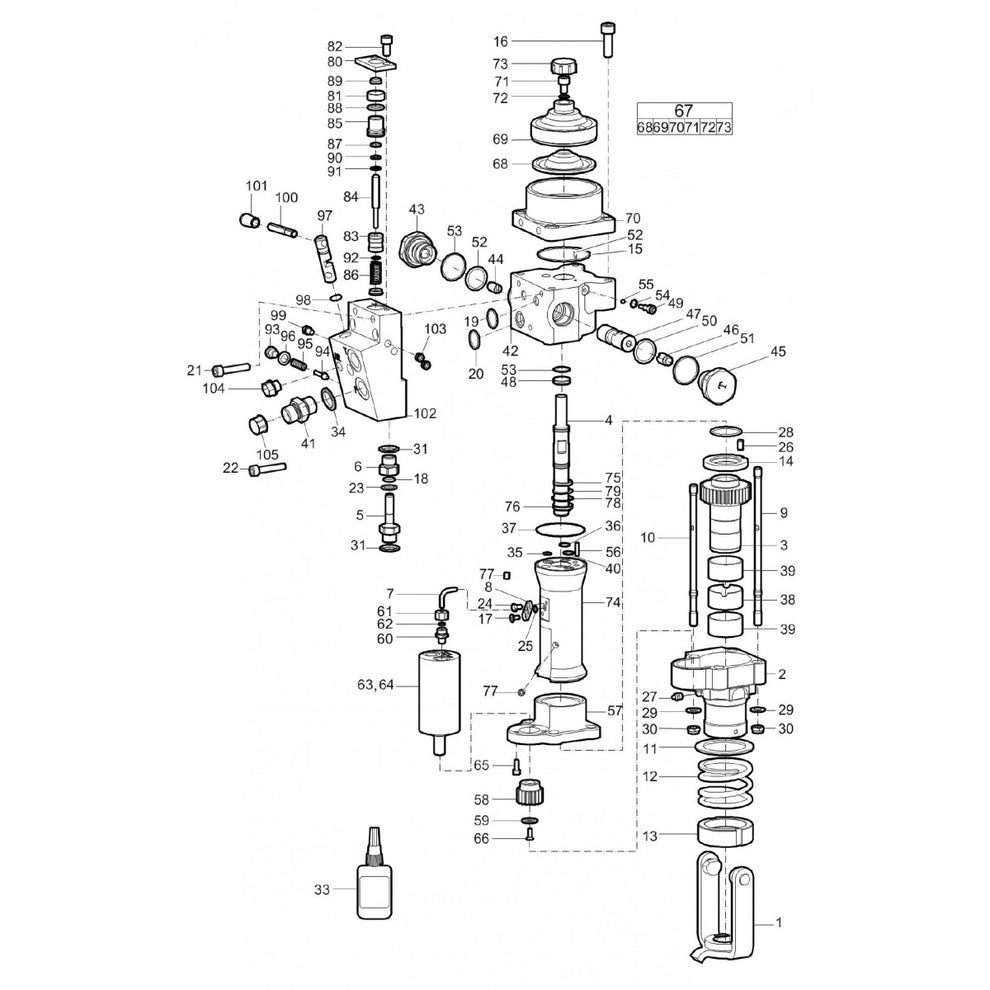

LHD 23 M Hydraulic Drill Parts By Atlas Copco

LHD 23 M Hydraulic Drill Parts By Atlas Copco

  • LHD 23 M Hydraulic Drill Parts By Atlas Copco
1 1
Ref. Details
1
3371817054 Chisel retainer complete FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$358.54
2
3371817177 Gear flange FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$337.59
3
3371817150 Bushing w/cogging FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$549.33
4
3371817104 Striking piston FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$299.28
5
3371817174 Flange socket FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$100.95
6
3371817175 Pipe holder FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$127.90
7
3371817107 Drain pipe FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$24.14
8
3371817108 Tightening plate FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$65.00
9
3371817109 Stay bolt long FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$196.31
10
3371817110 Stay bolt short FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$134.00
11
3371817145 Washer f/spring FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$83.86
12
3371817146 Spring f/chisel retainer FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$60.83
13
3371817147 Coupling nut f/spring FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$163.54
14
3371817141 Thrust washer FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$130.21
15
3371817700 O-Ring ø60x2 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$3.69
16
0211136300 Screw-M1030 Ganuine Part by Atlas Copco
$3.69
17
0216124400 Screw Ganuine Part by Atlas Copco
Call for Price
call for price
18
3371817755 O-Ring ø9.13x2.62 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$3.69
19
3371817701 O-Ring ø20x2 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
20
3371817702 O-Ring ø16x2 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
21
3377000477 Blank Ganuine Part by Atlas Copco
Call for Price
call for price
22
3371817765 Screw Ganuine Part by Atlas Copco
Call for Price
call for price
23
3371817756 Back-up ring 10x14 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$12.21
24
3371817724 Screw Ganuine Part by Atlas Copco
$2.49
25
3371817757 O-Ring ø6x2 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
62
3371817757 O-Ring ø6x2 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
26
3371817739 Cylinder pin 8x14 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$26.11
27
3371816708 Grease nipple 1/8" RG FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$3.69
28
3371817704 O-Ring ø40x3 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
29
3371817718 Washer Ganuine Part by Atlas Copco
Call for Price
call for price
30
3371817714 Nut MF14x1.5 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$3.69
31
0661100040 Seal Ring Ganuine Part by Atlas Copco
$11.88
32
3371817725 Screw-M6x12 Ganuine Part by Atlas Copco
Call for Price
call for price
33
3371807737 Loctite 648-1.7 OZ Ganuine Part by Atlas Copco
Call for Price
call for price
34
0661100039 Seal Gasket Ganuine Part by Atlas Copco
Call for Price
call for price
35
3371817768 Washer Ganuine Part by Atlas Copco
Call for Price
call for price
36
3371814750 O-Ring ø12x1.5 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$3.69
37
3371814751 O-Ring ø69x1.5 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
38
3371817179 Ina ring IR ø45/50x25 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$140.54
39
3371817763 Ring Ganuine Part by Atlas Copco
Call for Price
call for price
40
3371814749 O-Ring ø13x1.5 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
41
0603420010 Nipple Ganuine Part by Atlas Copco
Call for Price
call for price
42
3371817115 Valve housing FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$997.54
43
3371814114 Guide socket P FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$115.34
44
3371814113 Auxiliary spool P FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$67.10
45
3371814116 Guide socket T FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$115.34
46
3371814115 Auxiliary spool T FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$67.10
47
3371814112 Spool FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$140.09
48
3371817154 Sealing washer FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$37.74
49
3371817155 Screw f/check valve FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$19.26
50
0663212700 O-Ring Ganuine Part by Atlas Copco
Call for Price
call for price
51
3371814710 O-Ring ø33x2 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
52
3371814736 Blind nut ø3 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$14.24
53
3371817705 O-Ring ø21x2 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
54
3371817712 Seal ring ø7/ø10x1 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$3.69
55
3371817748 Ball-Steel Ganuine Part by Atlas Copco
$2.49
56
3371817741 Roll pin Ganuine Part by Atlas Copco
$2.49
57
3371817133 Motor flange FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$247.41
58
3371817135 Gear wheel FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$192.19
59
3371817136 Back-up washer FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$29.36
60
3371817148 Packing gland FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$109.04
61
3371817149 Coupling nut FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
Call for Price
call for price
63
3371817746 Hydraulic motor FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$1,251.71
64
3371817205 Hydraulic motor CC FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$1,107.04
65
0211124600 Blank Ganuine Part by Atlas Copco
Call for Price
call for price
66
0216124600 Screw Ganuine Part by Atlas Copco
Call for Price
call for price
67
3371817002 Accumulator complete FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$429.99
68
3371814052 Diaphragm FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$57.25
69
3371814102 Accumulator cover FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$146.45
70
3371817111 Accumulator Body Ganuine Part by Atlas Copco
Call for Price
call for price
71
3371813103 Charging screw FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$7.25
72
3371814709 Seal Ring Ganuine Part by Atlas Copco
$6.06
73
3371813710 Protective cap M24x1.5 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
74
3371817102 Cylinder FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$1,016.89
75
3371814172 Seal ø28/ø36x5.7 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$19.01
76
0665910091 Wiper Ganuine Part by Atlas Copco
$14.25
77
0686612600 Fitting Ganuine Part by Atlas Copco
Call for Price
call for price
103
0686612600 Fitting Ganuine Part by Atlas Copco
Call for Price
call for price
78
3371814754 Locking ring ø38 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
79
3371814169 Back-up washer 28.7x38x2 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$12.05
80
3371817186 Plate f/trigger FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$58.73
81
3371817187 Space pipe f/trigger FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$24.14
82
3377121508 Screw-M8x16 Ganuine Part by Atlas Copco
$2.49
83
3371814161 Trigger spool FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$93.38
84
3371815166 Trigger rod FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$24.43
85
3371814120 Packing gland FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$127.90
86
3371814163 Spring f/trigger valve FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$3.69
87
3371814700 O-Ring ø8.3x2.4 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
88
0663212300 O-Ring Ganuine Part by Atlas Copco
Call for Price
call for price
89
3371805503 Seal ø8/ø14x3.5/5 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$9.50
90
3371814701 Back-up ring FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$17.09
91
0335350152 Circlip Ganuine Part by Atlas Copco
Call for Price
call for price
92
0335351602 Circlip Ganuine Part by Atlas Copco
Call for Price
call for price
93
3371817740 FITTING 02 W/SEAL FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$11.88
94
3371817130 Torque limiter FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$35.66
95
3371817131 Spring f/torque limiter FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$7.25
96
3377016125 Seal Ring Ganuine Part by Atlas Copco
$7.28
97
3371817185 Air Valve Ganuine Part by Atlas Copco
Call for Price
call for price
98
3376100008 O-Ring ø10x2 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
99
3371817728 Screw Ganuine Part by Atlas Copco
$7.44
100
3371817767 Roll pin ø8x50 FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$9.50
101
3371817766 Tip ø8 black FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$6.19
102
3371817188 Connecting block FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$551.74
104
3371817742 Plastic plug 1/4" FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$3.69
105
3371813709 PROTECTIVE CAP 1/2" FOR ATLAS COPCO DYNAPAC CHICAGO PNEUMATIC EQUIPMENT
$3.69
