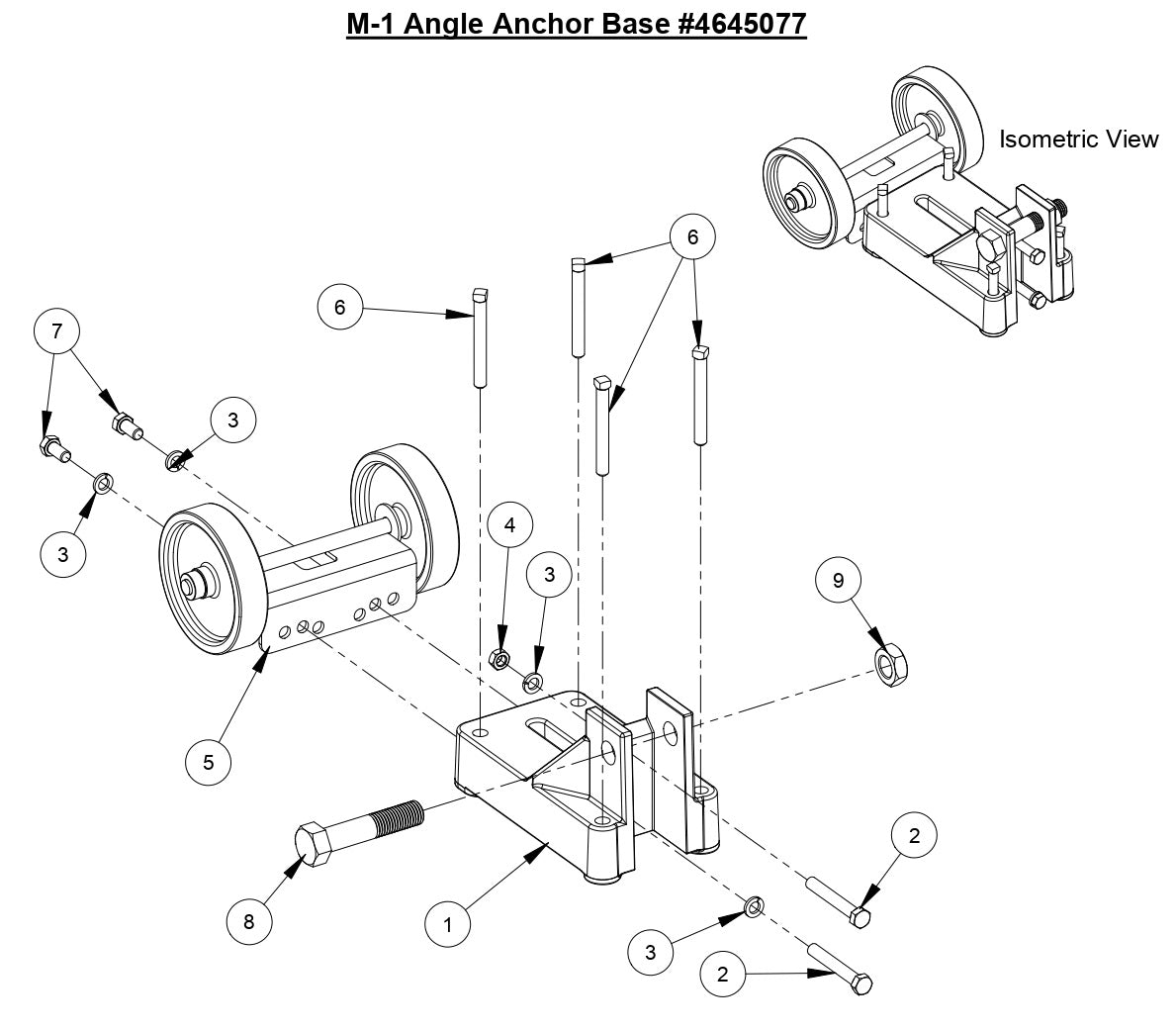

M-1 Angle Anchor Base Assembly Parts

M-1 Angle Anchor Base Assembly Parts

  • M-1 Angle Anchor Base
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4645076 Anchor Base for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$266.31
2
2900080 Cap Screw, Hex Hd., 1/2-13 x 3-1/2" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$8.97
3
2900084 Lock Washer, 1/2" Split for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
4
2900129 Jam Nut, 1/2-13 for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
5
4645046 Wheel Assembly for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$86.09
6
2900027 Set Screw, Sq. Hd., 1/2-13 x 4" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$11.27
7
2900086 Cap Screw, Hex Hd., 1/2-13 x 1" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
8
2900097 Cap Screw, Hex Hd., 1-8 x 4-3/4" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$25.83
9
2900098 Jam Nut, 1-8 for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
View full details
