M-1 Angle Brace Assembly Parts for 42" Mast

M-1 Angle Brace Assembly Parts for 42" Mast

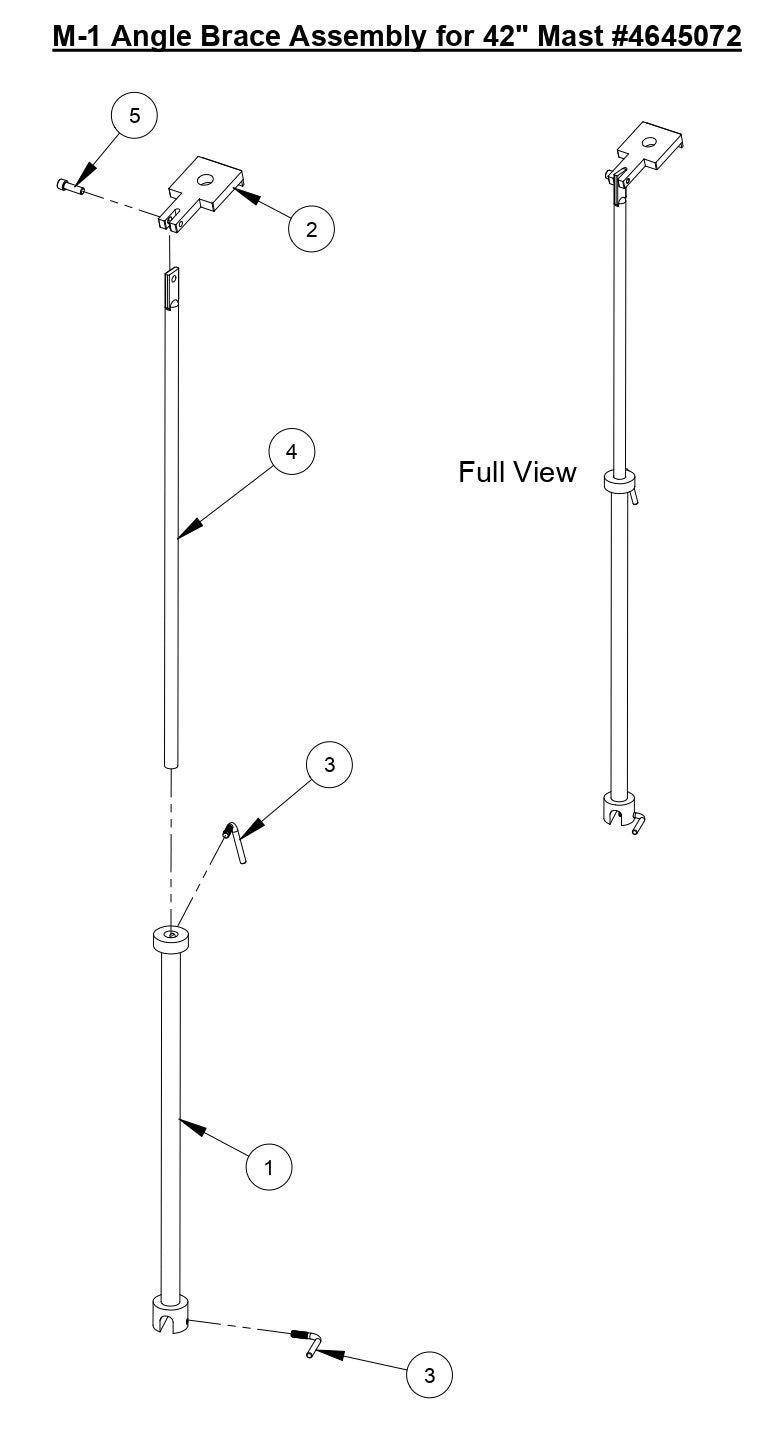

  • M-1 Angle Brace Assembly for 42" Mast
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4645105 Lower Brace for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$82.25
2
4645080 Angle Mast Bracket for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$109.00
3
2900095 L-Bolt, 5/16-18 for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$45.20
4
4645061 Upper Brace for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$63.96
5
2900103 Cap Screw, Soc. Hd., 5/16-18 x 1" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.
