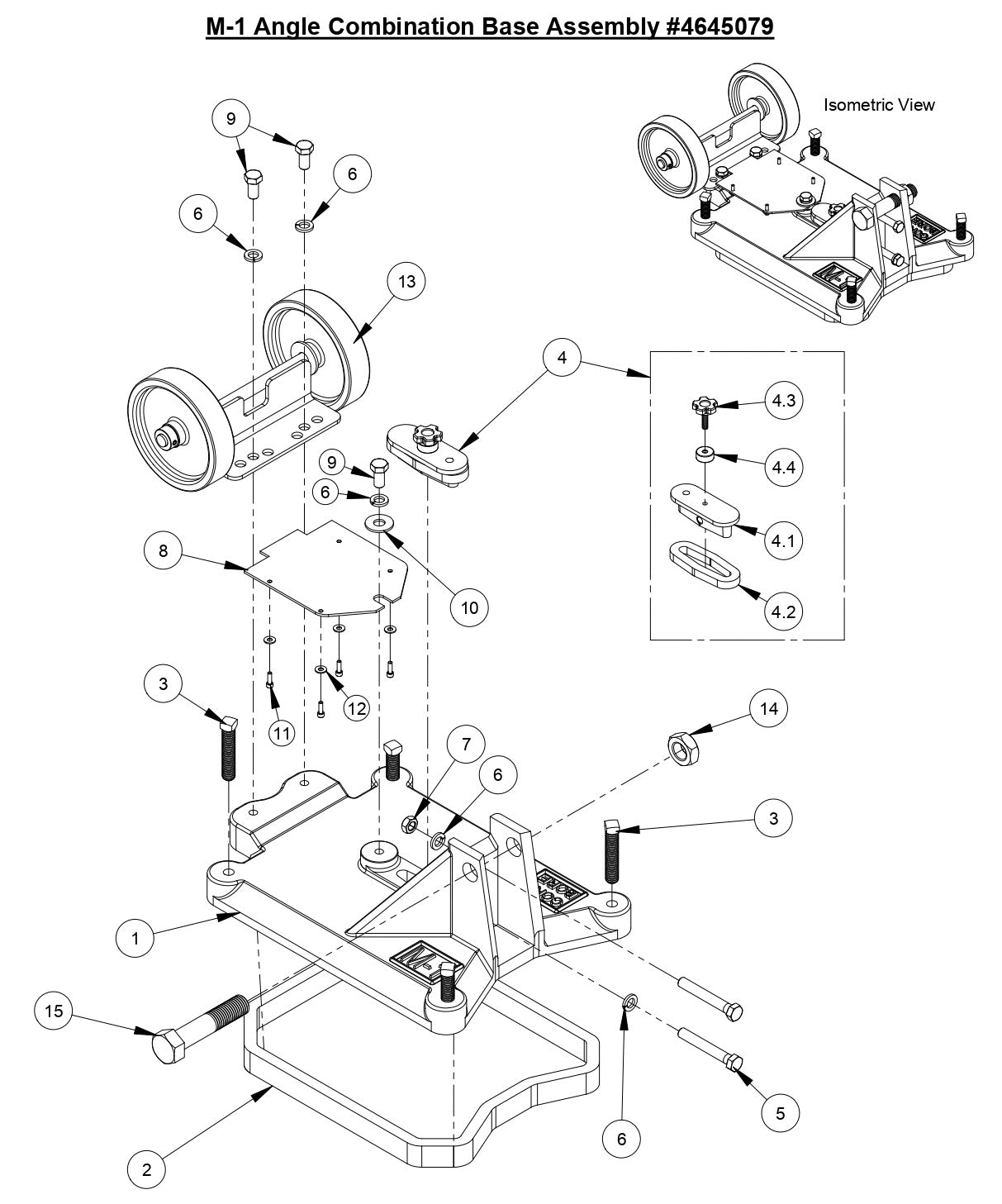

M-1 Angle Combination Base Assembly Parts

M-1 Angle Combination Base Assembly Parts

  • M-1 Angle Combination Base Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4645074 Combination Base for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$325.71
2
4645020 Vacuum Gasket for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$115.00
3
2900081 Set Screw, Sq. Hd., 5/8-11 x 3" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$10.45
4
4600046 Slot Cap Assembly for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$54.88
4.1
4600004 Slot Cap with Balls for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$45.22
4.2
2400003 Slot Cap Gasket for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$10.19
4.3
2400130 Slot Cap Knob for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$10.00
4.4
2400169 Knob Gasket for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$9.52
5
2900080 Cap Screw, Hex Hd., 1/2-13 x 3-1/2" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$8.97
6
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900129 Jam Nut, 1/2-13 for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
8
4645022 Vacuum Platform for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$19.37
9
2900086 Cap Screw, Hex Hd., 1/2-13 x 1" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
10
2900127 Flat Washer, 1/2" USS for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
11
2900087 Cap Screw, Soc. Hd., #10-32 x 5/8" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
12
2900016 Flat Washer #10 USS for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
4645046 Wheel Assembly for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$86.09
14
2900098 Jam Nut, 1-8 for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
15
2900097 Cap Screw, Hex Hd., 1-8 x 4-3/4" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$25.83
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
