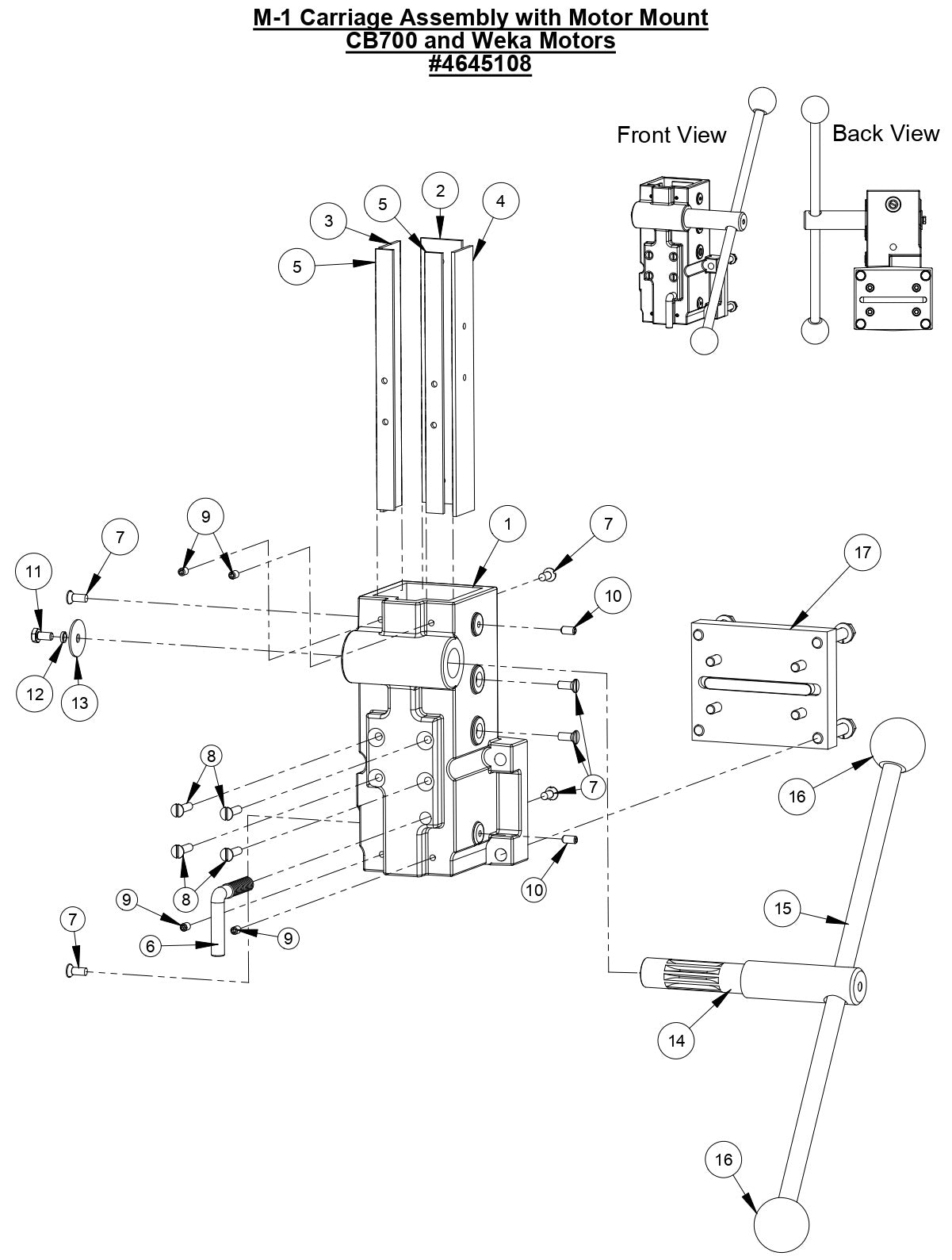

M-1 Carriage Assembly with Motor Mount CB700 and Weka Motors Parts

M-1 Carriage Assembly with Motor Mount CB700 and Weka Motors Parts

  • M-1 Carriage Assembly with Motor Mount CB700 and Weka Motors
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4645018 M-1 Carriage Only for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$184.14
2
4645003 Non-adjusting Shim 1/8" x 1-1/2" x 9" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$58.30
3
4645027 Non-adjusting Shim 1/8" x 1-1/2" x 9" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$58.30
4
4645008 Adjusting Shim 1/8" x 1-1/2" x 9" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$58.30
5
4645007 Adjusting Shim 1/8" x 5/8" x 8-7/8" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$21.30
6
2900078 "L"-Bolt, 1/2-13 for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$14.88
7
2900074 Cap Screw, Flat Hd., 1/4-20 x 5/8" Brass for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$5.99
8
2900075 Cap Screw, Flat Hd., 1/4-20 x 1" Brass for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$4.99
9
2900101 Set Screw, Soc. Hd., 1/4-20 x 3/8" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
10
2900076 Set Screw, Soc. Hd., 1/4-20 x 1/2" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
11
2900082 Cap Screw, Hex Hd., 1/4-20 x 1/2" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
12
2900404 Lock Washer, 1/4" Split High Collar for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
13
2900083 Fender Washer, 1/4" x 1-1/4" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
14
4645012 M-1 Pinion Gear for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$76.87
15
4645013 M-1 Handle 5/8" Diameter x 18" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$26.99
16
2400001 Handle Knob for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$8.33
17
4648031 Motor Mount Assembly for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$118.00
