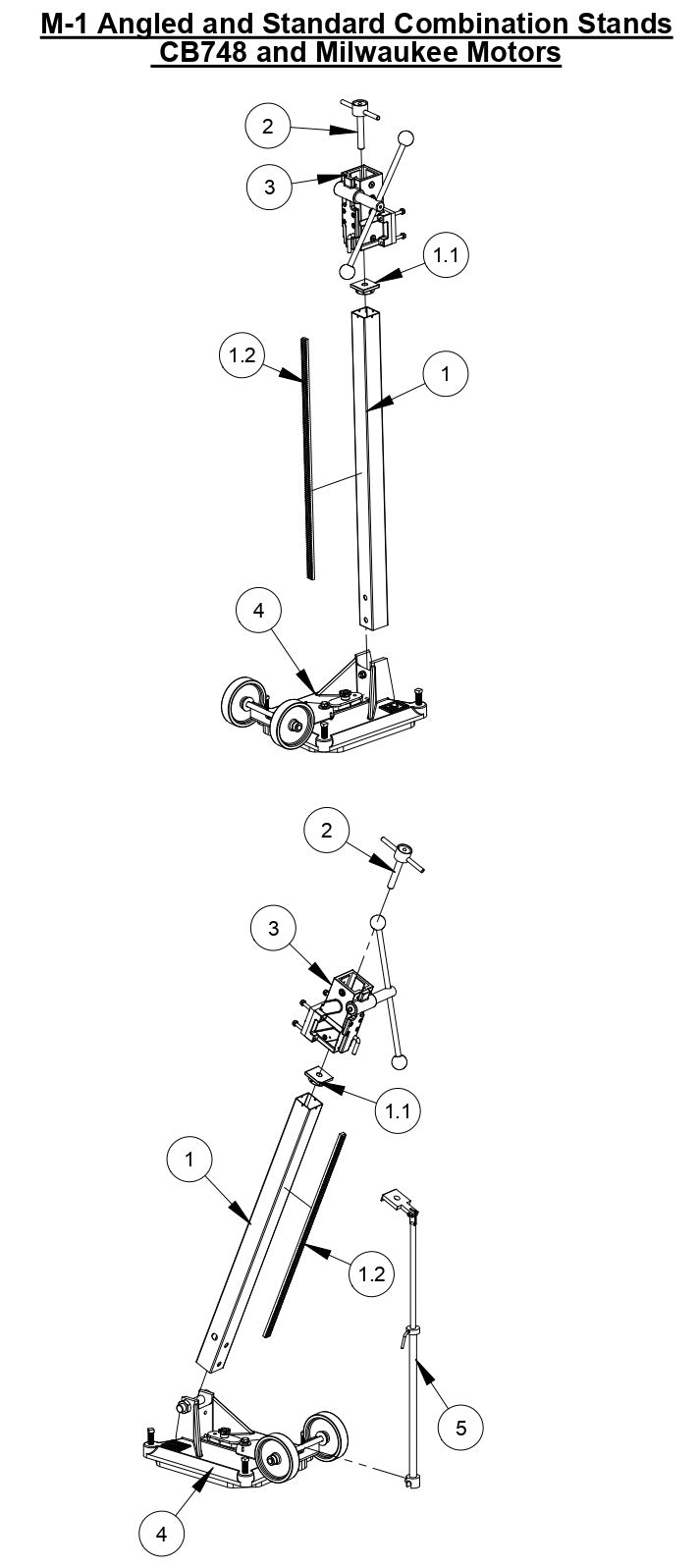

M-1 Combination Stand Parts

M-1 Combination Stand Parts

  • M-1 Combination Stand
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4645015 Mast - 42" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$309.60
1.1
4645073 Mast Top with Pins for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$29.07
1.2
2400053 Gear Rack - 32" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$59.97
2
4645016 Ceiling Jack for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$101.00
3
4645044 Carriage Assembly for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$466.29
4
4245070 Combination Base Assembly for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$513.81
View full details
