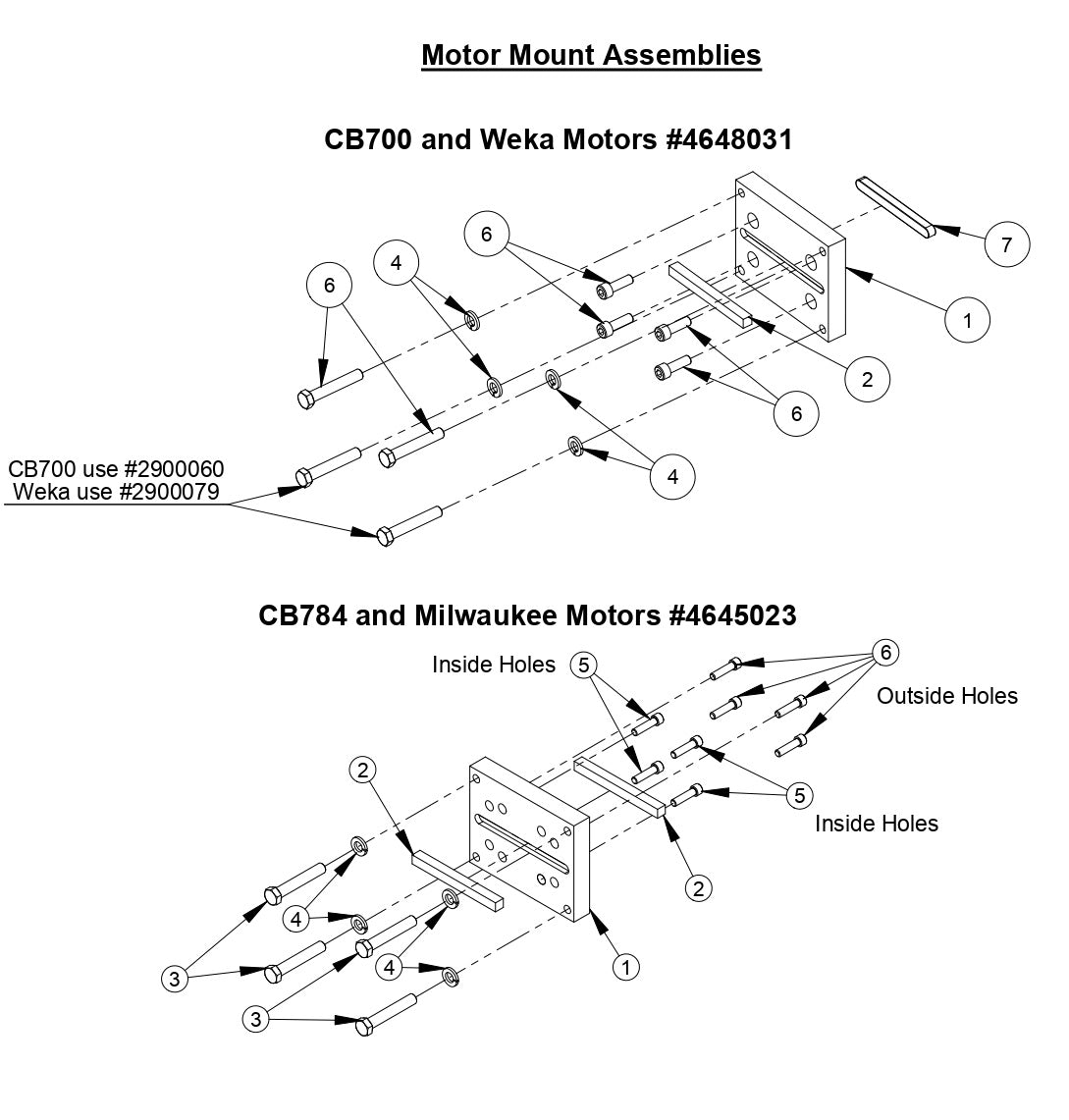

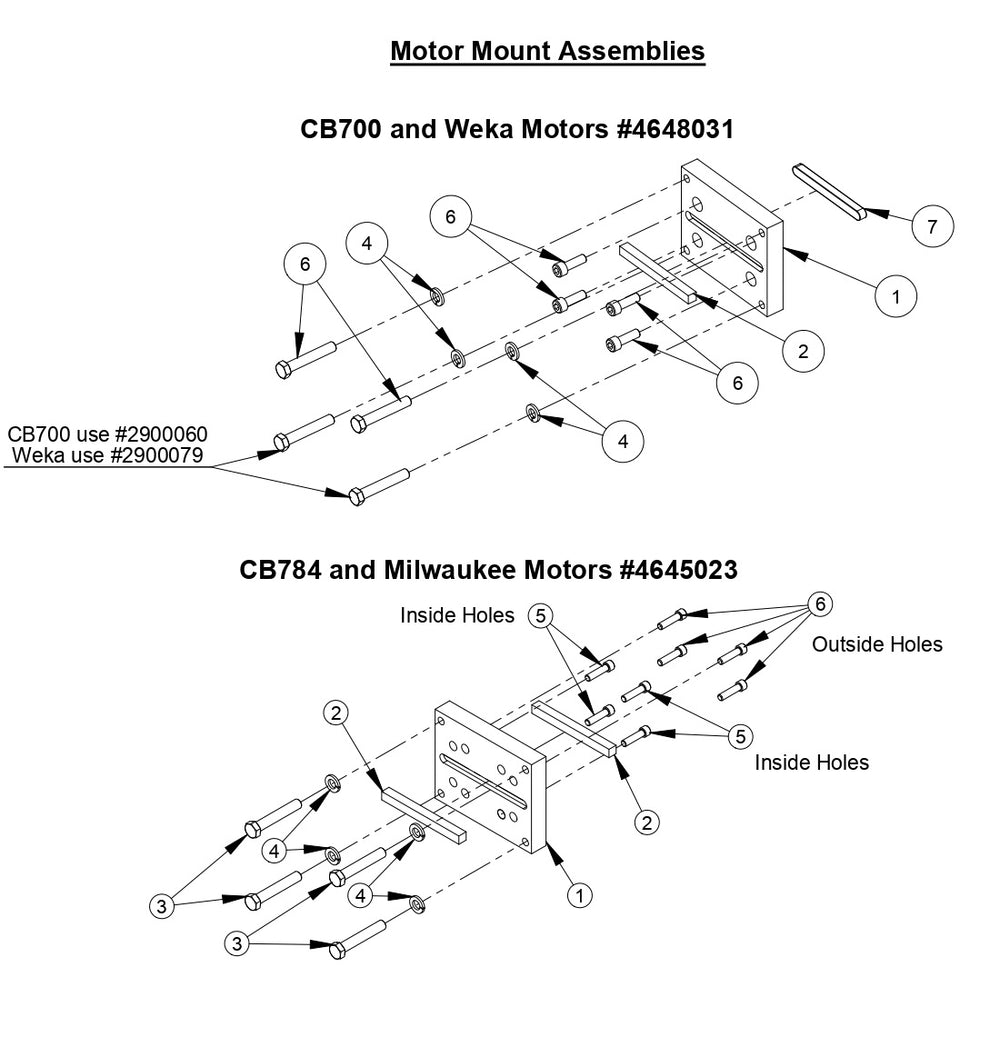

M-1 Motor Mount Assemblies (CB784 and Mikwaukee Motors) Parts

M-1 Motor Mount Assemblies (CB784 and Mikwaukee Motors) Parts

  • M-1 Motor Mount Assemblies (CB784 and Mikwaukee Motors)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4645010 Motor Mount Plate for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$48.92
2
4645006 Key, 3/8" Sq. x 4" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$8.30
3
2900079 Cap Screw, Hex Hd., 3/8-16 x 2-1/4" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
4
2900006 Lock Washer, 3/8" Split for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
5
2900089 Cap Screw, Soc. Hd., 1/4-28 x 1" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
6
2900088 Cap Screw, Soc. Hd., 1/4-20 x 1" for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
