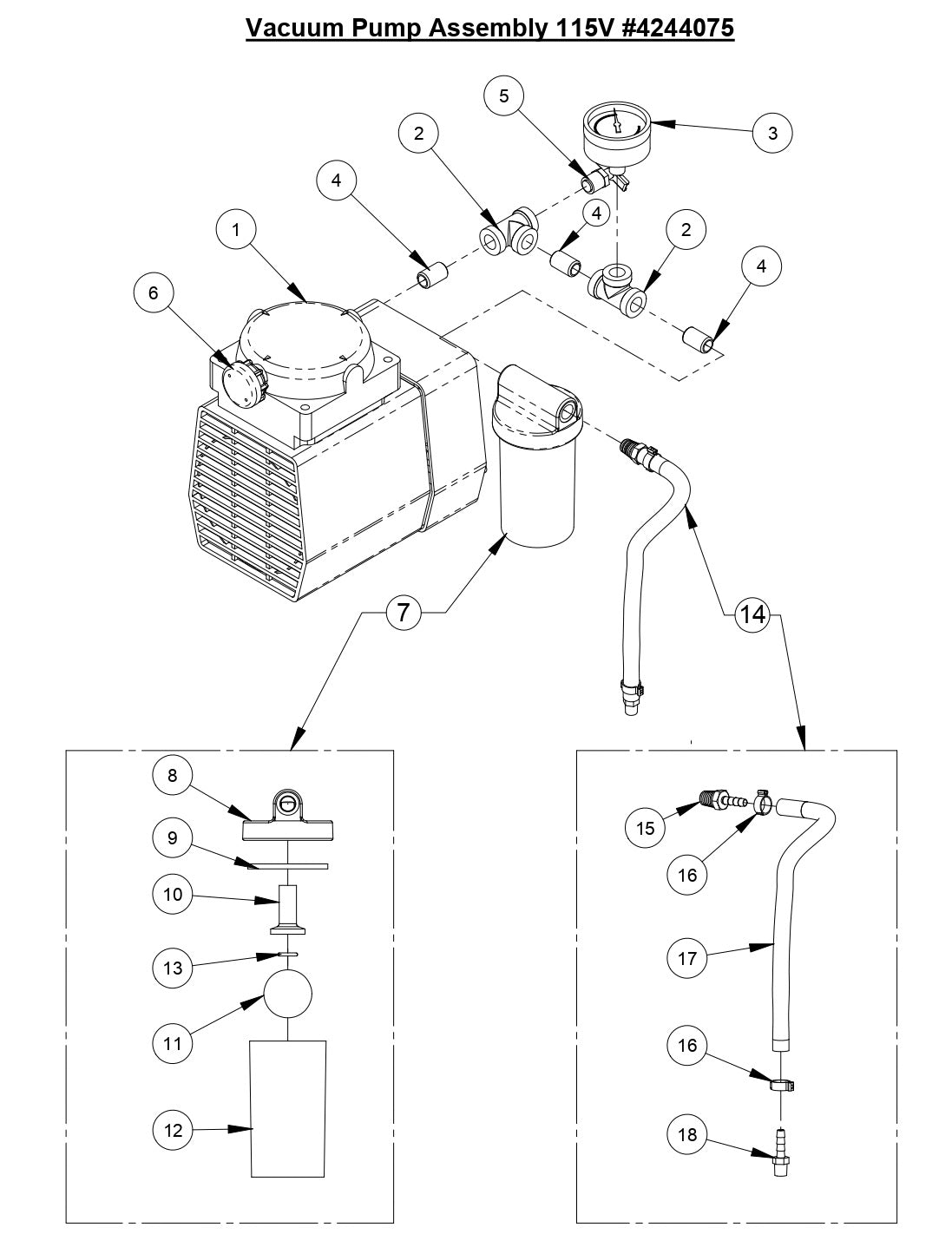

M-1 Vaccum Pump Assembly 115 V Parts

M-1 Vaccum Pump Assembly 115 V Parts

  • M-1 Vaccum Pump Assembly 115 V
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600016 Vacuum Pump, 115 Volt with Water Jar for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$598.95
2
3200010 Pipe Tee, 1/4" FPT for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$15.07
3
2700164 Gauge, Vacuum for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$52.44
4
3200007 Close Nipple, 1/4 NPT for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$18.10
5
3200035 Petcock, 1/4" NPT for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$12.00
6
2700168 Muffler for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$73.29
7
2700171 Water Jar Assembly for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$190.08
8
2700014 Water Jar Lid for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$124.74
9
2700017 Water Jar Gasket for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$16.01
10
2700015 Funnel Fitting for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$46.92
11
2700172 Float Ball for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$17.58
12
2700170 Water Trap Jar for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$42.70
13
2700016 NLA O-Ring for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
Call for Price call for price call for price
14
4699490 Hose Assembly for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$32.09
15
3200019 Fitting, 1/4" M. Pipe to 1/4" Hose Barb for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$8.08
16
3200017 Clamp, Pinch On for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
17
4699430 Air Hose for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$6.04
18
3200018 Fitting, 1/8" M. Pipe to 1/4" Hose Barb for M-1 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$10.86
View full details
