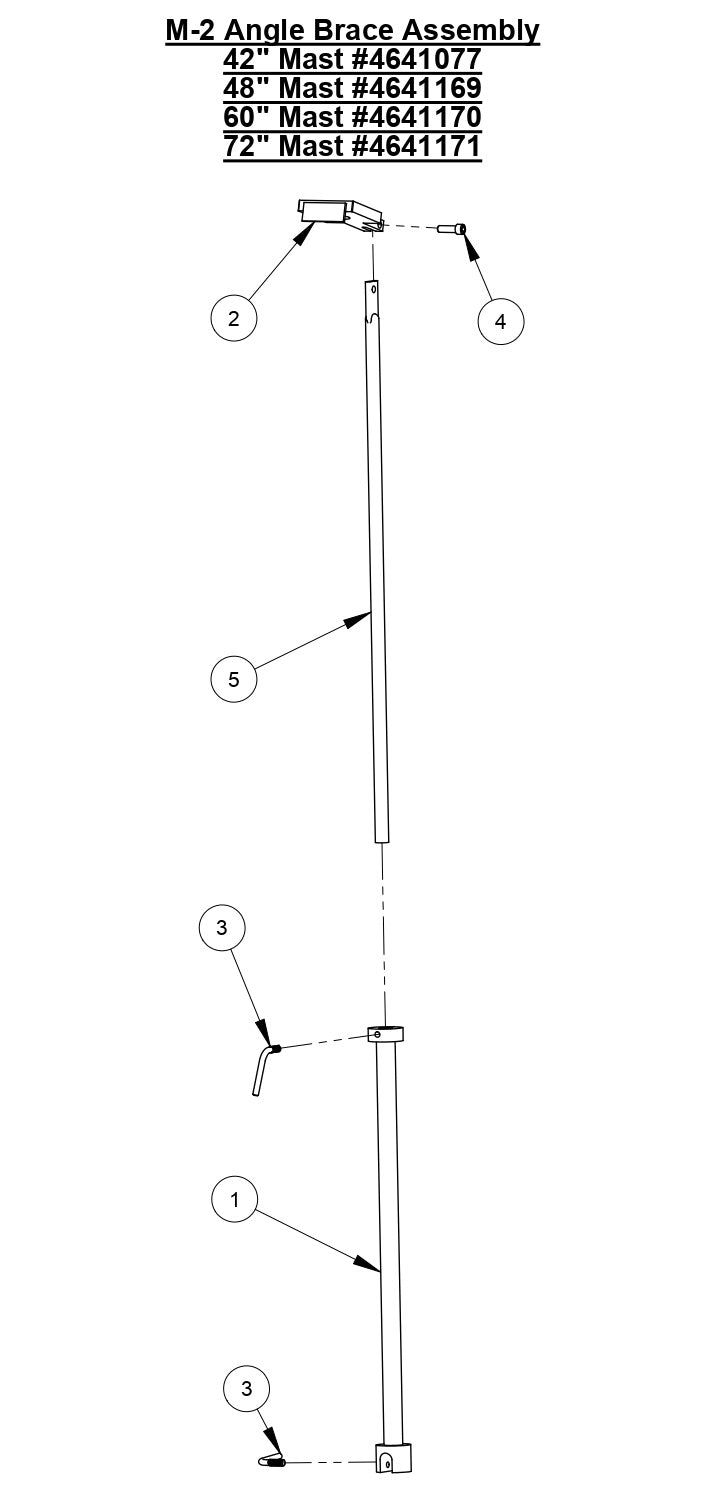

M-2 Angle Brace Assembly Parts

M-2 Angle Brace Assembly Parts

  • M-2 Angle Brace Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4645105 Lower Brace for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$82.25
2
4641069 Angle Mast Bracket for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$111.00
3
2900095 L-Bolt, 5/16-18 for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$45.20
4
2900103 Cap Screw, Soc. Hd., 5/16-18 x 1" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
5
4645061 Upper Brace - for 42" Mast for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$63.96
6
4645060 Upper Brace - for 48" Mast for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$67.67
7
4645059 Upper Brace - for 60" Mast for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$79.61
8
4645058 Upper Brace - for 72" Mast for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$89.98
