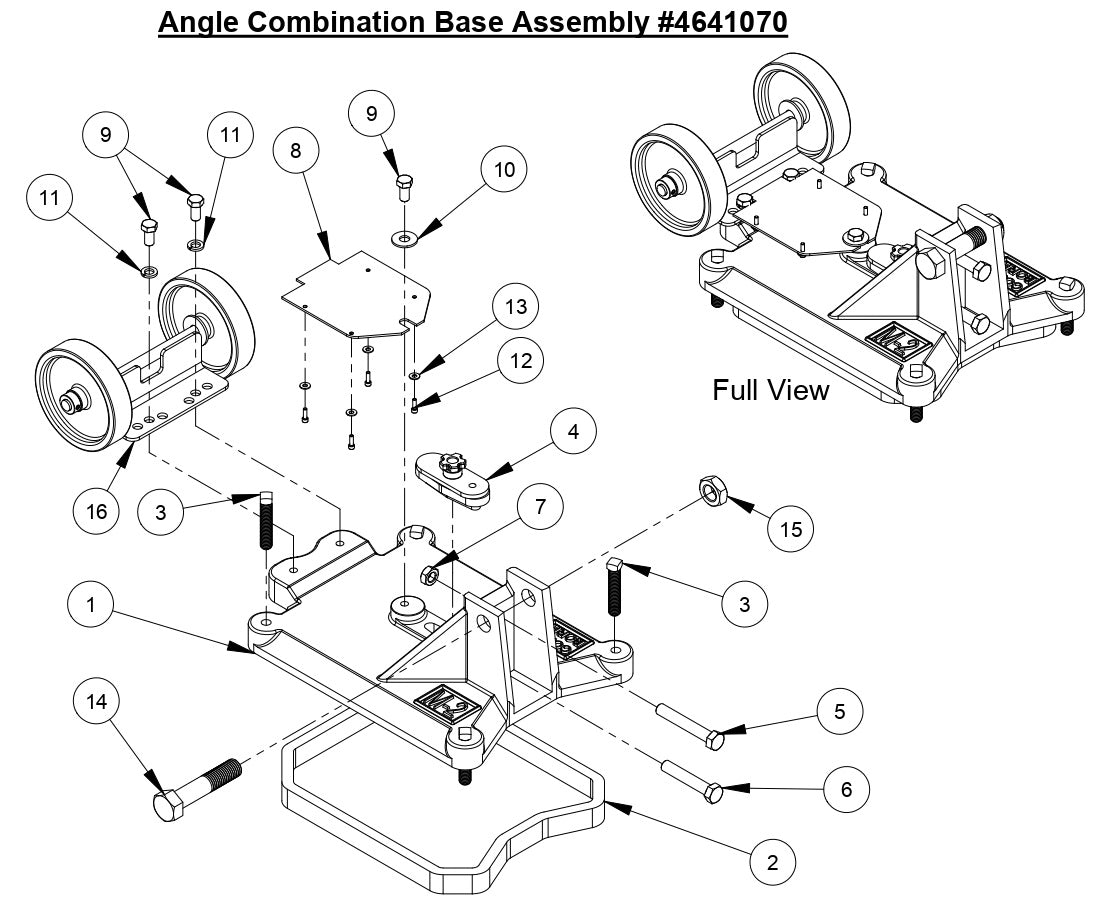

M-2 Angle Combination Base Assembly Parts

M-2 Angle Combination Base Assembly Parts

  • M-2 Angle Combination Base Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4641075 M-2 Combination Base for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$352.44
2
4641024 M-2 Vacuum Gasket for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$44.50
3
2900081 Set Screw, Sq. Hd., 5/8-11 x 3" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$10.45
4
4600046 Slot Cap Assembly for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$54.88
5
2900146 Cap Screw, Hex Hd., 5/8-11 x 4" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$15.86
6
2900099 Cap Screw, Hex Hd., 5/8-11 x 3-1/2" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$6.96
7
2900256 Jam Nut, 5/8-11 for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
8
4645022 Vacuum Platform for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$19.37
9
2900086 Cap Screw, Hex Hd., 1/2-13 x 1" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
10
2900127 Flat Washer, 1/2" USS for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
11
2900084 Lock Washer, 1/2" Split for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
12
2900087 Cap Screw, Soc. Hd., #10-32 x 5/8" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
13
2900016 Flat Washer, #10 USS for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
14
2900097 Cap Screw, Hex Hd., 1-8 x 4-3/4" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$25.83
15
2900098 Jam Nut, 1"-8 for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$6.99
16
4645046 Wheel Assembly for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$86.09
