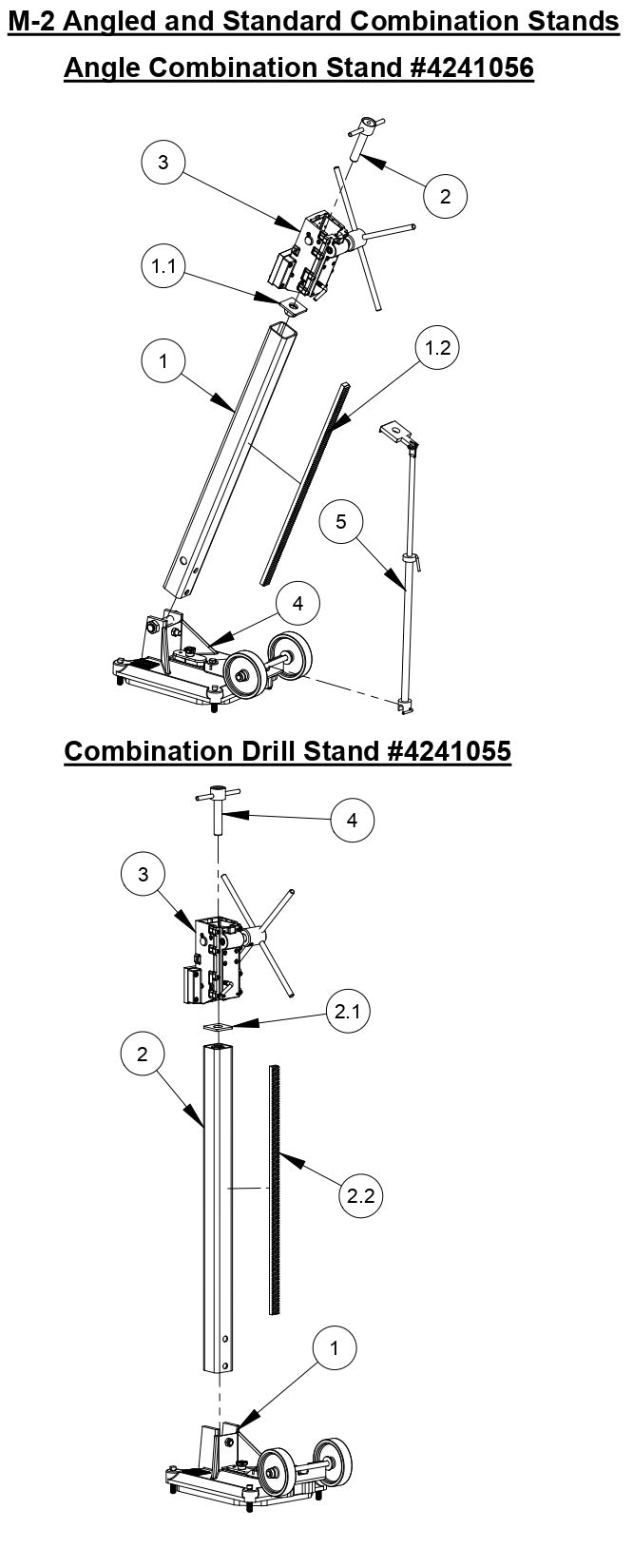

M-2 Angle Combination Stand Parts

M-2 Angle Combination Stand Parts

  • M-2 Angle Combination Stand
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4641068 Angle Mast - 42" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$644.49
1.1
6090482 Plate Mast Top for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$26.90
1.2
2400170 Gear Rack - 32" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$89.96
2
4641001 Ceiling Jack for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$82.86
3*
4641035 Complete Carriage Assembly for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$836.55
4
4641070 Angle Combination Base Assembly for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$605.88
5
4641077 Angle Brace Assembly for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$288.09
View full details
