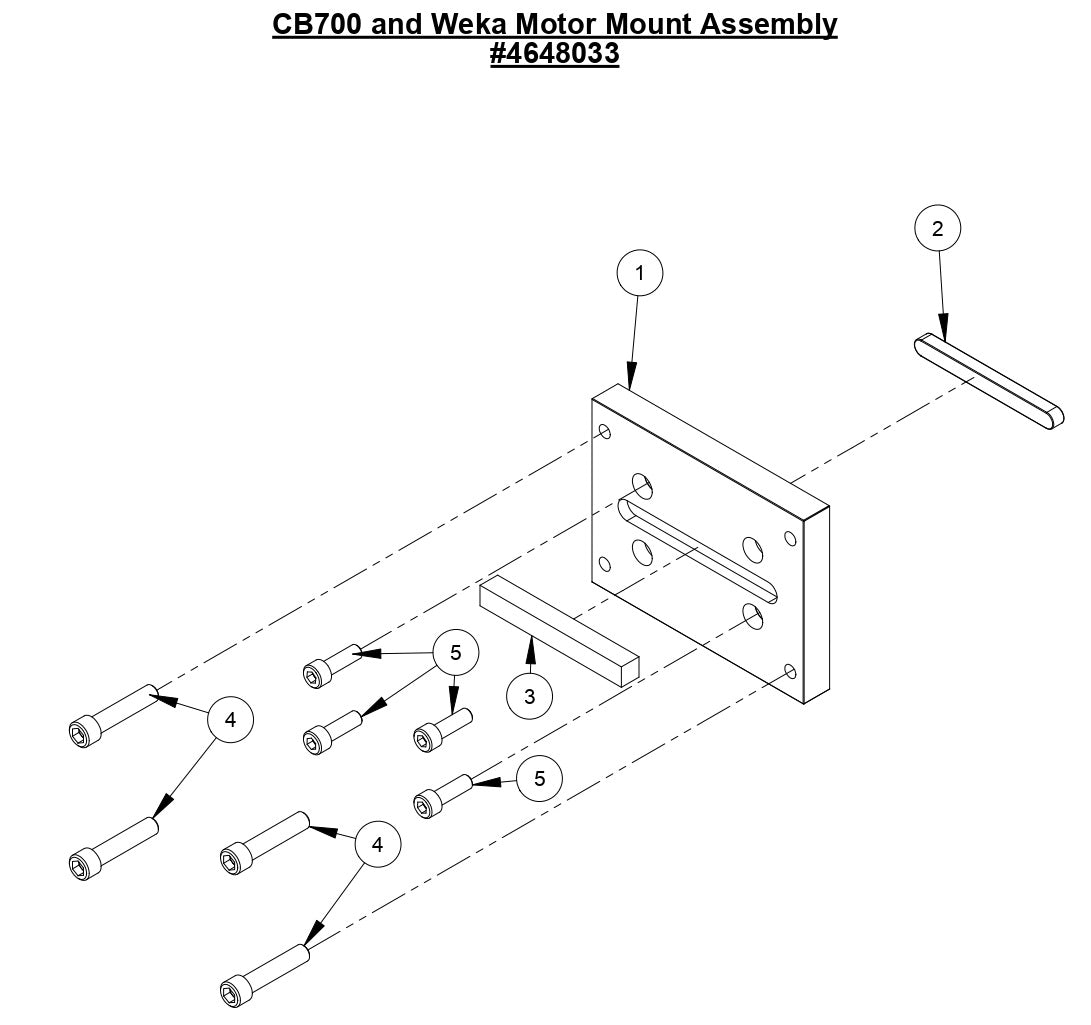

M-2 CB700 and Weka Motor Mount Assembly Parts

M-2 CB700 and Weka Motor Mount Assembly Parts

  • M-2 CB700 and Weka Motor Mount Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4648034 Motor Mount Plate for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$64.57
2
2900263 Parallel Key, 10mm x 8mm x 100mm for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$10.91
3
4641010 Key, 1/2" Sq. x 4" Long for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$8.12
4
2900124 Cap Screw, Soc. Hd., 3/8-16 x 1-3/4" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
5
2900161 Cap Screw, Soc. Hd., M8-1.25 x 25mm for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
View full details
