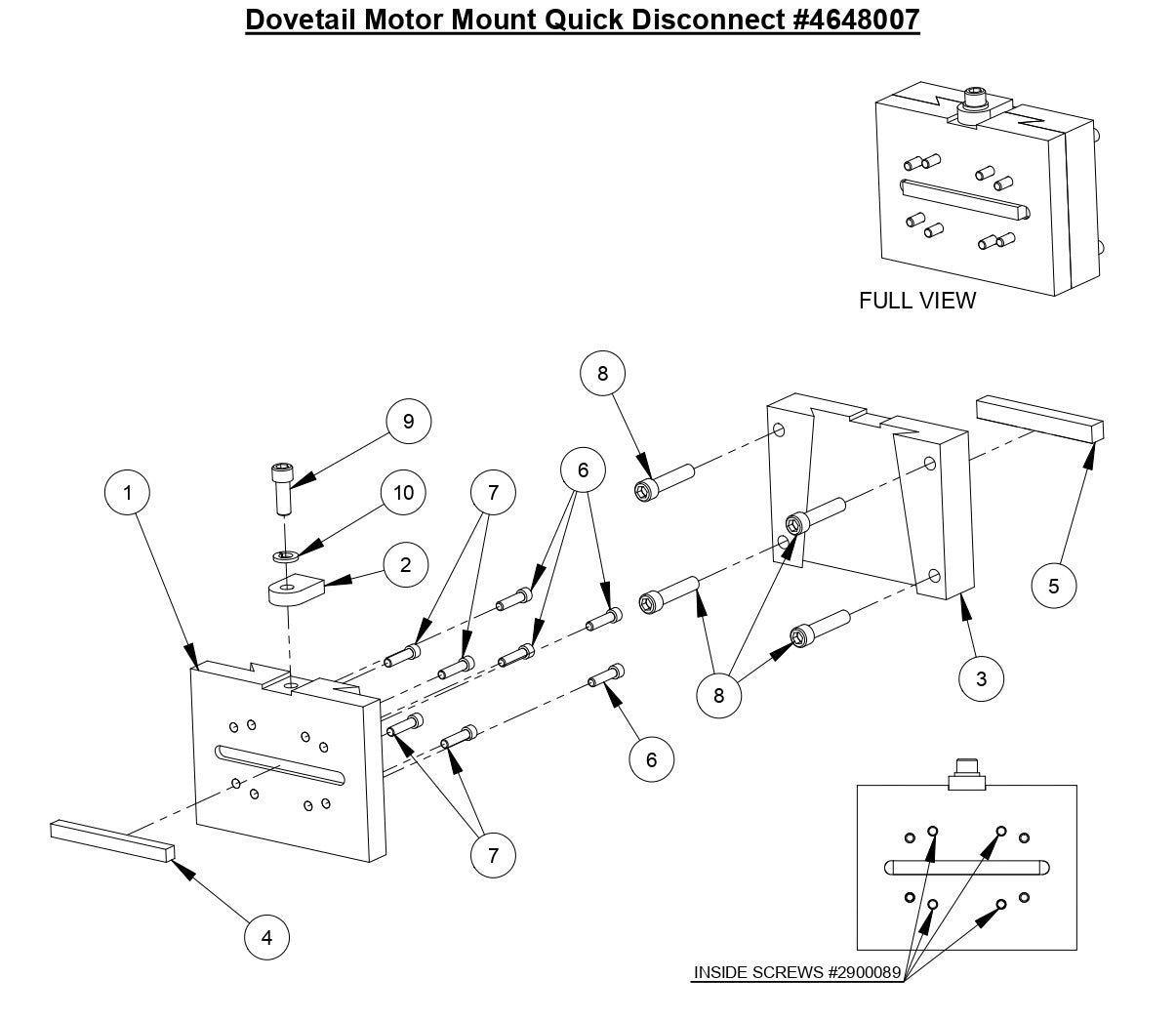

M-2 Dovetail Motor Mount Quick Disconnect Parts

M-2 Dovetail Motor Mount Quick Disconnect Parts

  • M-2 Dovetail Motor Mount Quick Disconnect
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4648005 Motor Mount Plate for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$146.52
2
4648008 Plate Lock for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$37.27
3
4648006 Q.D. Motor Mount Plate - Female for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$124.74
4
4645006 Key, 3/8" Sq. x 4" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$8.30
5
4641010 Key, 1/2" Sq. x 4" Long for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$8.12
6
2900088 Cap Screw, Soc. Hd., 1/4-20 x 1" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
7
2900089 Cap Screw, Soc. Hd., 1/4-28 x1" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
8
2900124 Cap Screw, Soc. Hd., 3/8-16 x 1-3/4" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$3.99
9
2900175 Cap Screw, Soc. Hd., 3/8-16 x 1" for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$4.99
10
2900006 Lock Washer, 3/8" Split for M-2 CORE RIG Core Bore Drilling Rig Core Cut by Diamond Products
$2.99
